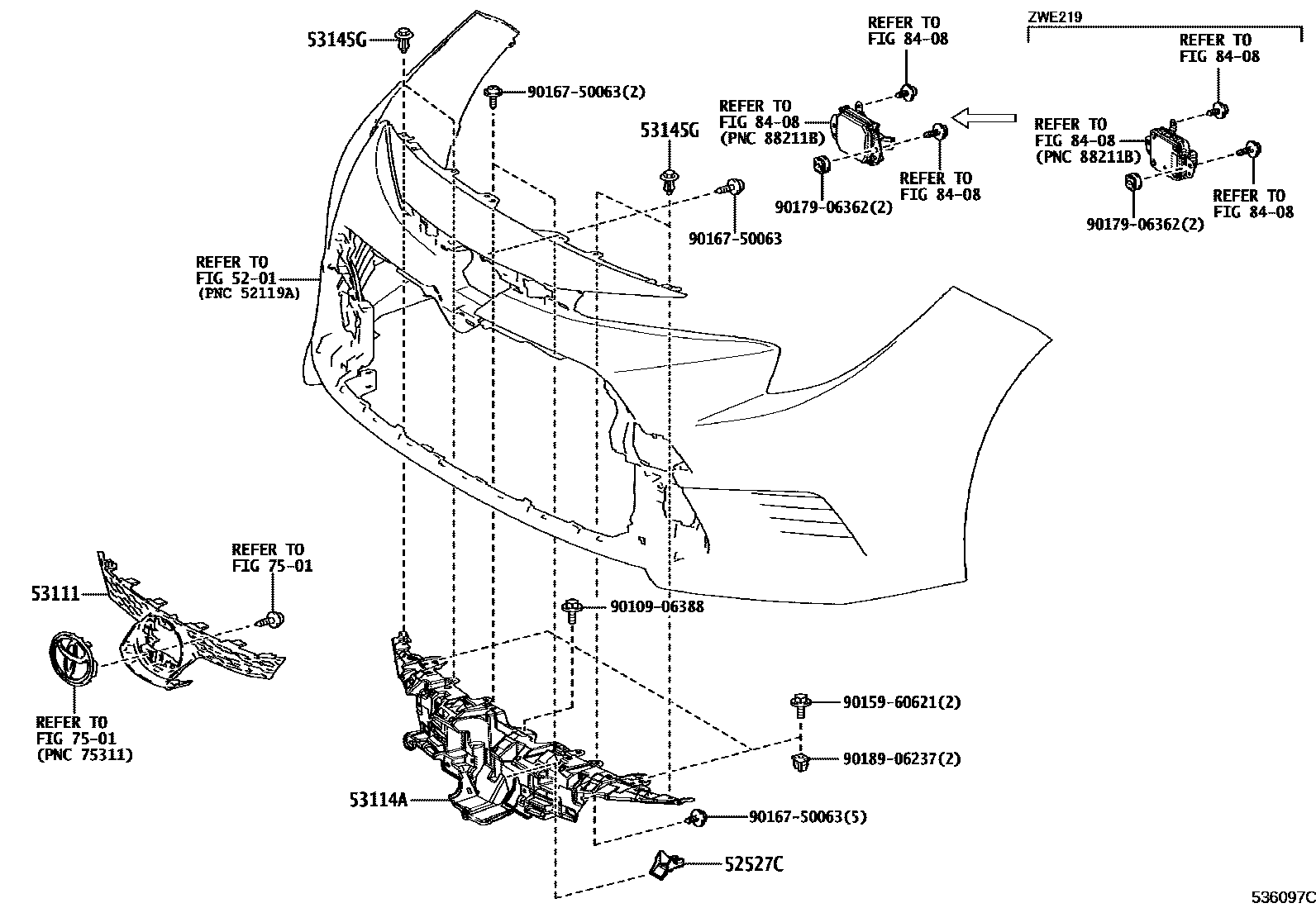

Toyota COROLLA/TOURING — RADIATOR GRILLE

5201

52527CRETAINER, FRONT BUMPER, LOWER NO.2

main52527-12060iZRE212¥510201909-202505

53111GRILLE, RADIATOR

main53111-12E60iZRE212¥6,300201909-202505

NO PAINT REQ.

53114AGRILLE, RADIATOR, INNER

main53114-12240iZRE212¥4,570201909-202505

53145GCLIP, RADIATOR GRILLE

main90467-05063-C0iZRE212201909-202505

BLACK

sub90467-05063¥70

7501

8408

9010906388

main90109-06388¥70

9015960621

main90159-60621¥60

9016750063

main90167-50063¥60

9017906362

main90179-06362¥60

9018906237

main90189-06237¥100

12 parts on this diagram · 1 diagram in section
