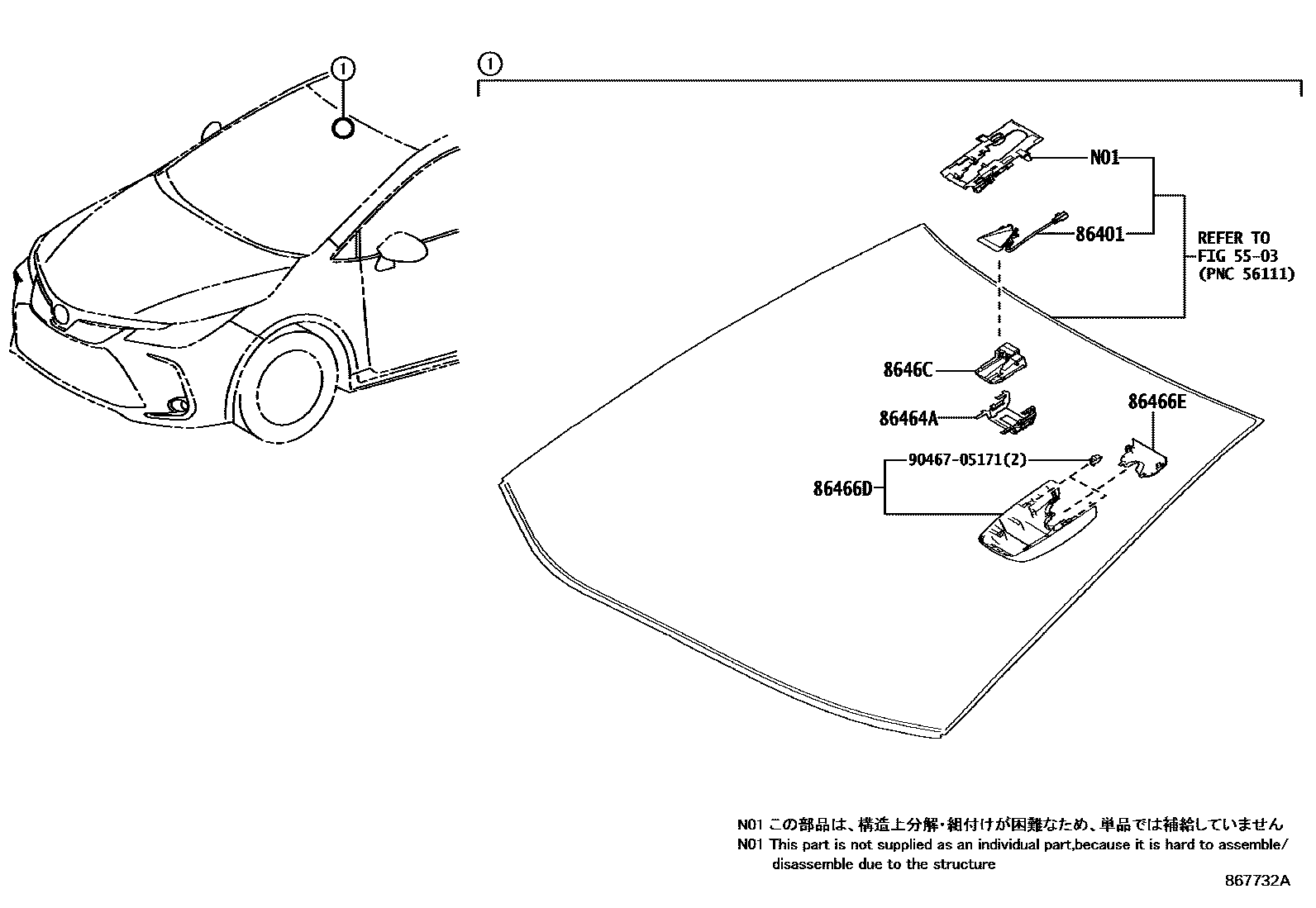

Toyota COROLLA/TOURING — PRE-COLLISION SYSTEM

0001 1 0002 1

5503

86401HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER

main86401-12010iZRE212¥8,600201909-202010

sub86401-12011¥6,400

main86401-12011iZRE212¥6,400202011

86464ALATCH, FORWARD RECOGNITION

main86464-26010iZRE212¥500201909

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-12030iZRE212¥2,410201909

main86466-12050iZWE219¥2,440202210

86466ECOVER, FORWARD RECOGNITION, NO.2

main86466-12040iZRE212¥640201909

main86467-12010iZWE219¥620202210

8646CCAMERA, FORWARD RECOGNITION

main8646C-12030iZRE212¥56,800201909-202010

P/N LABEL=8646C12030

main8646C-12031iZRE212¥39,500202010

P/N LABEL=8646C12031

main8646C-12110iZWE219¥47,300202210-202211

*614

sub8646C-12111¥47,300

main8646C-12111iZWE219¥47,300202212-202404

*614

main8646C-12180iZWE219¥43,000202404-202505

*614

9046705171

main90467-05171¥60

7 parts on this diagram · 2 diagrams in section
