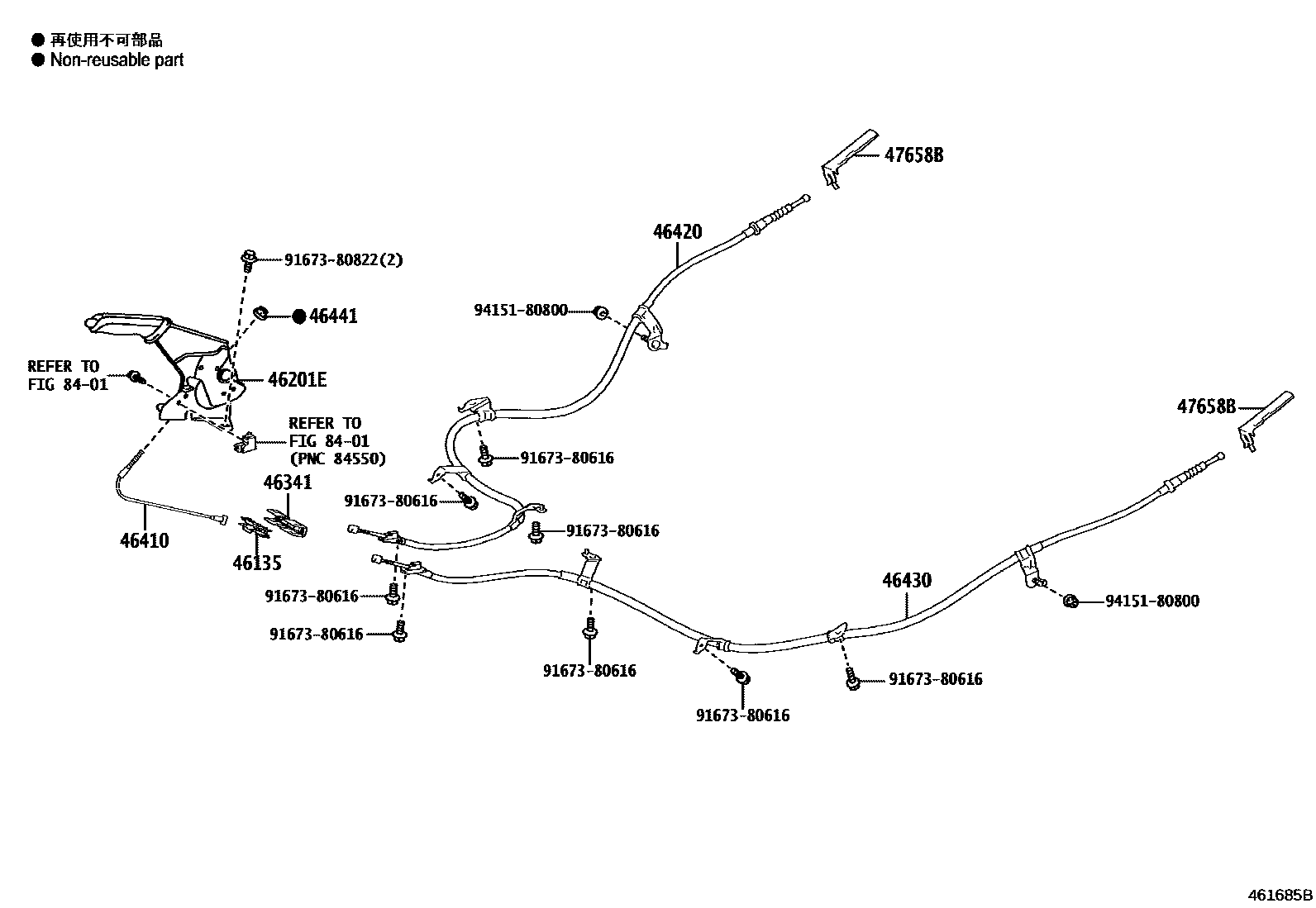

Toyota COROLLA/TOURING — PARKING BRAKE & CABLE

0001 1 0002 1

46135STOPPER, PARKING BRAKE CABLE END

main46135-02100iZRE212201909

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-02590-C0iZRE212201909

BLACK,TRIM2#

46341EQUALIZER, PARKING BRAKE

main46341-02120iZRE212201909

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-02250iZRE212¥1,480201909

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-12860iZRE212¥3,200201909

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-12860iZRE212¥3,200201909

46441NUT, WIRE ADJUSTING, NO.1

main90177-06003iZRE212¥80201909

47658BPROTECTOR, PARKING BRAKE LEVER

main47658-47010iZRE212¥510201909

8401

9167380616

main91673-80616¥60

9167380822

main91673-80822¥80

9415180800

main94151-80800¥80

12 parts on this diagram · 2 diagrams in section
