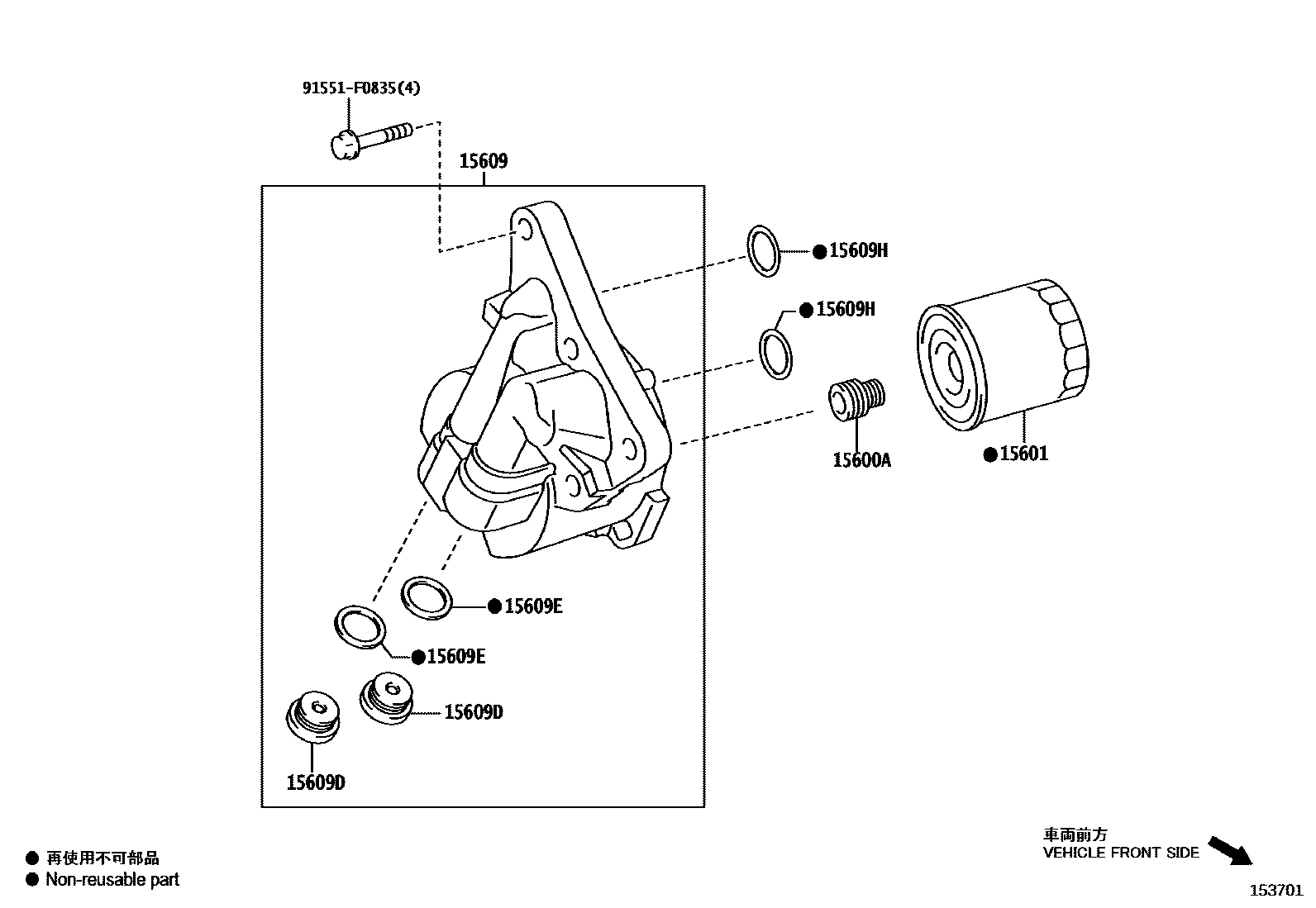

Toyota COROLLA/TOURING — OIL FILTER

0001 1 0002 1

15600AUNION(FOR OIL FILTER)

main90904-04006i2ZRFAE..ZRE212¥450201909

15601FILTER SUB-ASSY, OIL

main90915-10003i2ZRFAE..ZRE212¥1,050201909-202302

sub90915-10009¥1,050

main90915-10009i2ZRFXE..ZWE219¥1,050202303

15609BRACKET SUB-ASSY, OIL FILTER

main15609-37060i2ZRFAE..ZRE212¥7,000201909

main15609-37070i2ZRFXE..ZWE219¥6,700202210

15609DPLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)

main90341-20002i2ZRFAE..ZRE212¥180201909

15609EGASKET, W/HEAD STRAIGHT SCREW PLUG

main90430-20004i2ZRFXE..ZWE219¥200202210

main90430-20018i2ZRFAE..ZRE212¥90201909

15609HRING, O(FOR OIL FILTER BRACKET)

main96723-24020i2ZRFAE..ZRE212¥140201909

91551F0835

main91551-F0835¥80

7 parts on this diagram · 2 diagrams in section
