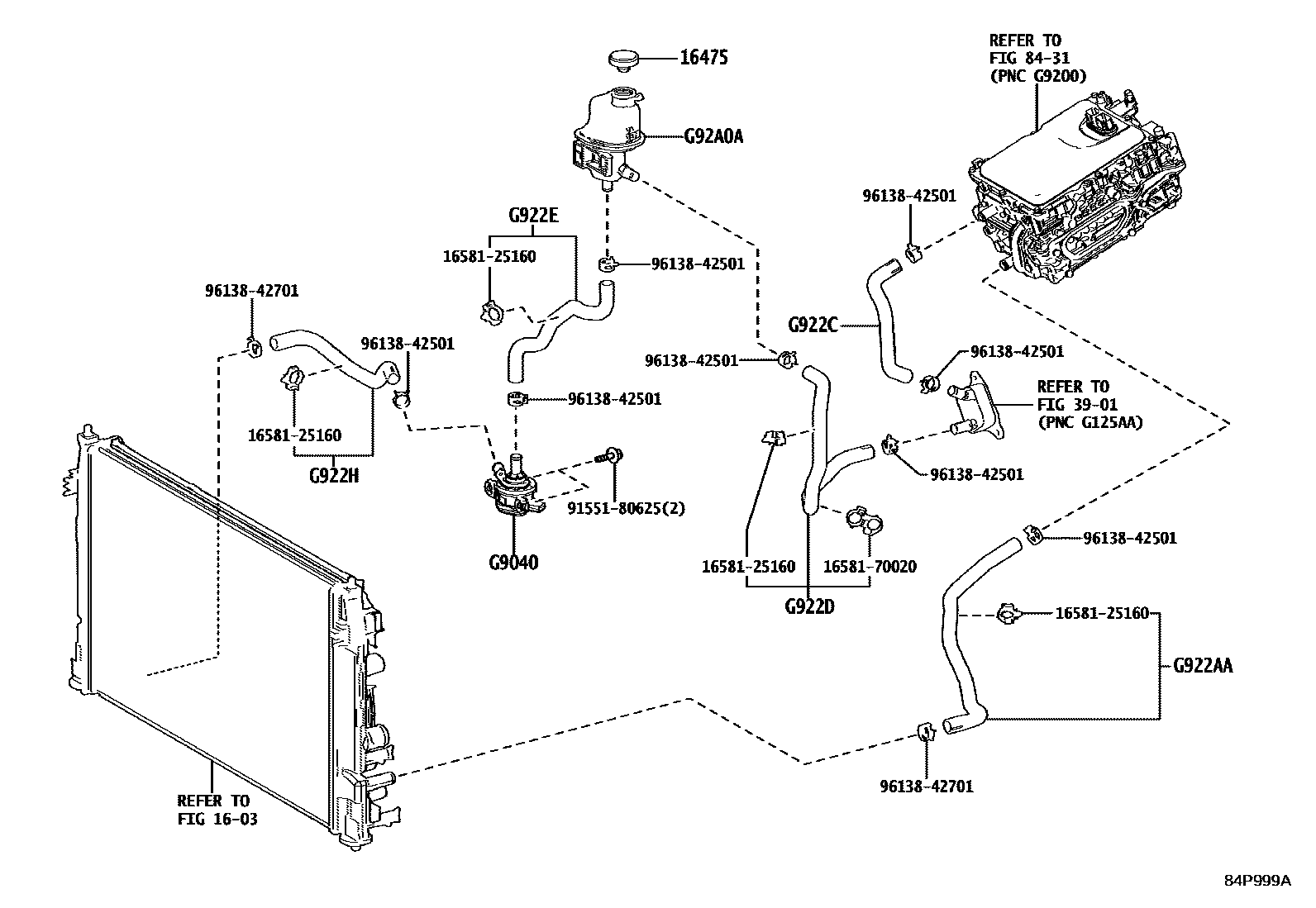

Toyota COROLLA/TOURING — INVERTER COOLING

1603

16475CAP, RESERVE TANK

main16475-28140i2ZRFXE..ZWE219¥1,200202210

3901

8431

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904047020iZWE219202210

G922AAHOSE, INVERTER COOLING INLET, NO.1

mainG922A16020iZWE219202210

G922CHOSE, INVERTER COOLING OUTLET, NO.1

mainG922C16010iZWE219202210

G922DHOSE, INVERTER COOLING OUTLET, NO.2

mainG922D16010iZWE219202210

G922EHOSE, HYBRID WATER PUMP INLET

mainG922E16030iZWE219202210

G922HHOSE, HYBRID RADIATOR INLET

mainG922H16010iZWE219202210

G92A0ATANK ASSY, INVERTER RESERVE

mainG910G16010iZWE219202210

1658125160CLAMP, HOSE(FOR WATER HOSE)

main16581-25160¥300

1658170020CLAMP, HOSE(FOR WATER HOSE)

main16581-70020¥510

9155180625

main91551-80625¥60

9613842501

main96138-42501¥180

9613842701

main96138-42701¥200

16 parts on this diagram · 1 diagram in section
