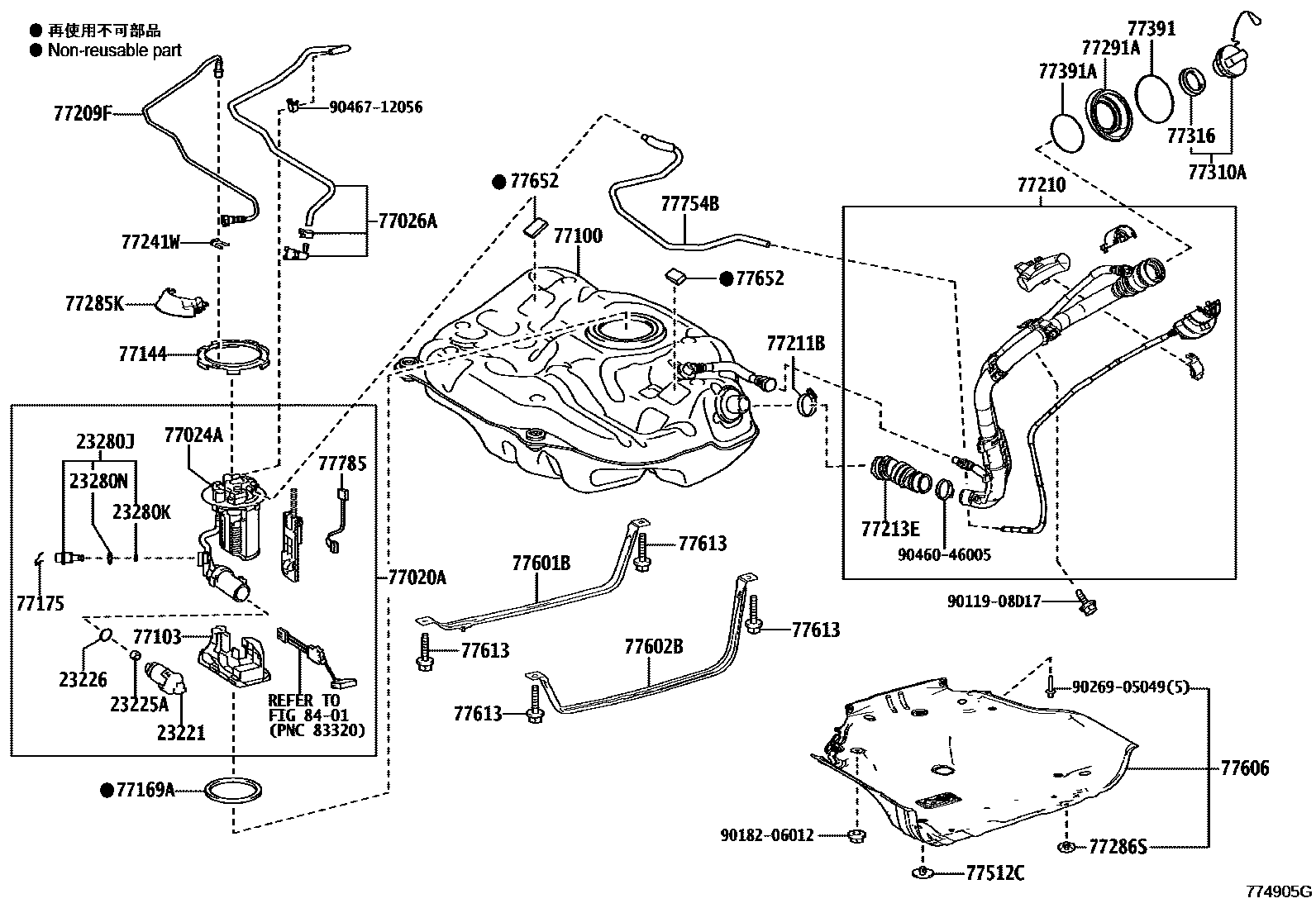

Toyota COROLLA/TOURING — FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TUBE 0004 1FUEL TUBE 0005 1FUEL LID OPENER

23221PUMP, FUEL

main23210-37010i2ZRFAE..ZRE212¥25,700201909

main23210-37020i2ZRFXE..ZWE219¥23,400202210

23225ASPACER, FUEL PUMP

main23225-21020i2ZRFAE..ZRE212¥120201909

main23225-21020i2ZRFXE..ZWE219¥120202210

23226RING, O(FOR FUEL PUMP)

main90301-08020i2ZRFXE..ZWE219¥250202210

main90301-08020i2ZRFAE..ZRE212¥250201909

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-21010i2ZRFAE..ZRE212¥6,000201909

main23280-21010i2ZRFXE..ZWE219¥6,000202210

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i2ZRFAE..ZRE212¥140201909

main90301-04013i2ZRFXE..ZWE219¥140202210

23280NRING, O(FOR FUEL PRESSURE REGULATOR), NO.2

main90301-15024i2ZRFAE..ZRE212¥140201909

main90301-15024i2ZRFXE..ZWE219¥140202210

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-12A30iZRE212¥47,200201909

main77020-12A60iZWE219¥42,900202210

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-10020iZRE212¥6,500201909

main77024-10020iZWE219¥6,500202210

77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-12050iZRE212¥1,630201909

main77026-47040iZWE219¥1,540202210

77100TANK ASSY, FUEL

main77001-10380iZRE212¥33,200201909

sub77001-10420¥33,200

main77001-12F30iZWE219¥27,100202210

77103SUB-TANK SUB-ASSY, FUEL

main77103-12130iZWE219¥2,920202210

main77103-12140iZRE212¥2,920201909

77144RETAINER, FUEL PUMP GAUGE

main77144-30030iZRE212¥1,270201909

main77144-30030iZWE219¥1,270202210

77169AGASKET, FUEL SUCTION TUBE SET

main77169-47030iZRE212¥220201909

main77169-47040iZWE219¥700202210

77175SUPPORT, FUEL SUCTION, NO.2

main77175-78010iZRE212¥570201909

main77175-78010iZWE219¥570202210

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-12330iZRE212¥1,470201909

main77209-76050iZWE219¥1,520202210

77210PIPE ASSY, FUEL TANK FILLER

main77210-12620iZRE212¥12,200201909-202001

sub77210-12621¥9,200

main77210-12621iZRE212¥9,200202002

77211BCLAMP (FOR FUEL FILLER PIPE)

main90460-50008iZRE212¥240201909

77213EHOSE, FUEL TANK TO FILLER PIPE

main77213-12360iZRE212¥1,090201909

77241WCLIP, TUBE JOINT

main77241-33011iZRE212¥80201909-202108

main77241-60550iZRE212¥50202109

main77241-60550iZWE219¥50202210

77285KCLAMP, FUEL TUBE, NO.1

main77285-10060iZRE212¥1,670201909

main77285-30350iZWE219¥200202210

77286SCUSHION, FUEL TANK PROTECTOR

main77286-12110iZRE212¥200201909

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-12250iZRE212¥1,040201909

main77291-12250iZWE219¥1,040202210

77310ACAP ASSY, FUEL TANK

main77300-12020iZRE212¥1,660201909

main77300-12020iZWE219¥1,660202210

77316GASKET, FUEL TANK CAP

main77316-52040iZRE212¥230201909

main77316-52040iZWE219¥230202210

77391RING, FUEL INLET BOX

main77391-12020iZRE212¥180201909

main77391-12020iZWE219¥180202210

77391ARING, FUEL INLET BOX

main77391-20040iZRE212¥190201909

main77391-20040iZWE219¥190202210

77512CBRACKET, FUEL TANK

main77512-35140iZRE212¥230201909

main77512-35140iZWE219¥230202210

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-10080iZRE212¥1,540201909

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-10030iZRE212¥1,540201909

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-10060iZRE212¥5,700201909

77613BOLT, FUEL TANK BAND SET

main90119-10995iZRE212¥190201909

77652CUSHION, FUEL TANK, NO.1

main77652-10070iZRE212¥140201909

77754BHOSE, CHARCOAL CANISTER OUTLET

main77754-10020iZRE212¥1,790201909

main77754-16120iZWE219¥1,780202401

main77754-47090iZWE219¥1,760202210-202312

77785HARNESS, FUEL PUMP

main77785-12010iZRE212¥870201909

main77785-12010iZWE219¥870202210

8401

9011908D17

main90119-08D17¥100

9018206012

main90182-06012¥60

9026905049

main90269-05049¥40

9046046005

main90460-46005¥190

9046712056

main90467-12056¥70

40 parts on this diagram · 5 diagrams in section
