Toyota COROLLA/TOURING — FUEL INJECTION SYSTEM

0001 1 0002 1

1603

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-37040i2ZRFAE..ZRE212¥52,700201909

main22030-37060i2ZRFXE..ZWE219¥52,700202210

22271GASKET, THROTTLE BODY

main22271-37020i2ZRFXE..ZWE219¥260202210

main22271-75031i2ZRFAE..ZRE212¥250201909

222A0CONTROLLER ASSY, CONTINUOUSLY VARIABLE VALVE LIFT

main222A0-37024i2ZRFAE..ZRE212¥96,300201909-202001

sub222A0-37025¥72,800

main222A0-37025i2ZRFAE..ZRE212¥72,800202002

222A2CLIP, VALVE LIFT CONTROL ACTUATOR CONNECTOR

main222A2-37011i2ZRFAE..ZRE212¥130201909

23250INJECTOR ASSY, FUEL

main23209-39235i2ZRFAE..ZRE212¥13,900201909

main23209-39295i2ZRFXE..ZWE219¥12,600202210

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037i2ZRFAE..ZRE212¥140201909

23291INSULATOR, INJECTOR VIBRATION

main23291-28020i2ZRFXE..ZWE219¥310201909

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-37051i2ZRFAE..ZRE212¥8,900201909

main23814-37100i2ZRFXE..ZWE219¥8,600202210

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-37010i2ZRFAE..ZRE212¥240201909

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-37081i2ZRFAE..ZRE212¥310201909

main23841-37160i2ZRFXE..ZWE219¥1,150202210

23841KCLAMP, FUEL PIPE

main23841-47020i2ZRFAE..ZRE212¥180201909

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23841-37131i2ZRFXE..ZWE219¥210202210

main23842-22020i2ZRFAE..ZRE212¥550201909

23901TUBE SUB-ASSY, FUEL

main23901-37300i2ZRFAE..ZRE212¥3,950201909

main23901-37350i2ZRFXE..ZWE219¥3,650202210

7701

8202

9012606027

main90126-06027¥80

9012608026

main90126-08026¥210

9030138010

main90301-38010¥170

91551L0845

main91551-L0845¥100

9167180650

main91671-80650¥80

9167180820

main91671-80820¥80

91671E0835

main91671-E0835¥100

9415180600

main94151-80600¥60

9415180800

main94151-80800¥80

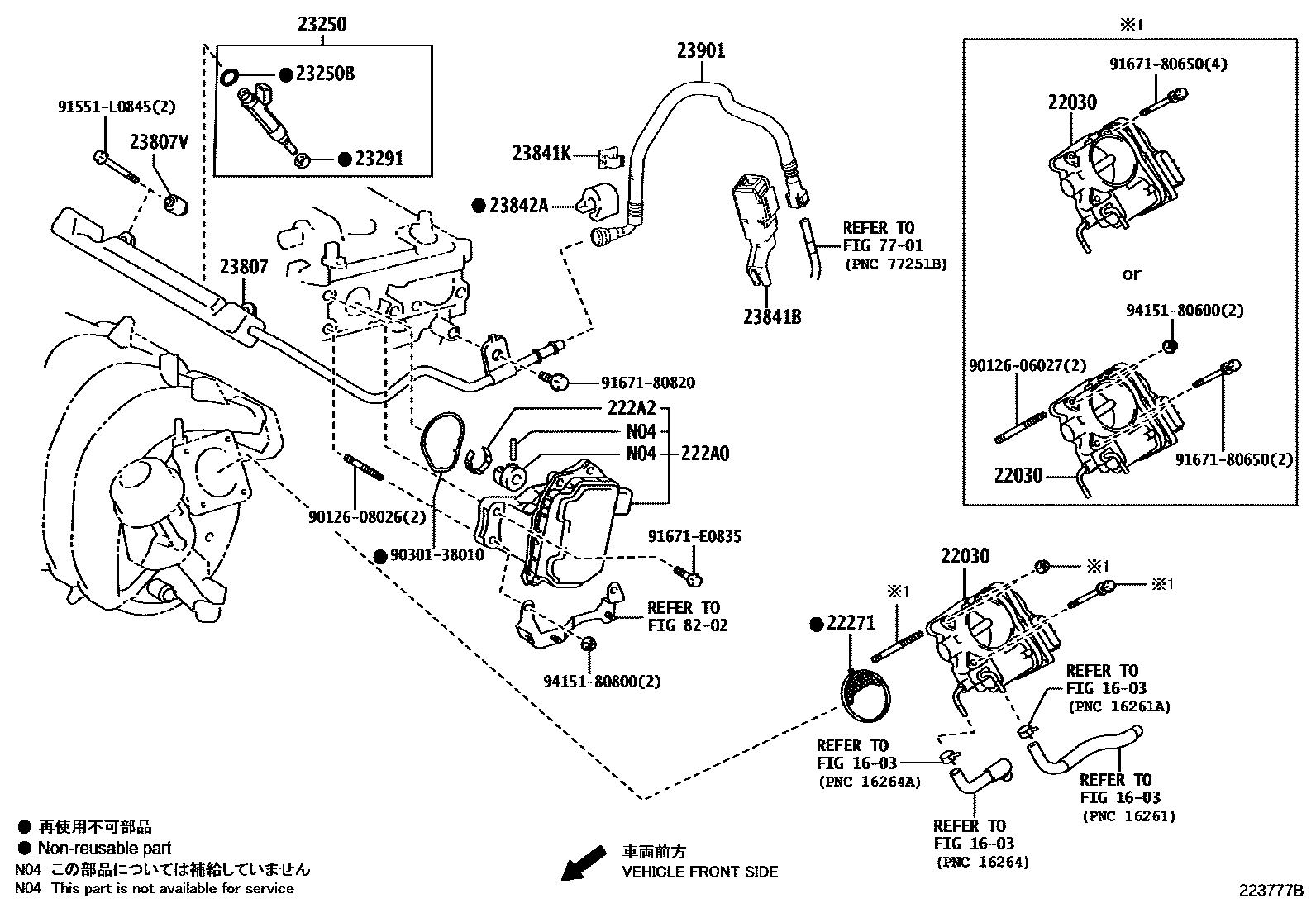

25 parts on this diagram · 2 diagrams in section
