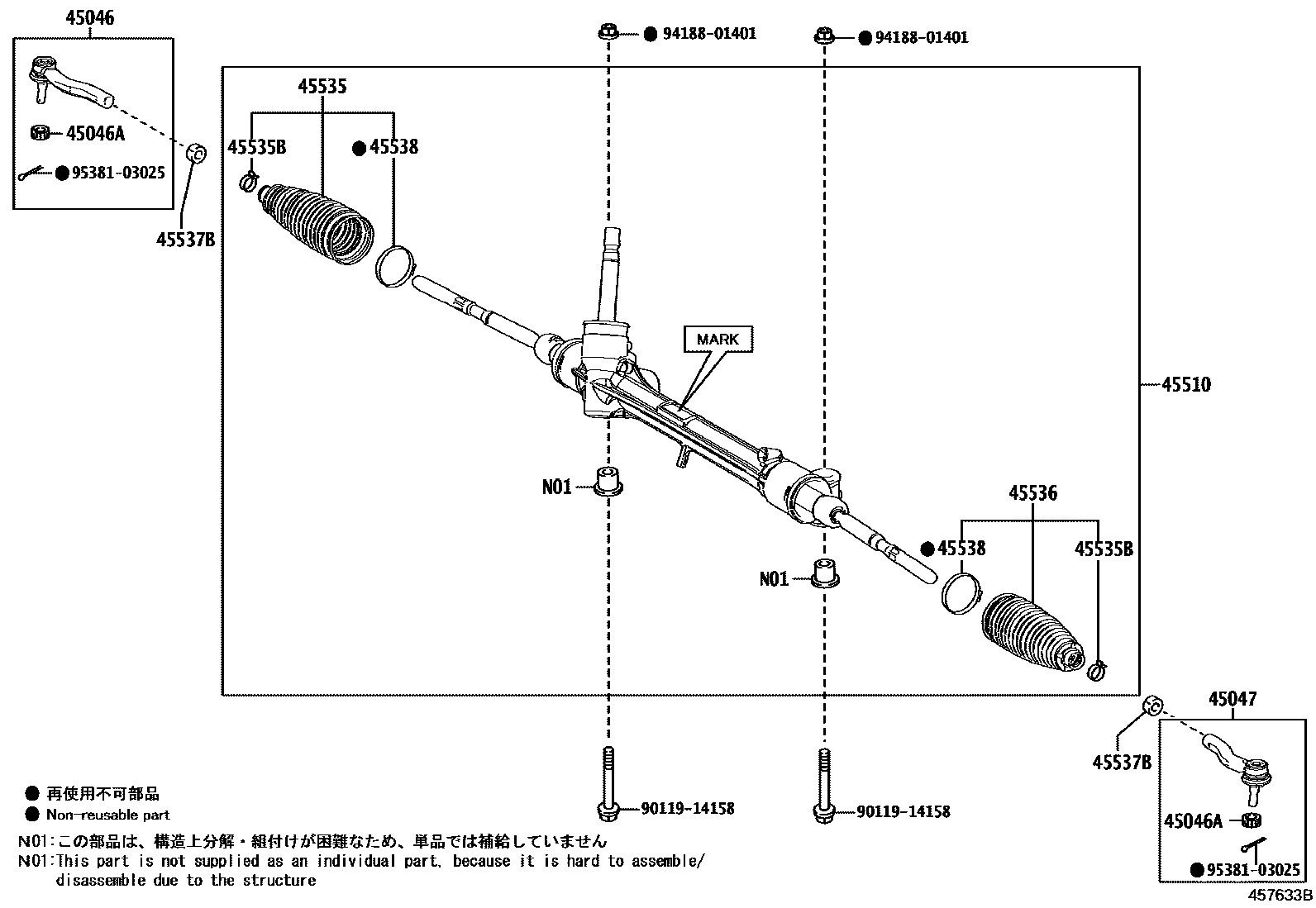

Toyota COROLLA/TOURING — FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-49255iZRE212¥2,690201909

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iZRE212¥130201909

45047END SUB-ASSY, TIE ROD, LH

main45047-49195iZRE212¥2,690201909

45510GEAR ASSY, STEERING

main45510-12650iZWE219¥29,800202210

main45510-47140iZRE212¥32,900201909-202010

MARK = J05

main45510-47150iZRE212¥32,900202010

MARK = J06

45535BOOT, STEERING RACK, NO.1

main45535-59075iZRE212¥790201909

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19019iZRE212¥320201909

45536BOOT, STEERING RACK, NO.2

main45535-59075iZRE212¥790201909

45537BNUT, RACK END LOCK

main90178-16001iZRE212¥120201909

45538RETAINER, STEERING RACK BOOT

main45538-48020iZRE212¥240201909

9011914158

main90119-14158¥430

9418801401

main94188-01401¥190

9538103025

main95381-03025¥130

12 parts on this diagram · 1 diagram in section
