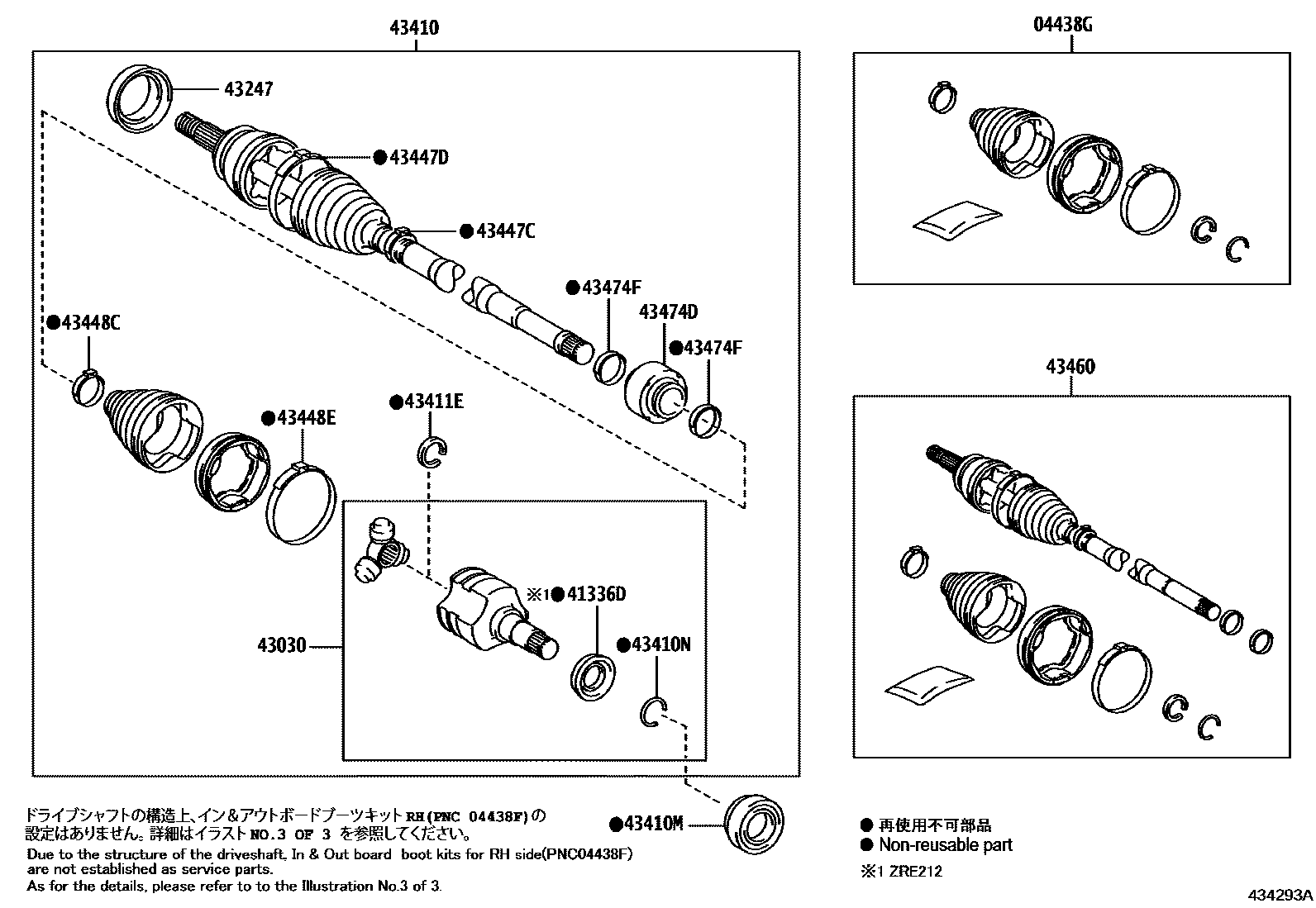

Toyota COROLLA/TOURING — FRONT DRIVE SHAFT

0001 1RH 0002 1LH 0003 1

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-10020iZRE212¥4,150201909

main04437-47033iZWE219¥4,150202210

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12060iZRE212¥200201909

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43040-12120iZRE212¥16,600201909

main43040-12160iZWE219¥13,000202210

43247DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2

main43247-47010iZRE212¥490201909

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-12B50iZRE212¥57,400201909

main43410-12B60iZWE219¥52,100202210

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-35076iZRE212¥400201909

main90311-40051iZWE219¥470202210

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90521-27005iZRE212¥110201909

main90521-33002iZWE219¥100202210

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-12070iZRE212¥40201909

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-12230iZRE212¥220201909

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-12240iZRE212¥340201909

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-12230iZRE212¥220201909

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-12180iZRE212¥330201909

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-49427iZWE219¥36,500202210

main43460-80188iZRE212¥46,900201909

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-12210iZRE212¥4,640201909

main43474-47020iZWE219¥4,230202210

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-12090iZRE212¥140201909

main42345-12100iZWE219¥180202210

15 parts on this diagram · 3 diagrams in section
