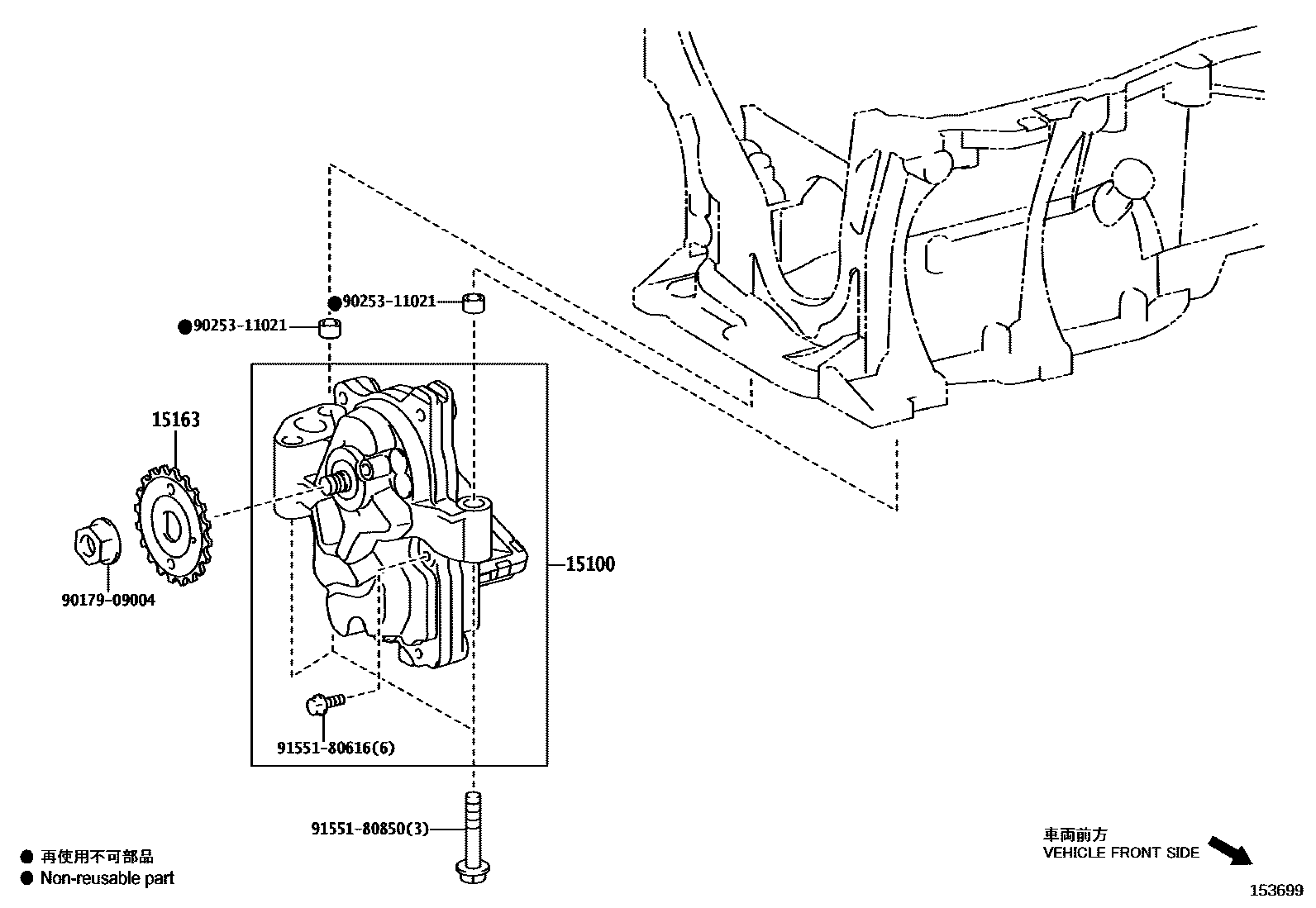

Toyota COROLLA/TOURING — ENGINE OIL PUMP

0001 1 0002 1

15100PUMP ASSY, OIL

main15100-37021i2ZRFAE..ZRE212¥11,800201909

main15100-37070i2ZRFXE..ZWE219¥11,300202210

15163GEAR, OIL PUMP DRIVE SHAFT

main15163-28010i2ZRFAE..ZRE212¥390201909

main15163-28010i2ZRFXE..ZWE219¥390202210

9017909004

main90179-09004¥90

9025311021

main90253-11021¥120

9155180616

main91551-80616¥60

9155180850

main91551-80850¥100

6 parts on this diagram · 2 diagrams in section
