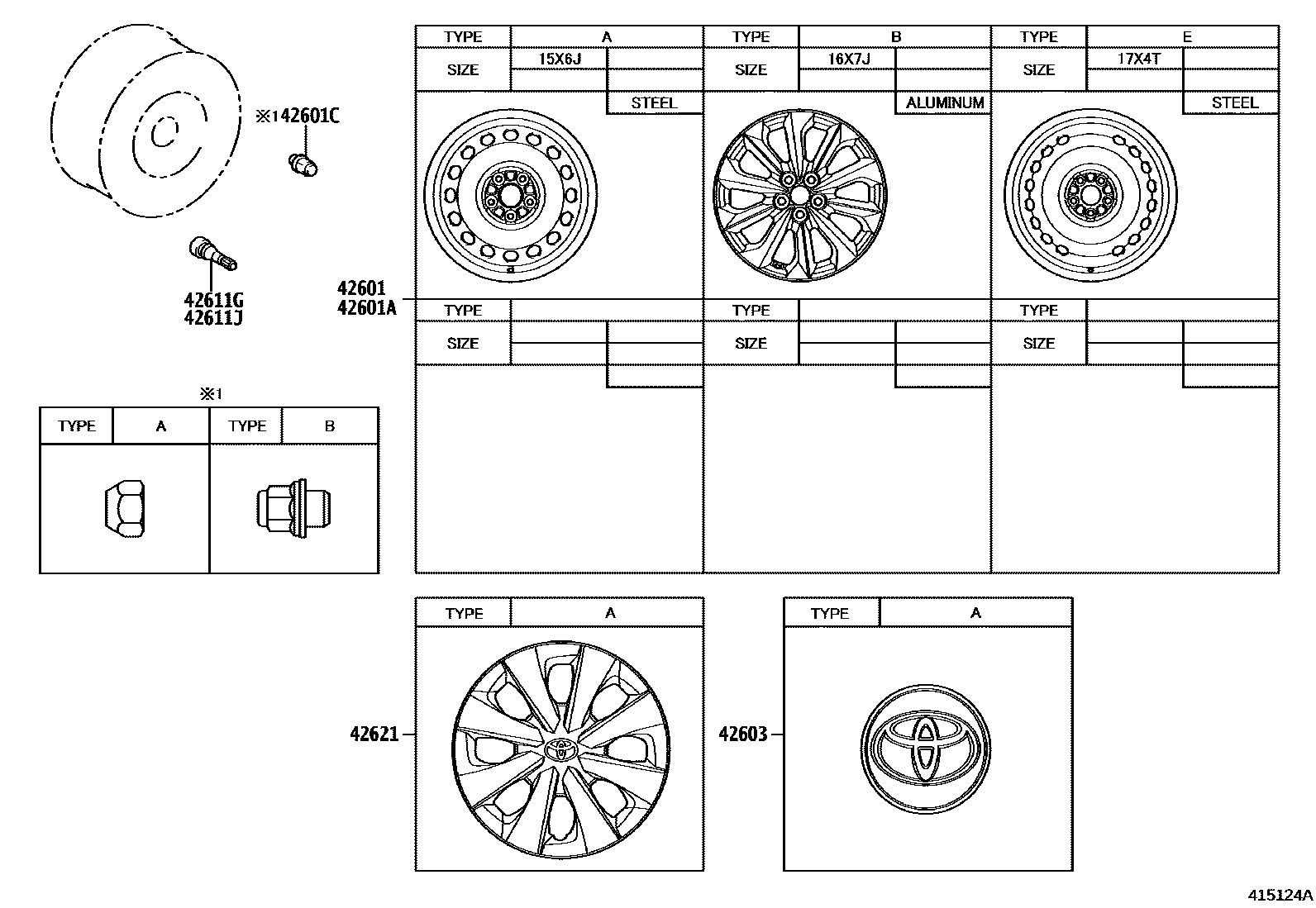

Toyota COROLLA/TOURING — DISC WHEEL & WHEEL CAP

0001 1 0002 1

42601WHEEL, DISC

main42611-12E40iZRE212¥9,700201909-202010

15X6J,#,TYPE A:REFER ILLUST.

main42611-12E50iZRE212¥37,700202010

16X7J,#,TYPE B:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-47631iZRE212¥10,100201909

17X4T,TYPE E:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01007iZRE212¥230201909-202010

TYPE A:REFER ILLUST.

main90942-01033iZRE212¥430202010

TYPE B:REFER ILLUST.

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-52170iZRE212¥1,210202010

*ALU,TYPE A:REFER ILLUST.

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009iZRE212¥390201909

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iZRE212¥390201909

42621CAP, WHEEL

main42602-12840iZRE212¥6,500201909-202010

TYPE A:REFER ILLUST.

7 parts on this diagram · 2 diagrams in section
