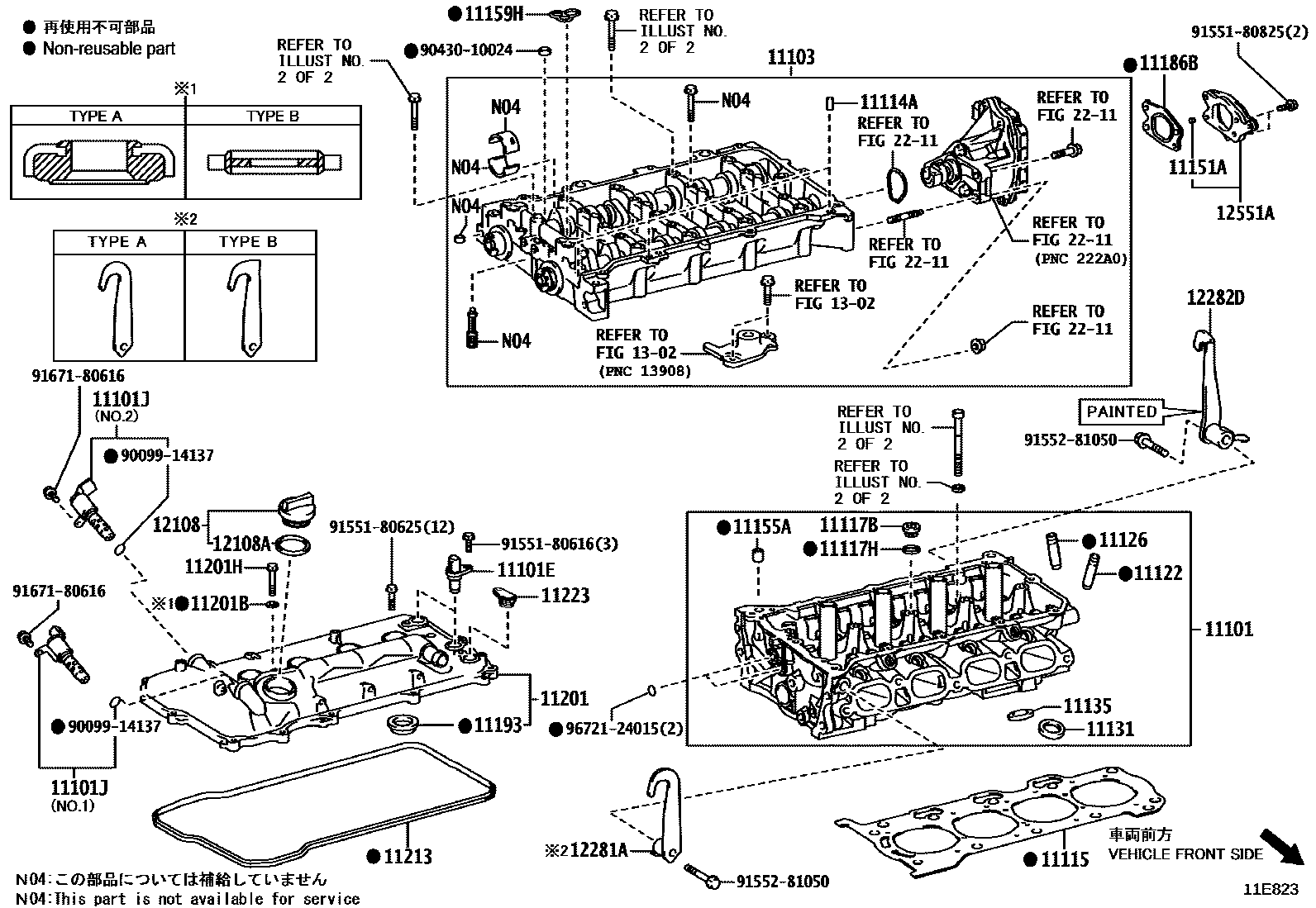

Toyota COROLLA/TOURING — CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
11101ESENSOR, CAM POSITION
11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL
NO.1
NO.2
11103HOUSING SUB-ASSY, CAMSHAFT
11114APIN, STRAIGHT
L=14,OD=6
11115GASKET, CYLINDER HEAD
11117BPLUG, W/HEAD TAPER SCREW, NO.2
11117HGASKET(FOR WATER HOLE)
11122BUSH, INTAKE VALVE GUIDE
STD
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
O/S 0.05
11131SEAT, INTAKE VALVE
STD
STD
O/S 0.03
O/S 0.03
11135SEAT, EXHAUST VALVE
STD
STD
O/S 0.03
O/S 0.03
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
L=10,OD=8.5
L=12.5,OD=8
11155APIN, RING W/HEAD
11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE
11186BGASKET, CAMSHAFT HOUSING REAR COVER
11193GASKET, SPARK PLUG TUBE
11201COVER SUB-ASSY, CYLINDER HEAD
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
11201HBOLT(FOR CYLINDER HEAD COVER)
11213GASKET, CYLINDER HEAD COVER
11223SCREEN,CYLINDER HEAD COVER
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
12281AHANGER, ENGINE, NO.1
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
12282DHANGER, ENGINE, NO.2
NO PAINTED
PAINTED=WHITE
12551ABRACKET, VACUUM PUMP, NO.1
1302
2211
9009914137
9043010024
9155180616
9155180625
9155180825
9155281050
9167180616
9672124015
37 parts on this diagram · 4 diagrams in section
