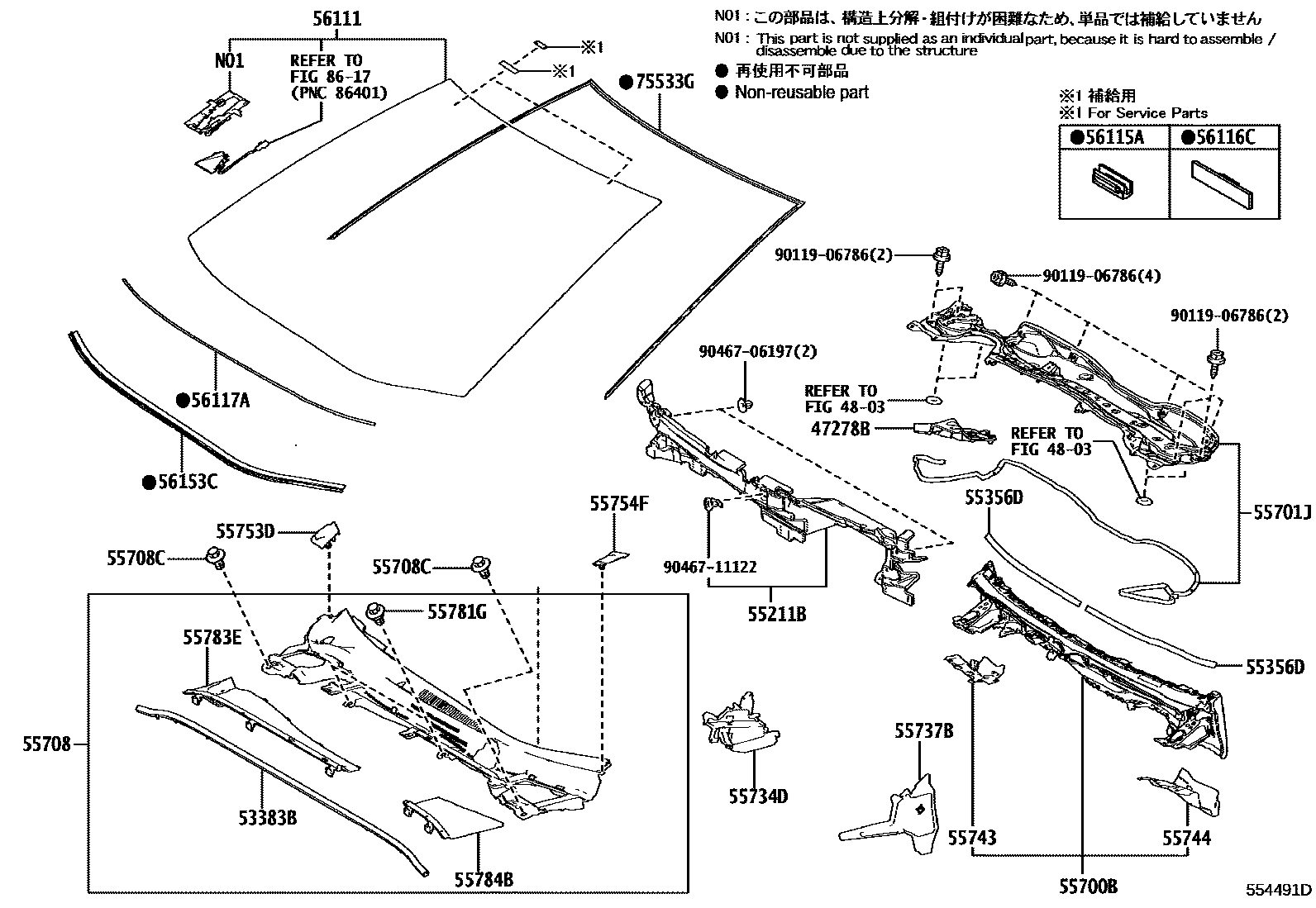

Toyota COROLLA/TOURING — COWL PANEL & WINDSHIELD GLASS
47278BCOVER, BRAKE MASTER CYLINDER
4803
53383BSEAL, HOOD TO COWL TOP
55211BSILENCER, FRONT PANEL
55356DCUSHION, INSTRUMENT PANEL, NO.2
55700BCOWL ASSY
55701JPANEL SUB-ASSY, COWL TOP, OUTER
55708LOUVER SUB-ASSY, COWL TOP VENTILATOR
55708CCLIP, COWL TOP VENTILATOR LOUVER
55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
55743PANEL, COWL TOP OUTSIDE CORNER, RH
55744PANEL, COWL TOP OUTSIDE CORNER, LH
55753DSHIELD, COWL WATER EXTRACT, RH
55754FSHIELD, COWL WATER EXTRACT, LH
55781GCLIP, COWL TOP VENTILATOR LOUVER
55783ELOUVER, COWL TOP VENTILATOR, CENTER
55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
*D,L=1298 OR 725
56153CMOULDING, FRONT WINDOW, INNER CENTER
75533GMOULDING, WINDSHIELD, OUTSIDE
8617
9011906786
9046706197
9046711122
28 parts on this diagram · 1 diagram in section
