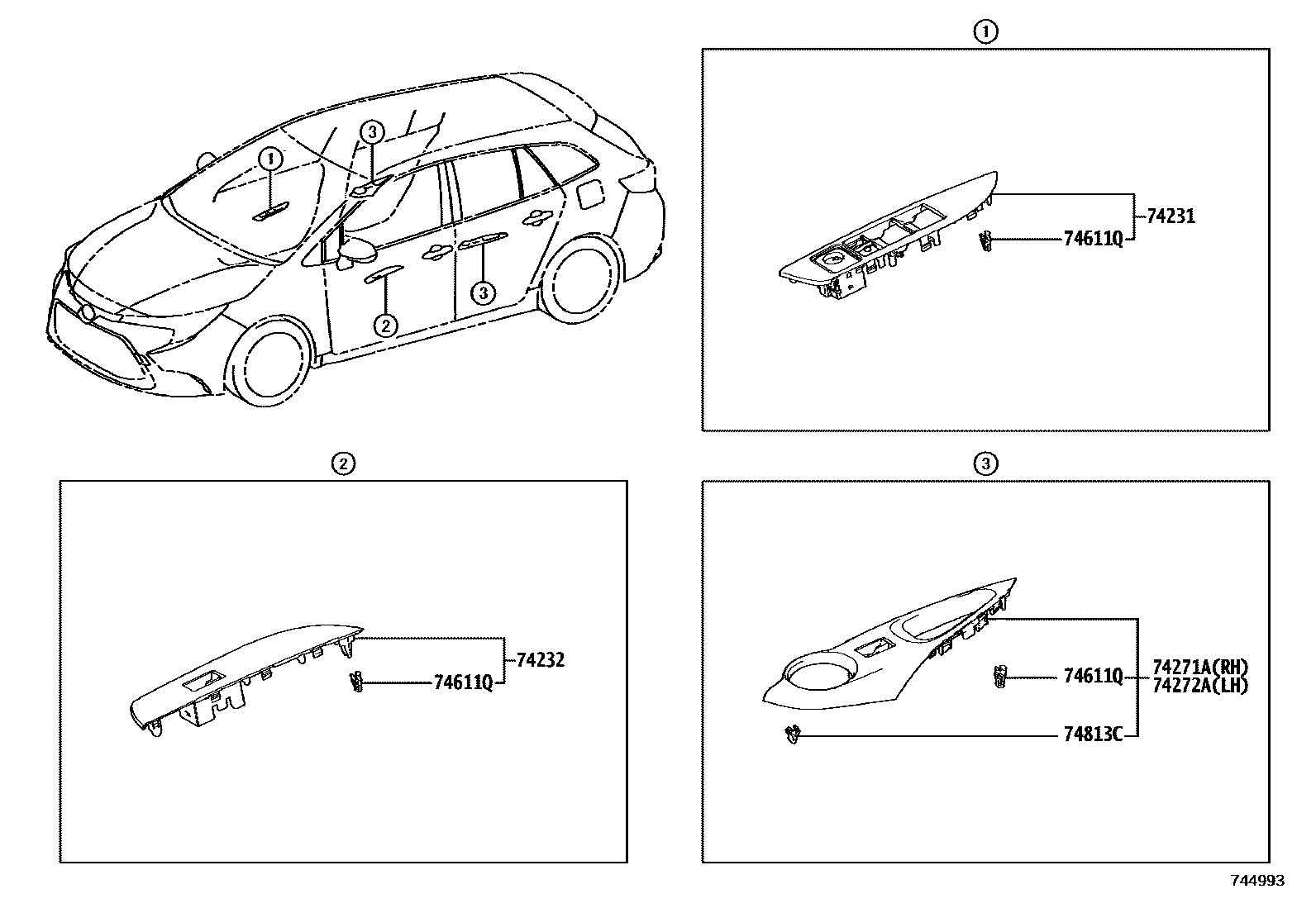

Toyota COROLLA/TOURING — ARMREST & VISOR

0001 1ARMREST 0002 1VISOR & ASSIST GRIP

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-12E30iZWE219¥1,090202210

main74231-12E30iZRE212¥1,090201909

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-12B00iZRE212¥1,250201909

main74232-12B00iZWE219¥1,250202210

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-12550iZRE212¥1,820201909

main74271-12550iZWE219¥1,820202210

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-12490iZRE212¥1,820201909

main74272-12490iZWE219¥1,820202210

74611QCLIP

main90467-10203iZRE212¥60201909

main90467-10203iZWE219¥60202210

74813CCLIP

main90467-12080iZRE212¥60201909

main90467-12080iZWE219¥60202210

6 parts on this diagram · 2 diagrams in section
