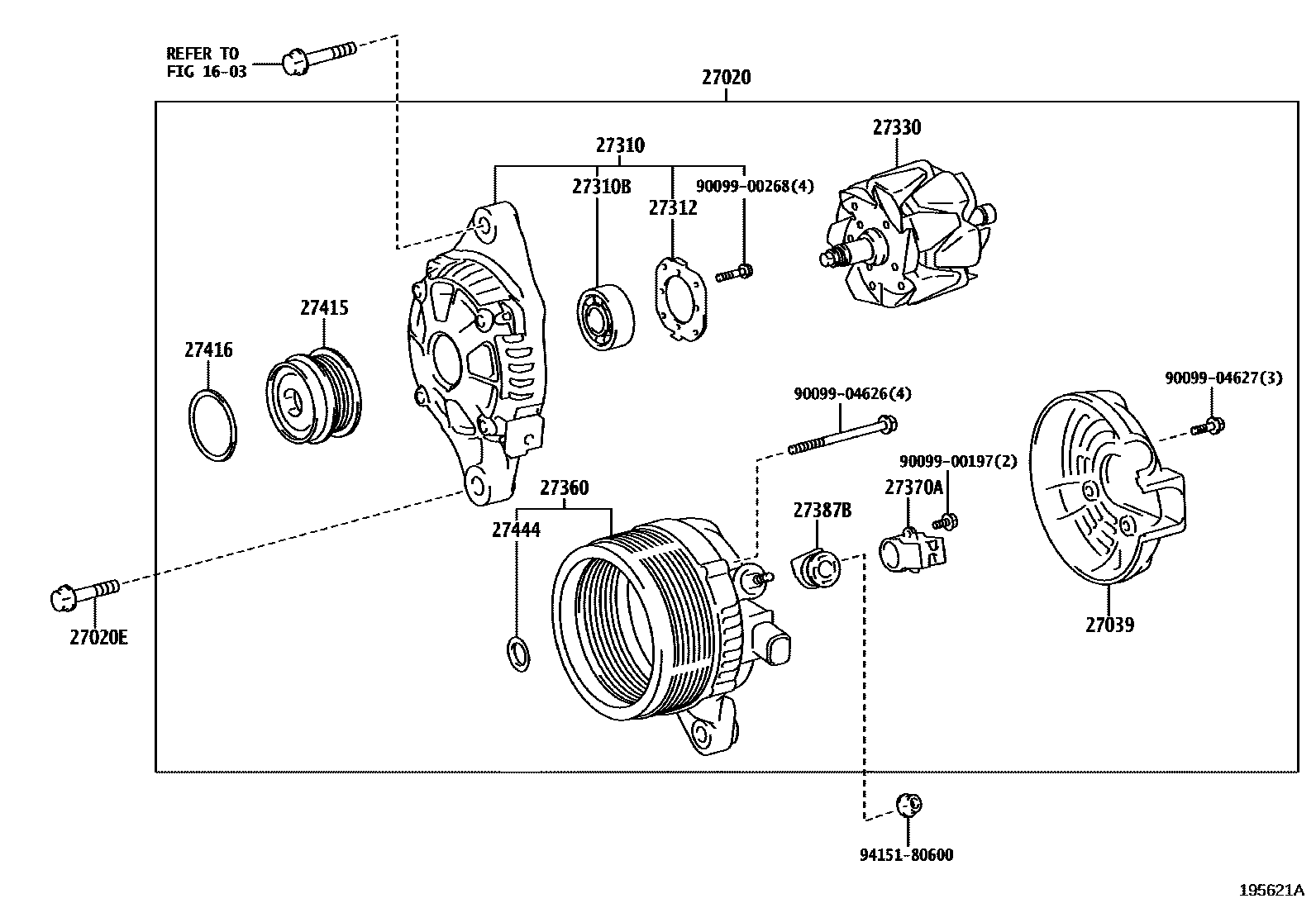

Toyota COROLLA/TOURING — ALTERNATOR

1603

27020ALTERNATOR ASSY

main27060-37240i2ZRFAE..ZRE212¥93,000201909

12V 100A

27020EBOLT(FOR ALTERNATOR)

main90105-10307i2ZRFAE..ZRE212¥1,200201909

27039COVER, ALTERNATOR REAR END

main27039-37220i2ZRFAE..ZRE212¥0201909

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-37130i2ZRFAE..ZRE212201909

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10223i2ZRFAE..ZRE212¥0201909

27312PLATE, RETAINER

main27312-72100i2ZRFAE..ZRE212¥0201909

27330ROTOR ASSY, ALTERNATOR

main27330-47330i2ZRFAE..ZRE212¥0201909

27360COIL ASSY, ALTERNATOR

main27360-37270i2ZRFAE..ZRE212201909

27370AHOLDER ASSY, ALTERNATOR BRUSH

main27370-31220i2ZRFAE..ZRE212¥0201909

27387BINSULATOR, ALTERNATOR TERMINAL

main27387-20130i2ZRFAE..ZRE212¥0201909

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0T060i2ZRFAE..ZRE212¥6,200201909

27416CAP, ALTERNATOR PULLEY

main27416-0W050i2ZRFAE..ZRE212¥340201909

27444PACKING, ALTERNATOR BEARING COVER

main27444-21190i2ZRFAE..ZRE212¥0201909

9009900197

main90099-00197

9009900268

main90099-00268¥0

9009904626

main90099-04626¥0

9009904627

main90099-04627¥0

9415180600

main94151-80600¥60

19 parts on this diagram · 1 diagram in section
