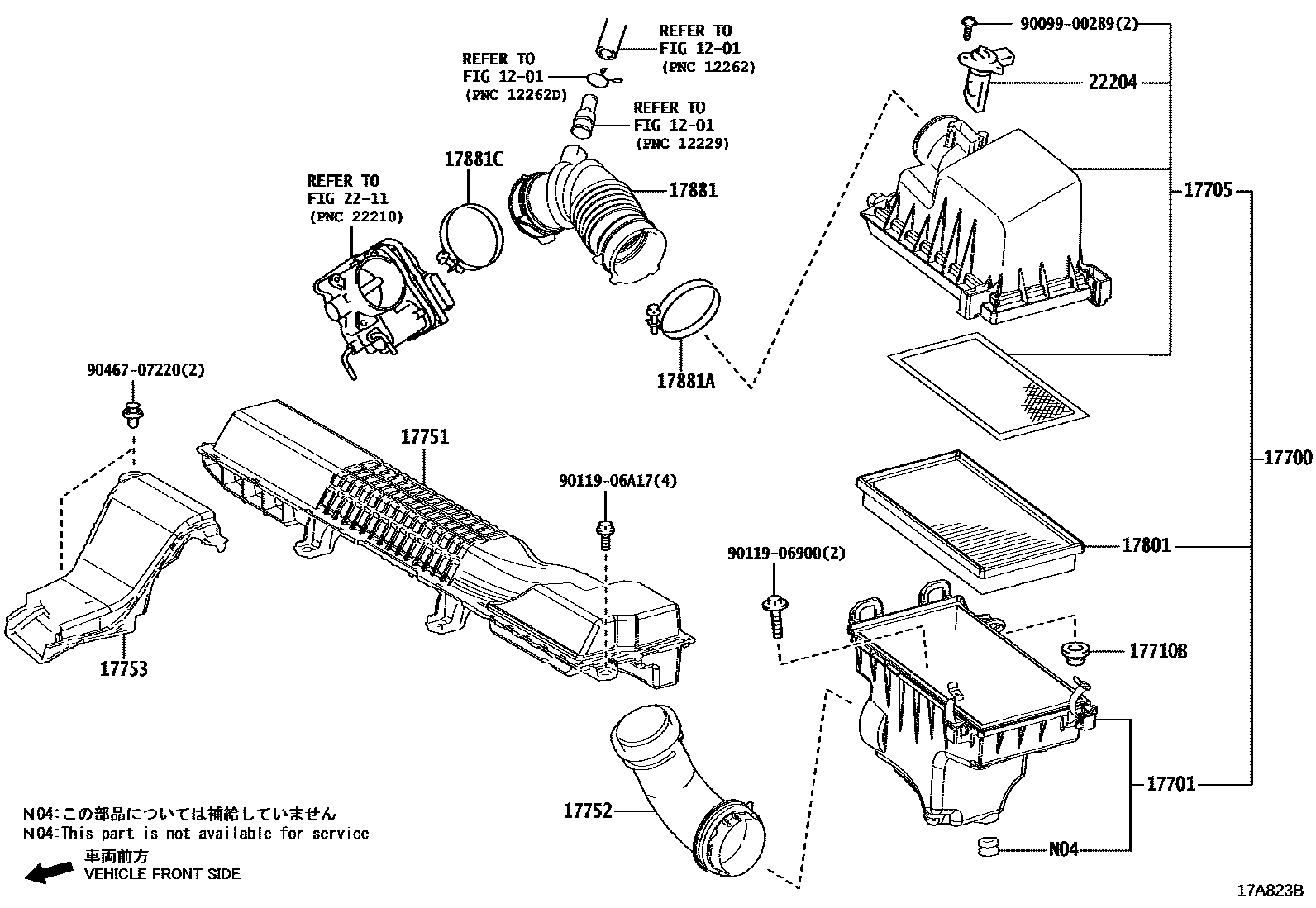

Toyota COROLLA/TOURING — AIR CLEANER

0001 1 0002 1

1201

17700CLEANER ASSY, AIR

main17700-37370i2ZRFAE..ZRE212¥17,300201909

main17700-37410i2ZRFXE..ZWE219¥15,700202210

17701CASE SUB-ASSY, AIR CLEANER

main17701-47080i2ZRFAE..ZRE212201909

main17701-V1010i2ZRFXE..ZWE219202210

17705CAP SUB-ASSY, AIR CLEANER

main17705-37240i2ZRFAE..ZRE212201909

main17705-V1010i2ZRFXE..ZWE219202210

17710BGROMMET

main90480-18006i2ZRFAE..ZRE212¥130201909

17751INLET, AIR CLEANER, NO.1

main17751-37150i2ZRFAE..ZRE212¥8,000201909

main17751-37170i2ZRFXE..ZWE219¥4,950202210

17752INLET, AIR CLEANER, NO.2

main17752-37190i2ZRFXE..ZWE219¥2,010202210

main17752-47020i2ZRFAE..ZRE212¥1,890201909

17753INLET, AIR CLEANER, NO.3

main17753-24030i2ZRFXE..ZWE219¥1,960202210

main17753-37040i2ZRFAE..ZRE212¥2,960201909

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-21060i2ZRFXE..ZWE219¥2,600202210

main17801-77050i2ZRFAE..ZRE212¥2,700201909

17881HOSE, AIR CLEANER, NO.1

main17881-37340i2ZRFAE..ZRE212¥2,280201909

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10650i2ZRFXE..ZWE219¥240202210

main96111-10780i2ZRFAE..ZRE212¥410201909

17881CCLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10750i2ZRFAE..ZRE212¥190201909

2211

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-24010i2ZRFXE..ZWE219¥12,400202210

main22204-75040i2ZRFAE..ZRE212¥9,400201909

9009900289

main90099-00289¥60

9011906900

main90119-06900¥80

9011906A17

main90119-06A17¥60

9046707220

main90467-07220¥80

18 parts on this diagram · 2 diagrams in section
