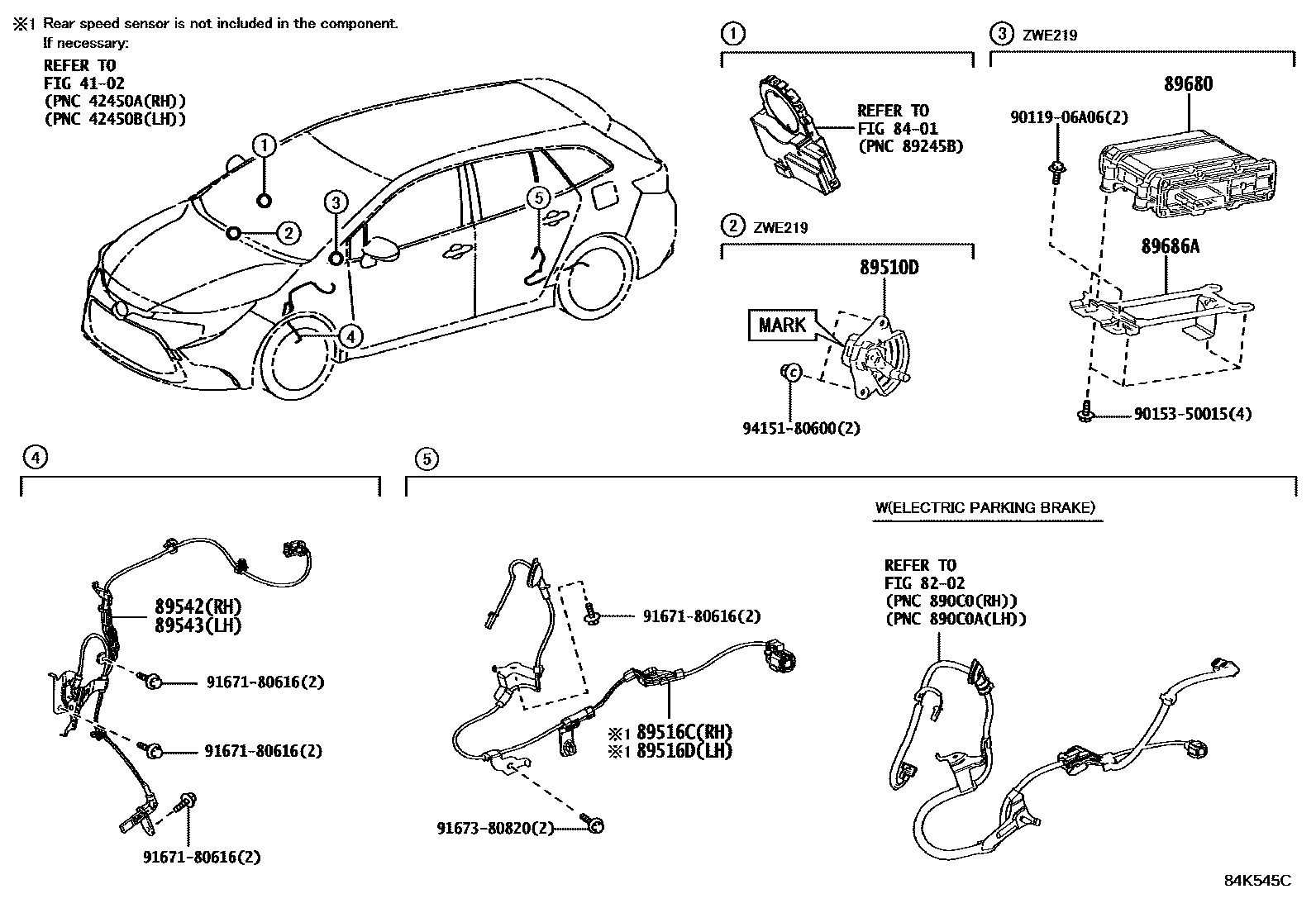

Toyota COROLLA/TOURING — ABS & VSC

4102

8202

8401

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-K0020iZWE219¥6,700202210-202306

MARK=89510-K0020

main89510-K0021iZWE219¥6,100202306

MARK=89510-K0021

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-47110iZRE212¥1,790201909

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-47120iZRE212¥1,790201909

89542SENSOR, SPEED, FRONT RH

main89542-12110iZRE212¥8,100201909

89543SENSOR, SPEED, FRONT LH

main89543-12110iZRE212¥8,100201909

89680SUPPLY ASSY, BRAKE CONTROL POWER

main89680-48030iZWE219¥24,900202210

89686ABRACKET, BRAKE CONTROL POWER SUPPLY, NO.1

main89686-12010iZWE219¥980202210

9011906A06

main90119-06A06¥60

9015350015

main90153-50015¥60

9167180616

main91671-80616¥60

9167380820

main91673-80820¥80

9415180600

main94151-80600¥60

15 parts on this diagram · 1 diagram in section
