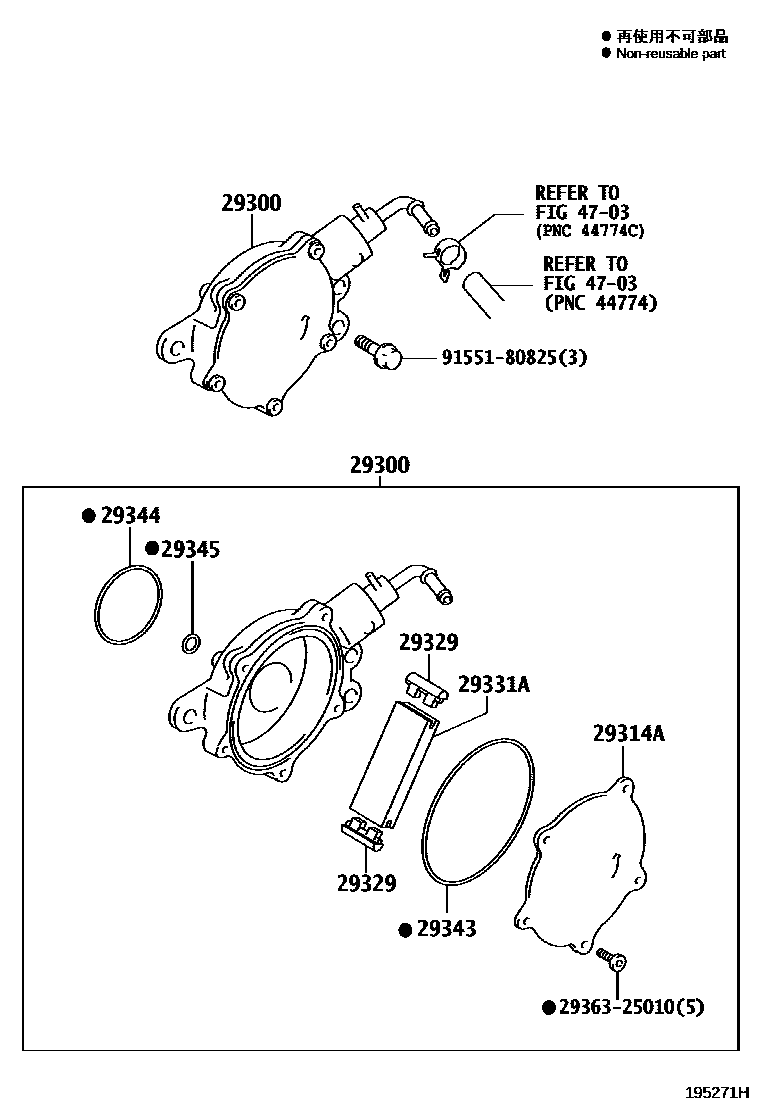

Toyota COROLLA SPORT — VACUUM PUMP

0001 1 0002 1

29300PUMP ASSY, VACUUM

main29300-24011iM20AFKS..MZEA12¥14,800202210-202505

main29300-47050i8NRFTS..NRE21#..CVT¥16,200201806

29314ACOVER, END

main29314-25010iM20AFKS..MZEA12¥900202210-202505

main29314-47040i8NRFTS..NRE210..6F¥990201806

29329CAP, VACUUM PUMP VANE

main29329-24011iM20AFKS..MZEA12¥900202210-202505

main29329-37010i8NRFTS..NRE21#..CVT¥200201806

29331AVANE, VACUUM PUMP

main29331-24010iM20AFKS..MZEA12¥590202210-202505

main29331-37010i8NRFTS..NRE210..6F¥590201806

29343RING, O VACUUM PUMP, NO.1

main29343-25010iM20AFKS..MZEA12¥340202210-202505

main29343-47040i8NRFTS..NRE210..6F¥150201806

29344RING, O VACUUM PUMP, NO.2

main29344-22011i8NRFTS..NRE210..6F¥130201806

29345RING, O VACUUM PUMP, NO.3

main29345-22011i8NRFTS..NRE21#..CVT¥130201806

4703

2936325010SCREW, HOLLOW VACUUM PUMP

main29363-25010¥200

9155180825

main91551-80825¥80

10 parts on this diagram · 2 diagrams in section
