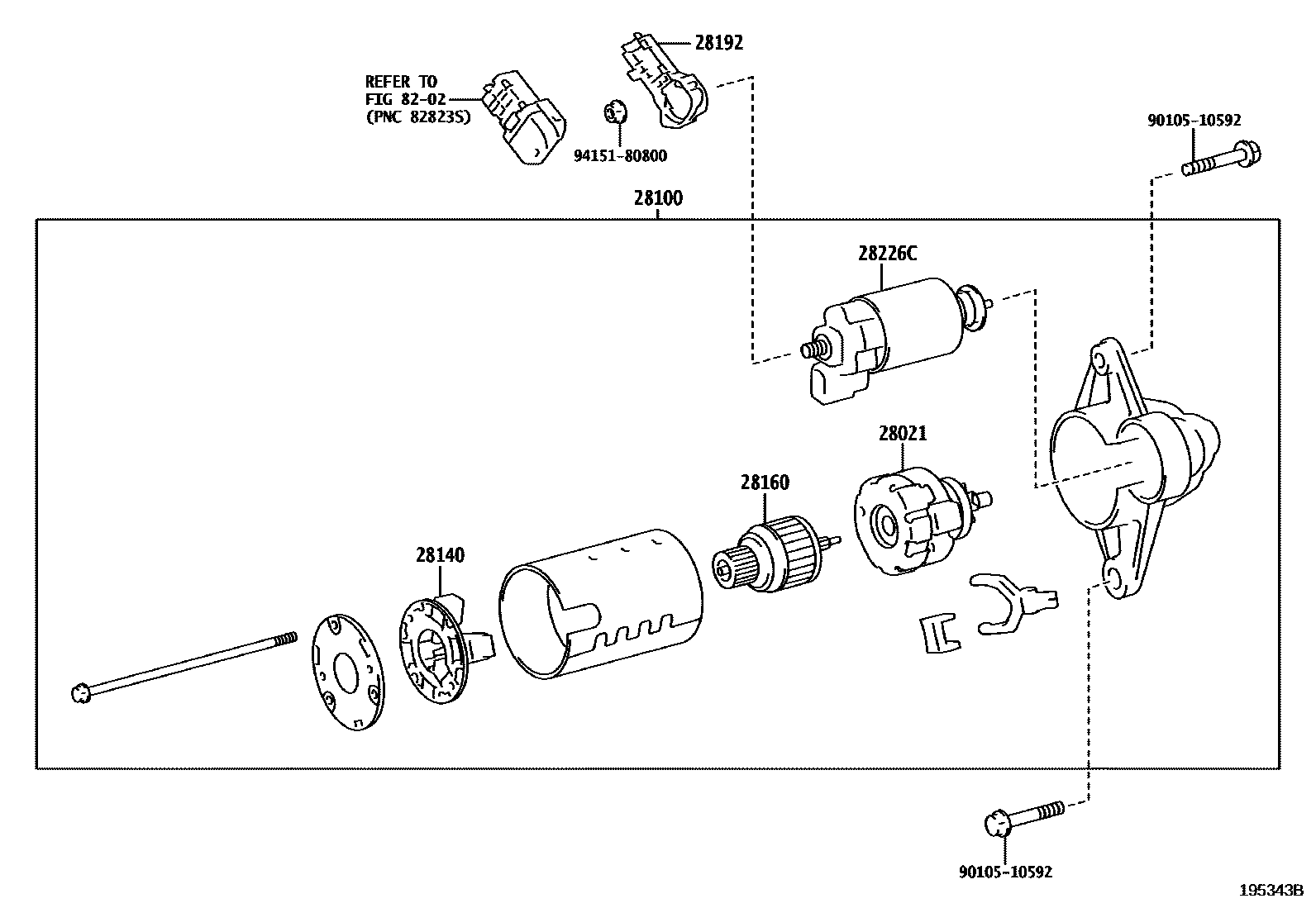

Toyota COROLLA SPORT — STARTER

0001 112V 1.0KW 0002 112V 1.6KW 0003 112V 1.7KW 0004 112V 1.0KW 0005 112V 1.2KW

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-21100i8NRFTS..NRE21#..CVT¥5,800201806

main28021-24120iM20AFKS..MZEA12¥6,700202210-202505

main28021-47170i8NRFTS..NRE210..6F¥6,700201808

28100STARTER ASSY

main28100-24160iM20AFKS..MZEA12¥50,900202210-202505

main28100-37150i8NRFTS..NRE210..6F¥51,000201808

main28100-47280i8NRFTS..NRE21#..CVT¥72,300201806

28140HOLDER ASSY, STARTER BRUSH

main28140-21070iM20AFKS..MZEA12201808-202505

main28140-21100i8NRFTS..NRE21#..CVT201806

28160ARMATURE ASSY, STARTER

main28160-21070iM20AFKS..MZEA12¥8,900201808-202505

main28160-36110i8NRFTS..NRE21#..CVT¥13,100201910

main28160-38080i8NRFTS..NRE21#..CVT¥20,800201806-201910

sub28160-36110¥13,100

28192COVER, STARTER

main28192-47020i8NRFTS..NRE21#¥380201806

28226CSTARTER KIT, REPAIR SERVICE, NO.2

main28226-24120iM20AFKS..MZEA12202210-202505

main28226-37130i8NRFTS..NRE210..6F201808

8202

9010510592

main90105-10592¥160

9415180800

main94151-80800¥80

9 parts on this diagram · 5 diagrams in section
