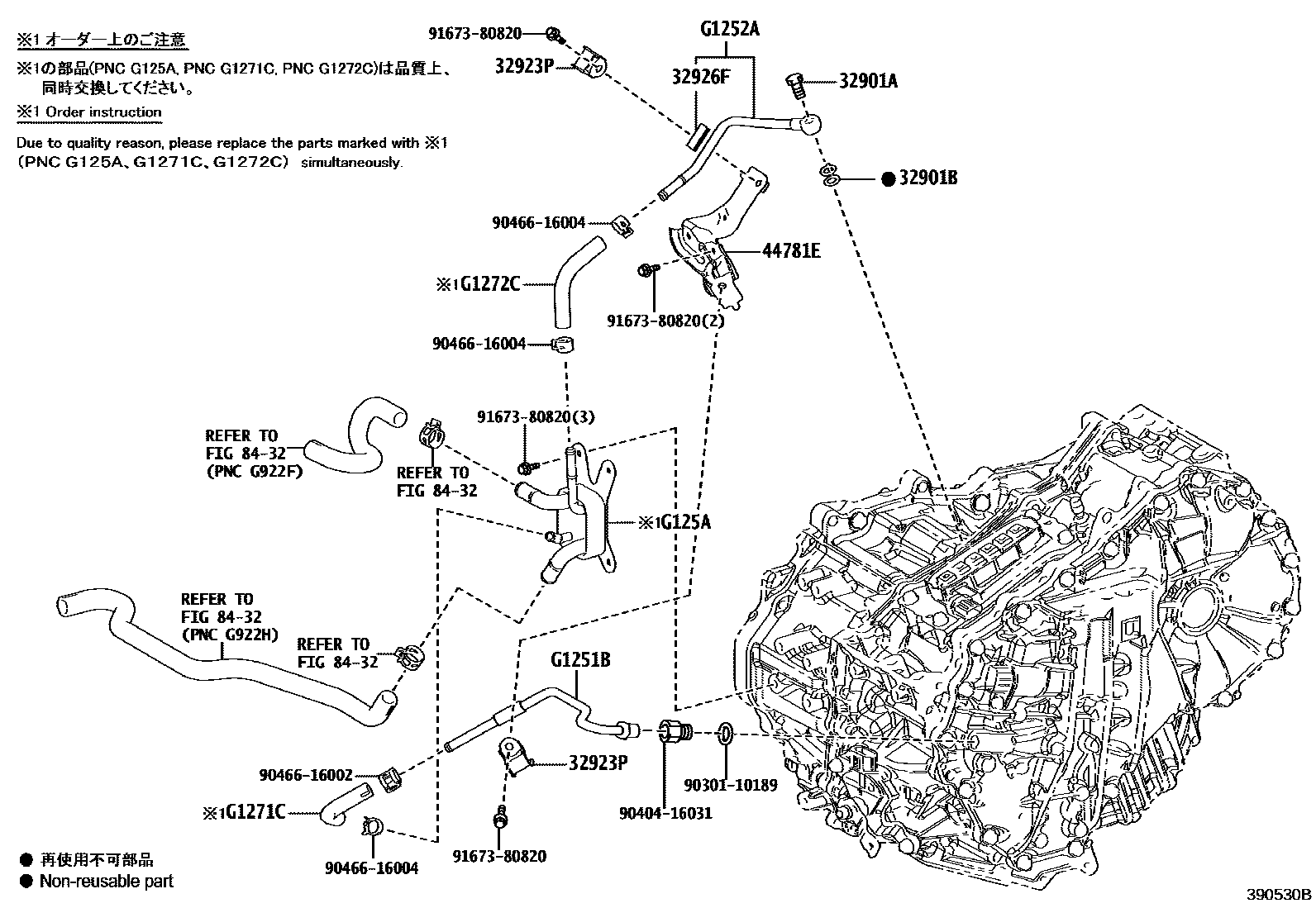

Toyota COROLLA SPORT — OIL COOLER & TUBE (HEV OR BEV OR FCEV)

32901ABOLT, UNION(FOR OIL COOLER)

main90401-12039iZWE211¥390201806-202005

main90401-12039iZWE213¥390201806

32901BGASKET(FOR OIL COOLER UNION)

main90430-12037iZWE211¥80201806-202005

main90430-12037iZWE213¥80201806

32923PCLAMP, OIL COOLER TUBE, NO.1

main32923-52040iZWE211¥200201806-202005

main32923-52040iZWE213¥200201806

32926FCUSHION, OIL COOLER TUBE

main32926-30020iZWE211¥170201806-202005

main32926-30020iZWE213¥170201806

44781EBRACKET, HOSE

main44781-47010iZWE211¥820201806-202005

main44781-47010iZWE213¥820201806

8432

G1251BPIPE, MOTOR COOLING, NO.1

mainG125147010iZWE211201806-202005

mainG125147010iZWE213201806

G1252APIPE, MOTOR COOLING, NO.2

mainG125247010iZWE211201806-202005

mainG125247010iZWE213201806

G125ACOOLER, MOTOR COOLING

mainG125A47010iZWE211201806-202005

mainG125A47010iZWE213201806

G1271CHOSE, MOTOR COOLING, NO.1

mainG127147010iZWE211201806-202005

mainG127147010iZWE213201806

G1272CHOSE, MOTOR COOLING, NO.2

mainG127247010iZWE211201806-202005

mainG127247010iZWE213201806

9030110189

main90301-10189¥170

9040416031

main90404-16031¥340

9046616002

main90466-16002¥220

9046616004

main90466-16004¥180

9167380820

main91673-80820¥80

16 parts on this diagram · 1 diagram in section
