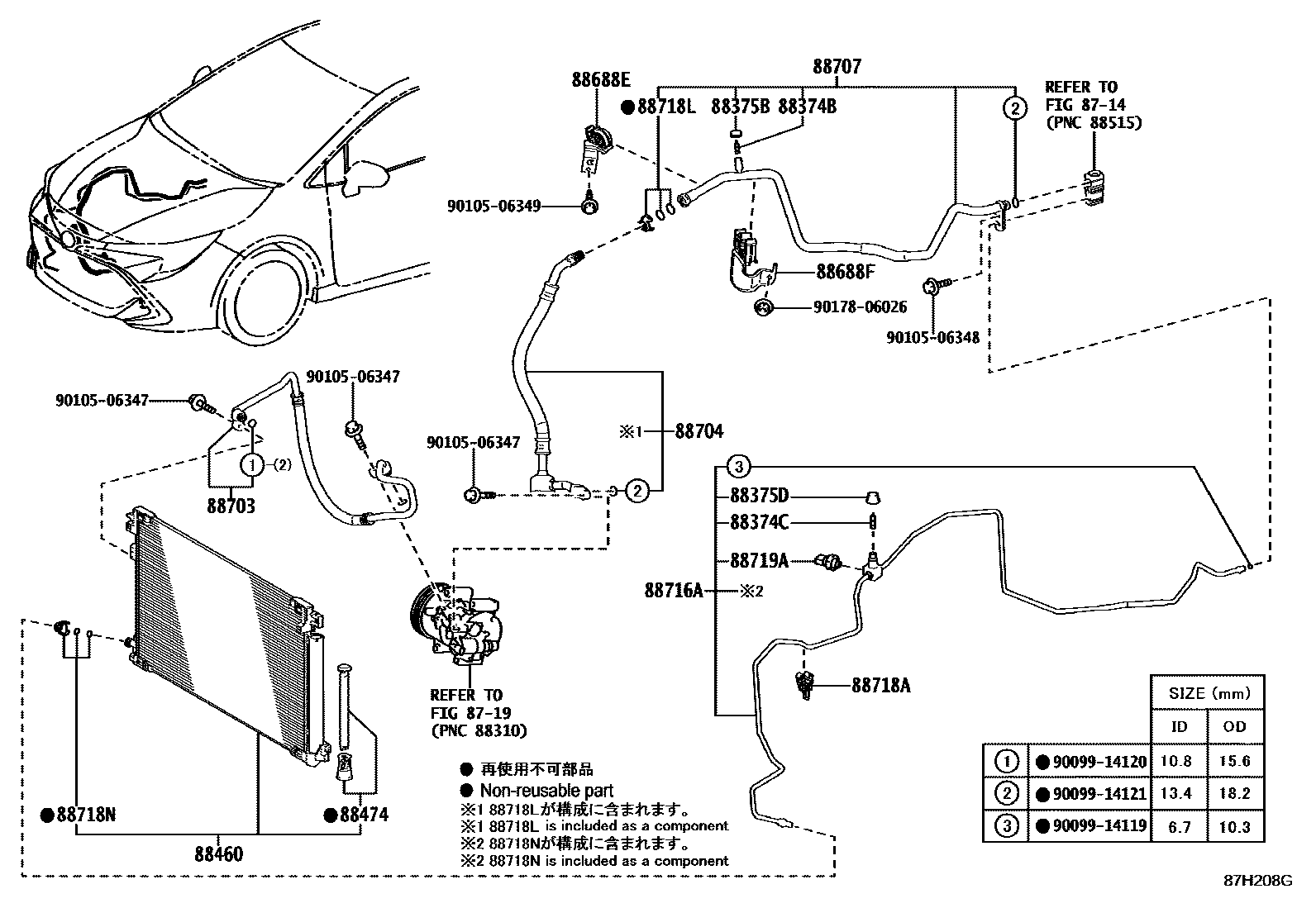

Toyota COROLLA SPORT — HEATING & AIR CONDITIONING - COOLER PIPING
8714
8719
88374BVALVE, SERVICE, NO.1
88374CVALVE, SERVICE, NO.2
88375BCAP, SERVICE VALVE, NO.1
88375DCAP, SERVICE VALVE, NO.2
88460CONDENSER ASSY, COOLER
88474DRYER, COOLER
88688EBRACKET, COOLER REFRIGERANT HOSE, NO.1
88688FBRACKET, COOLER REFRIGERANT HOSE, NO.2
88703HOSE SUB-ASSY, DISCHARGE
88704HOSE SUB-ASSY, SUCTION
88707PIPE SUB-ASSY, SUCTION
88716APIPE, COOLER REFRIGERANT LIQUID, A
88718ACLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)
88718LCLAMP, PIPING
88718NCLAMP, PIPING
88719ASENSOR, AIR CONDITIONER PRESSURE
9009914119
main90099-14119
9009914120
9009914121
main90099-14121
9010506347
9010506348
9010506349
9017806026
25 parts on this diagram · 4 diagrams in section
