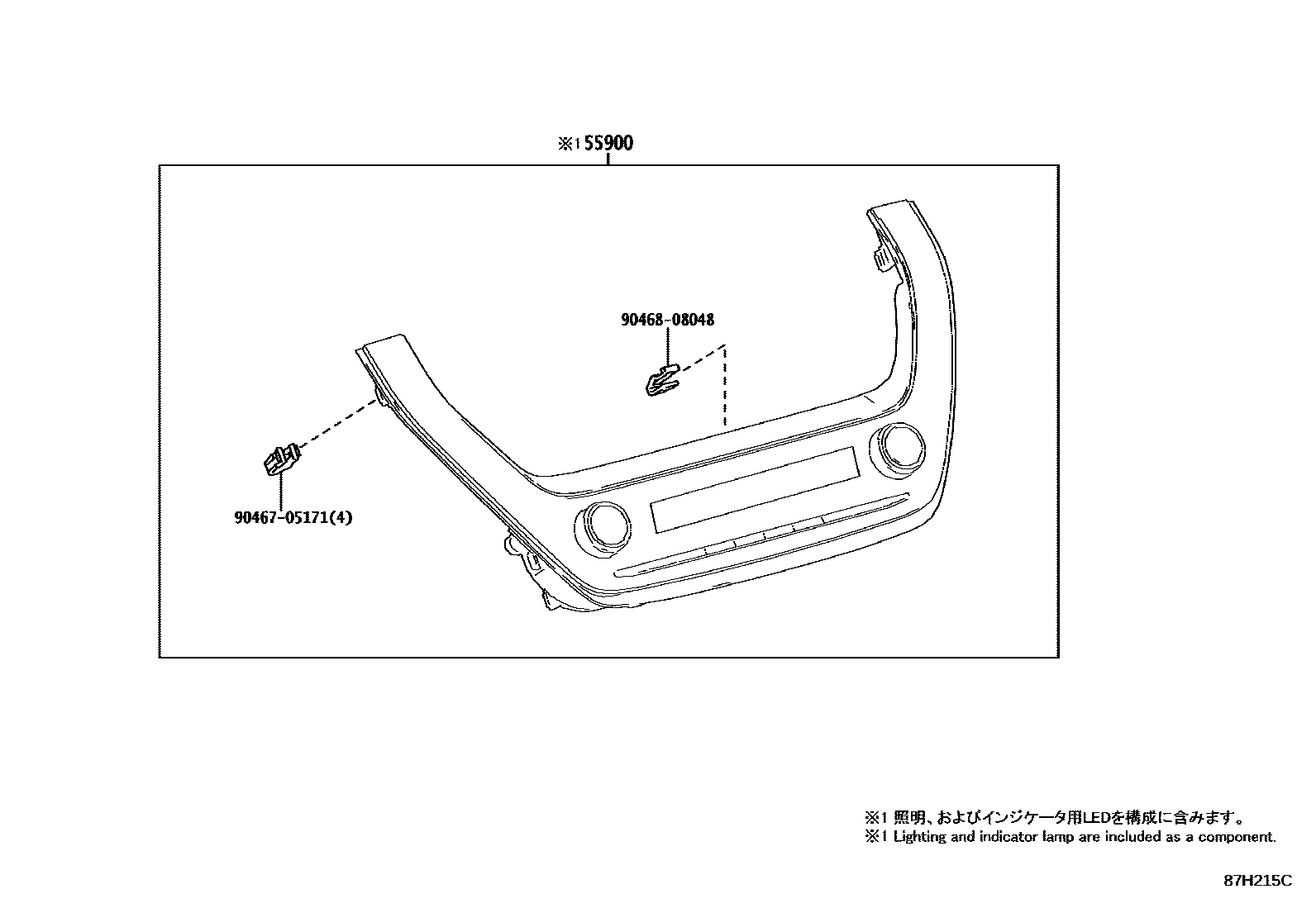

Toyota COROLLA SPORT — HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1������������� 0002 1������ 0003 1������ 0004 1���

55900CONTROL ASSY, AIR CONDITIONER

main55900-12G20-B0iNRE21#201806

SILVER,TRIM2#,3#,4#

main55900-12G30-B0iZWE211201806-202005

SILVER,TRIM2#,3#,4#

main55900-12G30-B0iZWE213201806-202111

SILVER,TRIM2#,3#,4#

main55900-12G30-B0iZWE213202111

SILVER,TRIM20,3#,4#

main55900-12G30-B1iZWE213202111

SMOKE SILVER METALLIC,TRIM20

main55900-12M20-B0iMZEA12,ZWE219202210-202301

SILVER,TRIM2#,3#,4#

sub55900-12M21¥20,300

main55900-12M21-B0iMZEA12202302-202505

SILVER,TRIM2#,3#

main55900-12M21-B0iZWE219202302

SILVER,TRIM2#,3#

9046705171

main90467-05171¥60

9046808048

main90468-08048¥60

3 parts on this diagram · 4 diagrams in section
