Toyota COROLLA SPORT — HEADLAMP

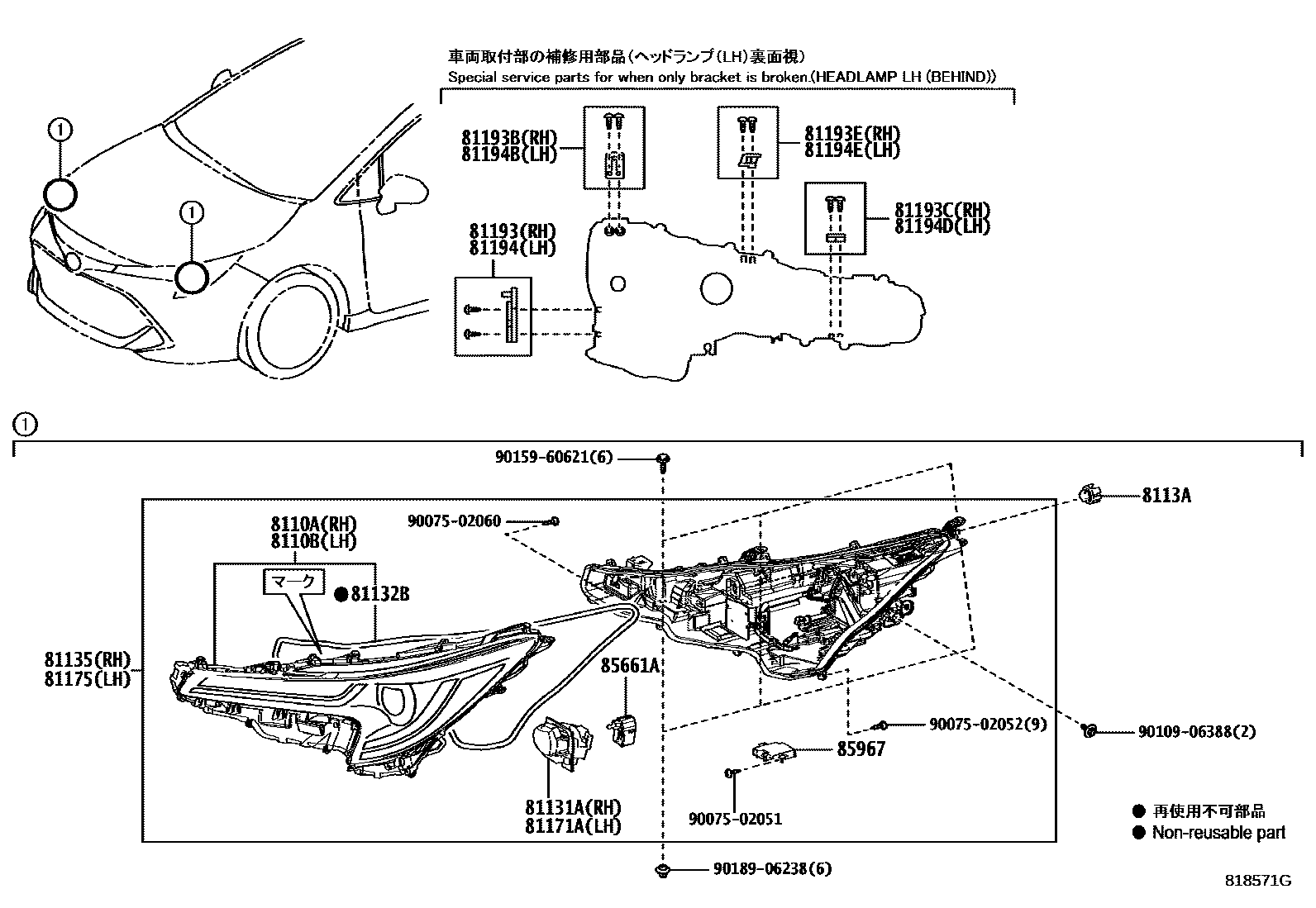

Parts diagram

8110ALENS SUB-ASSY, HEADLAMP, RH

main8110A-12M10i¥22,700201806-201810

main8110A-12M11i¥18,900201810-202101

main8110A-12M40i¥17,000202101-202505

8110BLENS SUB-ASSY, HEADLAMP, LH

main8110B-12G90i¥17,000202101-202505

main8110B-12M10i¥22,700201806-201810

main8110B-12M11i¥18,900201810-202101

81131AUNIT, HEADLAMP, RH

main81130-12M10i¥22,500201806-202505

81132BGASKET, HEADLAMP LENS

main81132-48C30i¥2,230201806-202505

81135UNIT ASSY, HEADLAMP, RH

main81105-12M10i¥104,000201806-201810

main81105-12M11i¥86,600201810-202101

main81105-12M40i¥73,200202101-202505

8113ALED, HEADLAMP FRONT TURN SIGNAL

main81536-12D30i¥3,670201806-202505

81171AUNIT, HEADLAMP, LH

main81170-12M10i¥22,500201806-202505

81175UNIT ASSY, HEADLAMP, LH

main81106-12G90i¥73,200202101-202505

main81106-12M10i¥104,000201806-201810

main81106-12M11i¥86,600201810-202101

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-12250i¥700201806-202505

81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2

main81193-12260i¥440201806-202505

81193CRETAINER, RH HEADLAMP PROTECTOR, UPPER RH

main81193-12270i¥390201806-202505

81193ERETAINER, HEADLAMP PROTECTOR, UPPER RH NO.3

main81193-12280i¥440201806-202505

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-12250i¥700201806-202505

81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2

main81194-12260i¥440201806-202505

81194DRETAINER, LH HEADLAMP PROTECTOR, UPPER LH

main81194-12270i¥390201806-202505

81194ERETAINER, HEADLAMP PROTECTOR, UPPER LH NO.3

main81194-12280i¥440201806-202505

85661AMOTOR, HEADLAMP LEVELING

main85661-48050i¥3,710201806-202505

85967COMPUTER, LIGHT CONTROL

main85967-12020i¥6,700201806-202505

9007502051

main90075-02051¥60

9007502052

main90075-02052¥60

9007502060

main90075-02060¥60

9010906388

main90109-06388¥70

9015960621

main90159-60621¥60

9018906238

main90189-06238¥100

24 parts on this diagram · 3 diagrams in section
