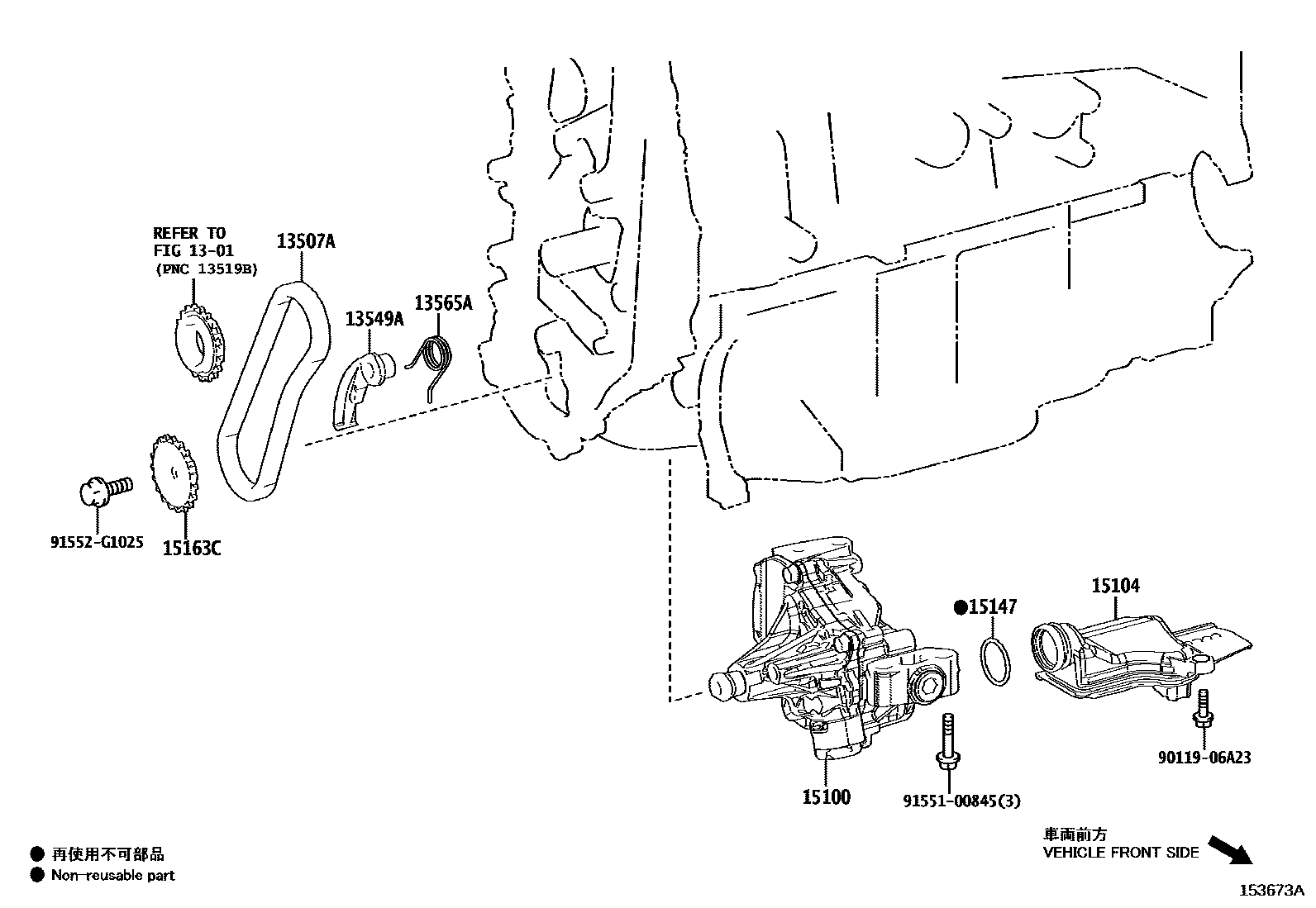

Toyota COROLLA SPORT — ENGINE OIL PUMP

0001 1 0002 1 0003 1

1301

13507ACHAIN SUB-ASSY, OIL PUMP DRIVE

main13507-24020iM20AFKS..MZEA12¥4,150202210-202505

13549APLATE, CHAIN TENSIONER

main13549-25020iM20AFKS..MZEA12¥550202210-202505

13565ASPRING, CHAIN DAMPER

main13565-25010iM20AFKS..MZEA12¥220202210-202505

15100PUMP ASSY, OIL

main15100-24020iM20AFKS..MZEA12¥11,800202210-202505

main15100-37060i2ZRFXE..ZWE211¥12,500201806-202107

sub15100-37070¥11,300

main15100-37070i2ZRFXE..ZWE213¥11,300202108

main15100-47050i8NRFTS..NRE21#¥11,000201806

15104STRAINER SUB-ASSY, OIL

main15104-24010iM20AFKS..MZEA12¥1,200202210-202505

15147GASKET, OIL STRAINER

main15147-25010iM20AFKS..MZEA12¥340202210-202505

15163GEAR, OIL PUMP DRIVE SHAFT

main15163-28010i2ZRFXE..ZWE211¥390201806-202005

main15163-33010i8NRFTS..NRE21#¥540201806

15163CSPROCKET, OIL PUMP DRIVE SHAFT

main15163-25010iM20AFKS..MZEA12¥660202210-202505

9011906A23

main90119-06A23¥60

9155100845

main91551-00845¥100

91552G1025

main91552-G1025¥170

12 parts on this diagram · 3 diagrams in section
