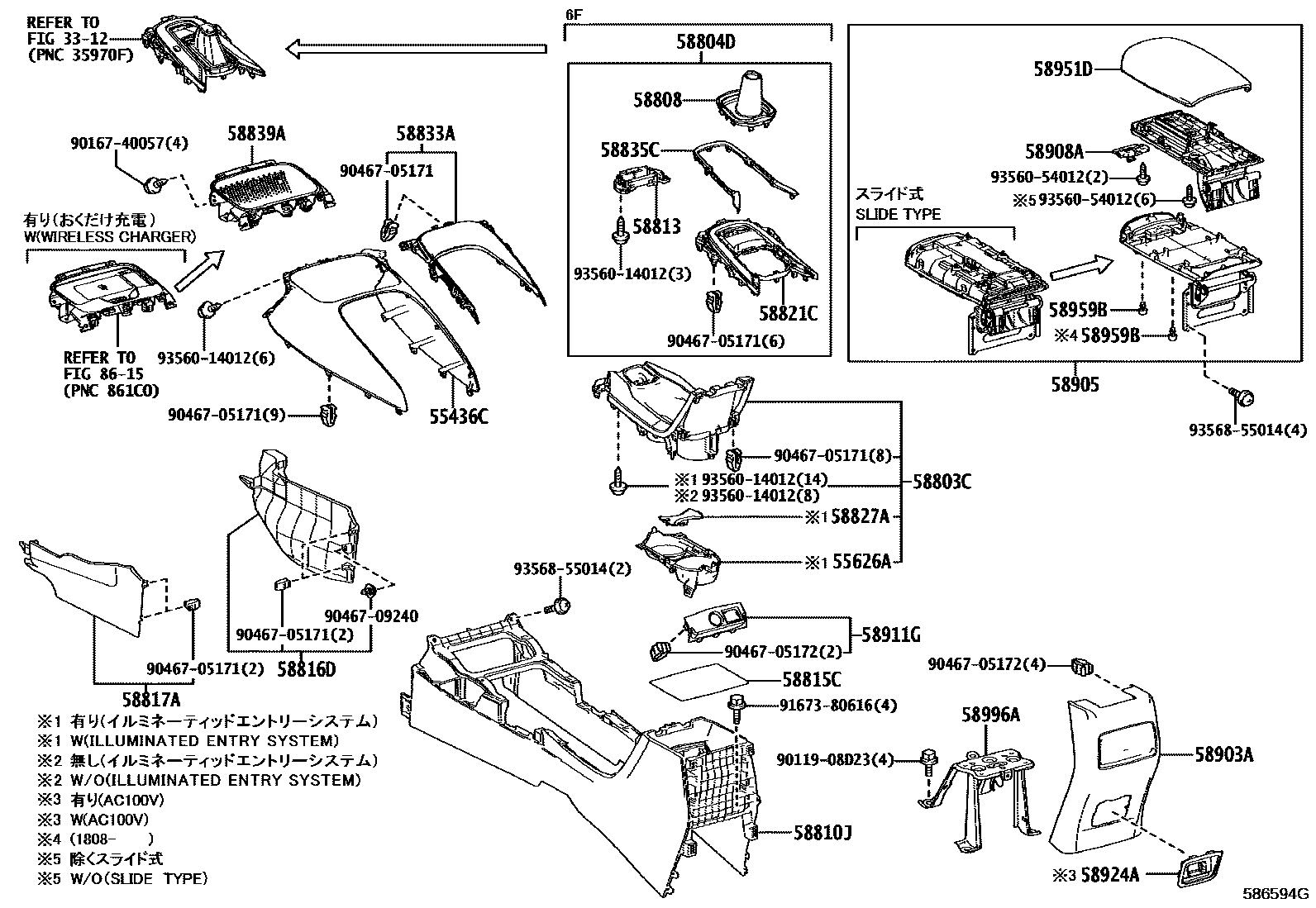

Toyota COROLLA SPORT — CONSOLE BOX & BRACKET
3312
55436CPANEL, INSTRUMENT PANEL FINISH, END LH
BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM2#,3#,4#
55626ARETAINER, INSTRUMENT PANEL UNDER TRAY WALL
58803CBOX SUB-ASSY, CONSOLE CUP HOLDER
58804DPANEL SUB-ASSY, CONSOLE, UPPER FRONT
BLACK,TRIM2#,3#,4#
58808COVER SUB-ASSY, SHIFTING HOLE
BLACK,TRIM2#,3#,4#
58810JBOX ASSY, CONSOLE
BLACK,TRIM2#,3#,4#
BLACK,TRIM2#,3#,4#
58813BOX, CONSOLE, UPPER
58815CCARPET, CONSOLE BOX
58816DINSERT, CONSOLE BOX, FRONT NO.1
BLACK,TRIM2#,3#,4#
58817AINSERT, CONSOLE BOX, FRONT NO.2
BLACK,TRIM2#,3#,4#
58821CPANEL, CONSOLE, UPPER
58827AGARNISH, CONSOLE BOX POCKET
58833ACOVER, CONSOLE, UPPER
BLACK,TRIM2#
BLACK,TRIM20
SENSUAL RED,TRIM3#
SADDLE TAN,TRIM4#
58835CORNAMENT, CONSOLE BOX
SILVER,TRIM2#,3#,4#
58839ACOVER, CONSOLE BOX HOLE
BLACK,TRIM2#,4#
BLACK,TRIM2#
58903APANEL SUB-ASSY, CONSOLE REAR END
BLACK,TRIM2#,3#,4#
BLACK,TRIM2#,3#,4#
BLACK,TRIM2#,3#,4#
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
BLACK/DK.ROSE,TRIM20,3#
BLACK/GRAY,TRIM20
BLACK/TERRA COTTA,TRIM4#
BLACK/BLACK,TRIM20
BLACK/RED,TRIM20,3#
BLACK/TERRA COTTA,TRIM4#
BLACK/DK.ROSE,TRIM20,3#
BLACK/GRAY,TRIM20
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58911GPANEL, BOX, NO.1
BLACK,TRIM2#,3#,4#
58924APANEL, CONSOLE REAR END, NO.2
BLACK,TRIM2#,3#,4#
58951DDOOR, CONSOLE COMPARTMENT, OUTER
BLACK/RED,TRIM20,3#
BLACK,TRIM20,3#
BLACK,TRIM20
BLACK,TRIM4#
BLACK,TRIM20,3#
BLACK,TRIM20
BLACK,TRIM4#
58959BCUSHION, CONSOLE COMPARTMENT DOOR
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
8615
9011908D23
9016740057
9046705171
9046705172
9046709240
9167380616
9356014012
9356054012
9356855014
34 parts on this diagram · 2 diagrams in section
