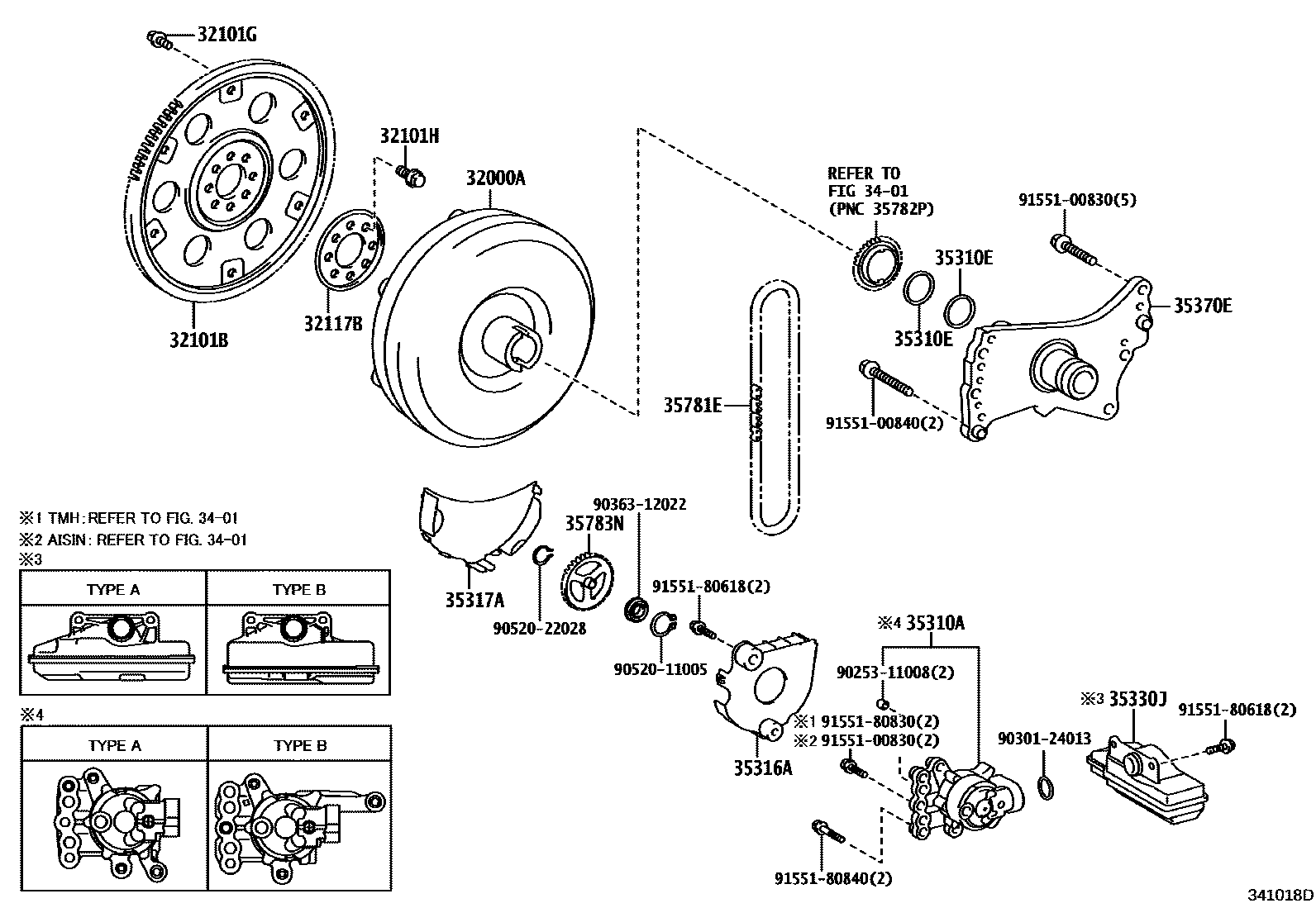

Toyota COROLLA SED (NAP) — TORQUE CONVERTER, FRONT OIL PUMP(CVT)

0001 1K120 0002 1K313 0003 1K121

32000ACONVERTER ASSY, TORQUE

main32000-12460iMZEA18..D..USA¥74,000202211

AISIN:REFER 34-01

main32000-12460iMZEA1#..L,S,Y;MZEA18..D..CND¥74,000202211-202410

AISIN:REFER 34-01

main32000-12460iMZEA12..CVT¥74,000201903-202007

AISIN:REFER 34-01

main32000-12460iMZEA1#..L,S,Y;MZEA18..D..CND¥74,000202410

AISIN:REFER 34-01

main32000-12460iMZEA12..CVT¥74,000202007-202211

AISIN:REFER 34-01

main32000-12490iZRE212..CVT¥72,300202007-202211

AISIN AW:REFER 34-01

main32000-12490iZRE212..CVT¥72,300201903-202007

AISIN AW:REFER 34-01

main32000-12500iZRE212..CVT¥74,000202007-202211

TMH:REFER FIG.34-01

main32000-12500iZRE212..CVT¥74,000201903-202007

TMH:REFER FIG.34-01

main32000-12520iMZEA18..D..USA¥74,000202211

TMH:REFER 34-01

main32000-12520iMZEA12..CVT¥74,000201903-202007

TMH:REFER 34-01

main32000-12520iMZEA12..CVT¥74,000202007-202211

TMH:REFER 34-01

main32000-12520iMZEA1#..L,S,Y;MZEA18..D..CND¥74,000202211-202410

TMH:REFER 34-01

main32000-12520iMZEA1#..L,S,Y;MZEA18..D..CND¥74,000202410

TMH:REFER 34-01

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-02040iZRE212..CVT202007-202211

(L)

main32101-02040iZRE212..CVT201903-202007

(L)

main32101-02050iMZEA12..CVT202007-202211

(L)

main32101-02050iMZEA12..CVT201903-202007

(L)

main32101-02050iMZEA1#..L,S,Y;MZEA18..D..CND202410

(L)

main32101-02050iMZEA1#..L,S,Y;MZEA18..D..CND202211-202410

(L)

main32101-02050iMZEA18..D..USA202211

(L)

main32101-12100iZRE212..CVT¥11,600201903-202007

(J)

main32101-12100iZRE212..CVT¥11,600202007-202211

(J)

main32101-12120iMZEA12..CVT¥13,400202007-202211

(J)

main32101-12120iMZEA12..CVT¥13,400201903-202007

(J)

main32101-12120iMZEA1#..L,S,Y;MZEA18..D..CND¥13,400202211-202410

(J)

main32101-12120iMZEA1#..L,S,Y;MZEA18..D..CND¥13,400202410

(J)

main32101-12120iMZEA18..D..USA¥13,400202211

(J)

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iZRE212..CVT¥80201903-202007

*8-1.25PX12-8.4,BLACK

main90109-08113iZRE212..CVT¥80202007-202211

*8-1.25PX12-8.4,BLACK

main90109-09001iMZEA1#..L,S,Y;MZEA18..D..CND¥80202211-202410

*9-1.25PX12.4-7.3,BLACK

main90109-09001iMZEA12..CVT¥80201903-202007

*9-1.25PX12.4-7.3,BLACK

main90109-09001iMZEA12..CVT¥80202007-202211

*9-1.25PX12.4-7.3,BLACK

main90109-09001iMZEA18..D..USA¥80202211

*9-1.25PX12.4-7.3,BLACK

main90109-09001iMZEA1#..L,S,Y;MZEA18..D..CND¥80202410

*9-1.25PX12.4-7.3,BLACK

main90119-08498iZRE212..CVT¥80201903-202007

*8-1.25PX12-8,SILVER WHITE

main90119-08498iZRE212..CVT¥80202007-202211

*8-1.25PX12-8,SILVER WHITE

main90119-09025iMZEA12..CVT¥80202007-202211

*9-1.25PX12.4-8.4,SILVER WHITE

main90119-09025iMZEA1#..L,S,Y;MZEA18..D..CND¥80202410

*9-1.25PX12.4-8.4,SILVER WHITE

main90119-09025iMZEA12..CVT¥80201903-202007

*9-1.25PX12.4-8.4,SILVER WHITE

main90119-09025iMZEA1#..L,S,Y;MZEA18..D..CND¥80202211-202410

*9-1.25PX12.4-8.4,SILVER WHITE

main90119-09025iMZEA18..D..USA¥80202211

*9-1.25PX12.4-8.4,SILVER WHITE

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048iZRE212..CVT¥130202104-202211

main90105-10048iZRE212..CVT¥130201903-202007

main90105-10048iZRE212..CVT¥130202007-202104

main90105-12404iMZEA1#..L,S,Y;MZEA18..D..CND¥100202211-202410

main90105-12404iMZEA18..D..USA¥100202211

main90105-12404iMZEA1#..L,S,Y;MZEA18..D..CND¥100202410

main90105-12404iMZEA12..CVT¥100201903-202007

main90105-12404iMZEA12..CVT¥100202007-202211

32117BSPACER, DRIVE PLATE, REAR

main32117-02030iMZEA1#..L,S,Y;MZEA18..D..CND202211-202410

(L)

main32117-02030iMZEA1#..L,S,Y;MZEA18..D..CND202410

(L)

main32117-02030iMZEA18..D..USA202211

(L)

main32117-02030iMZEA12..CVT201903-202007

(L)

main32117-02030iMZEA12..CVT202007-202211

(L)

main32117-12040iZRE212..CVT¥800202007-202211

main32117-12040iZRE212..CVT¥800201903-202007

main32117-33010iMZEA12..CVT¥920202007-202211

(J)

main32117-33010iMZEA1#..L,S,Y;MZEA18..D..CND¥920202211-202410

(J)

main32117-33010iMZEA1#..L,S,Y;MZEA18..D..CND¥920202410

(J)

main32117-33010iMZEA18..D..USA¥920202211

(J)

main32117-33010iMZEA12..CVT¥920201903-202007

(J)

3401

35310APUMP ASSY, FRONT OIL

main35310-12160iZRE212..CVT202007-202211

main35310-12160iZRE212..CVT201903-202007

AISIN AW:REFER 34-01

main35310-12170iZRE212..CVT¥26,500202007-202211

TMH:REFER FIG.34-01

main35310-12170iZRE212..CVT¥26,500201903-202007

TMH:REFER FIG.34-01

main35310-12200iMZEA12..CVT¥16,000201903-202007

TMH:REFER 34-01,AISIN:REFER 34-01

main35310-12200iMZEA12..CVT¥16,000202007-202203

TYPE A,TMH:REF.34-01

main35310-12200iMZEA12..CVT¥16,000202007-202211

AISIN:REFER 34-01

main35310-12200iMZEA1#¥16,000202211-202309

AISIN:REFER 34-01

main35310-28050iMZEA12..CVT¥14,500202106-202211

TYPE B,TMH:REF.34-01

main35310-28050iMZEA1#¥14,500202211-202309

TMH:REFER 34-01

main35310-33170iMZEA1#202309-202311

AISIN:REFER 34-01

sub35310-42010

main35310-42010iMZEA18..D..USA202311

AISIN:REFER 34-01

main35310-42010iMZEA1#..L,S,Y;MZEA18..D..CND202410

TMH:REFER 34-01,AISIN:REFER 34-01

main35310-42010iMZEA1#..L,S,Y;MZEA18..D..CND202309-202410

TMH:REFER 34-01

main35310-42010iMZEA1#..L,S,Y;MZEA18..D..CND202311-202410

AISIN:REFER 34-01

main35310-42010iMZEA18..D..USA202309

TMH:REFER 34-01

35310ESEAL, TYPE T OIL (FOR FRONT OIL PUMP)

main35617-12031iZRE212..CVT¥210202007-202211

TMH:REFER FIG.34-01

main35617-12031iZRE212..CVT¥210201903-202007

TMH:REFER FIG.34-01

main35617-12060iMZEA12..CVT¥160202007-202211

TMH:REFER 34-01

main35617-12060iMZEA1#¥160202211-202309

TMH:REFER 34-01

main35617-12060iMZEA12..CVT¥160201903-202007

TMH:REFER 34-01

main35617-12070iMZEA1#¥160202211-202309

AISIN:REFER 34-01

main35617-12070iMZEA12..CVT¥160202007-202211

AISIN:REFER 34-01

main35617-12070iMZEA12..CVT¥160201903-202007

AISIN:REFER 34-01

main35617-52060iZRE212..CVT¥210201903-202007

AISIN AW:REFER 34-01

main35617-52060iZRE212..CVT¥210202007-202211

35316APLATE, TRANSMISSION OIL PUMP SEPARATOR, NO.1

main35316-12010iMZEA1#¥980202211-202309

TMH:REFER 34-01

main35316-12010iMZEA1#..L,S,Y;MZEA18..D..CND¥980202410

TMH:REFER 34-01

main35316-12010iMZEA12..CVT¥980201903-202007

TMH:REFER 34-01

main35316-12010iMZEA12..CVT¥980202007-202211

TMH:REFER 34-01

main35316-12010iMZEA1#..L,S,Y;MZEA18..D..CND¥980202309-202410

main35316-12010iMZEA18..D..USA¥980202309

main35316-12020iMZEA1#..L,S,Y;MZEA18..D..CND¥980202211-202410

AISIN:REFER 34-01

main35316-12020iMZEA12..CVT¥980201903-202007

AISIN:REFER 34-01

main35316-12020iMZEA12..CVT¥980202007-202211

AISIN:REFER 34-01

main35316-12020iMZEA18..D..USA¥980202211

AISIN:REFER 34-01

main35316-12020iMZEA1#..L,S,Y;MZEA18..D..CND¥980202410

AISIN:REFER 34-01

35317APLATE, TRANSMISSION OIL PUMP SEPARATOR, NO.2

main35317-12010iMZEA12..CVT¥590202007-202211

TMH:REFER 34-01

main35317-12010iMZEA1#..L,S,Y;MZEA18..D..CND¥590202410

TMH:REFER 34-01

main35317-12010iMZEA12..CVT¥590201903-202007

TMH:REFER 34-01

main35317-12010iMZEA1#..L,S,Y;MZEA18..D..CND¥590202211-202410

TMH:REFER 34-01

main35317-12010iMZEA18..D..USA¥590202211

TMH:REFER 34-01

main35317-12020iMZEA12..CVT¥590202007-202211

AISIN:REFER 34-01

main35317-12020iMZEA18..D..USA¥590202211

AISIN:REFER 34-01

main35317-12020iMZEA1#..L,S,Y;MZEA18..D..CND¥590202410

AISIN:REFER 34-01

main35317-12020iMZEA12..CVT¥590201903-202007

AISIN:REFER 34-01

main35317-12020iMZEA1#..L,S,Y;MZEA18..D..CND¥590202211-202410

AISIN:REFER 34-01

35330JSTRAINER ASSY, OIL

main35330-12080iMZEA12..CVT¥3,950202106-202203

TYPE A,TMH:REF.34-01

main35330-12080iMZEA12..CVT¥3,950202007-202106

TMH:REFER 34-01

main35330-12080iMZEA12..CVT¥3,950201903-202007

TMH:REFER 34-01

main35330-12090iMZEA12..CVT¥3,580202007-202211

AISIN:REFER 34-01

main35330-12090iMZEA12..CVT¥3,580201903-202007

AISIN:REFER 34-01

main35330-12090iMZEA1#¥3,580202211-202309

AISIN:REFER 34-01

main35330-28040iMZEA1#..L,S,Y;MZEA18..D..CND¥3,580202410

main35330-28040iMZEA12..CVT¥3,580202203-202211

TMH:REFER 34-01

main35330-28040iMZEA1#..L,S,Y;MZEA18..D..CND¥3,580202211-202410

TMH:REFER 34-01

main35330-28040iMZEA1#..L,S,Y;MZEA18..D..CND¥3,580202309-202410

main35330-28040iMZEA18..D..USA¥3,580202211

TMH:REFER 34-01

main35330-28040iMZEA18..D..USA¥3,580202309

main35330-28040iMZEA12..CVT¥3,580202106-202203

TYPE B,TMH:REF.34-01

35370ESHAFT ASSY, STATOR (CVT)

main35370-12120iMZEA1#¥14,900202211-202309

TMH:REFER 34-01

main35370-12120iMZEA12..CVT¥14,900201903-202007

TMH:REFER 34-01

main35370-12120iMZEA1#..L,S,Y;MZEA18..D..CND¥14,900202309-202410

main35370-12120iMZEA18..D..USA¥14,900202309

main35370-12120iMZEA12..CVT¥14,900202007-202211

TMH:REFER 34-01

main35370-12120iMZEA1#..L,S,Y;MZEA18..D..CND¥14,900202410

TMH:REFER 34-01

main35370-12130iMZEA1#..L,S,Y;MZEA18..D..CND¥14,900202211-202410

AISIN:REFER 34-01

main35370-12130iMZEA12..CVT¥14,900201903-202007

AISIN:REFER 34-01

main35370-12130iMZEA12..CVT¥14,900202007-202211

AISIN:REFER 34-01

main35370-12130iMZEA18..D..USA¥14,900202211

AISIN:REFER 34-01

main35370-12130iMZEA1#..L,S,Y;MZEA18..D..CND¥14,900202410

AISIN:REFER 34-01

35781ECHAIN, TRANSMISSION DRIVE

main35781-12010iMZEA12..CVT¥5,100202007-202205

AISIN:REFER 34-01,TMH:REFER 34-01

main35781-12010iMZEA12..CVT¥5,100201903-202007

main35781-33010iMZEA12..CVT¥1,570202206-202209

AISIN:REFER 34-01

sub35781-42010¥1,420

main35781-42010iMZEA1#..L,S,Y;MZEA18..D..CND¥1,420202211-202410

main35781-42010iMZEA1#..L,S,Y;MZEA18..D..CND¥1,420202410

main35781-42010iMZEA18..D..USA¥1,420202211

main35781-42010iMZEA12..CVT¥1,420202206-202211

TMH:REFER 34-01

main35781-42010iMZEA12..CVT¥1,420202209-202211

AISIN:REFER 34-01

35783NSPROCKET, DRIVEN

main35783-12060iMZEA18..D..USA¥1,310202211

main35783-12060iMZEA1#..L,S,Y;MZEA18..D..CND¥1,310202410

main35783-12060iMZEA12..CVT¥1,310201903-202007

main35783-12060iMZEA12..CVT¥1,310202007-202211

main35783-12060iMZEA1#..L,S,Y;MZEA18..D..CND¥1,310202211-202410

9025311008

main90253-11008¥70

9030124013

main90301-24013¥140

9036312022

main90363-12022¥640

9052011005

main90520-11005¥70

9052022028

main90520-22028¥90

9155100830

main91551-00830¥80

9155100840

main91551-00840¥80

9155180618

main91551-80618¥60

9155180830

main91551-80830¥80

9155180840

main91551-80840¥120

24 parts on this diagram · 3 diagrams in section
