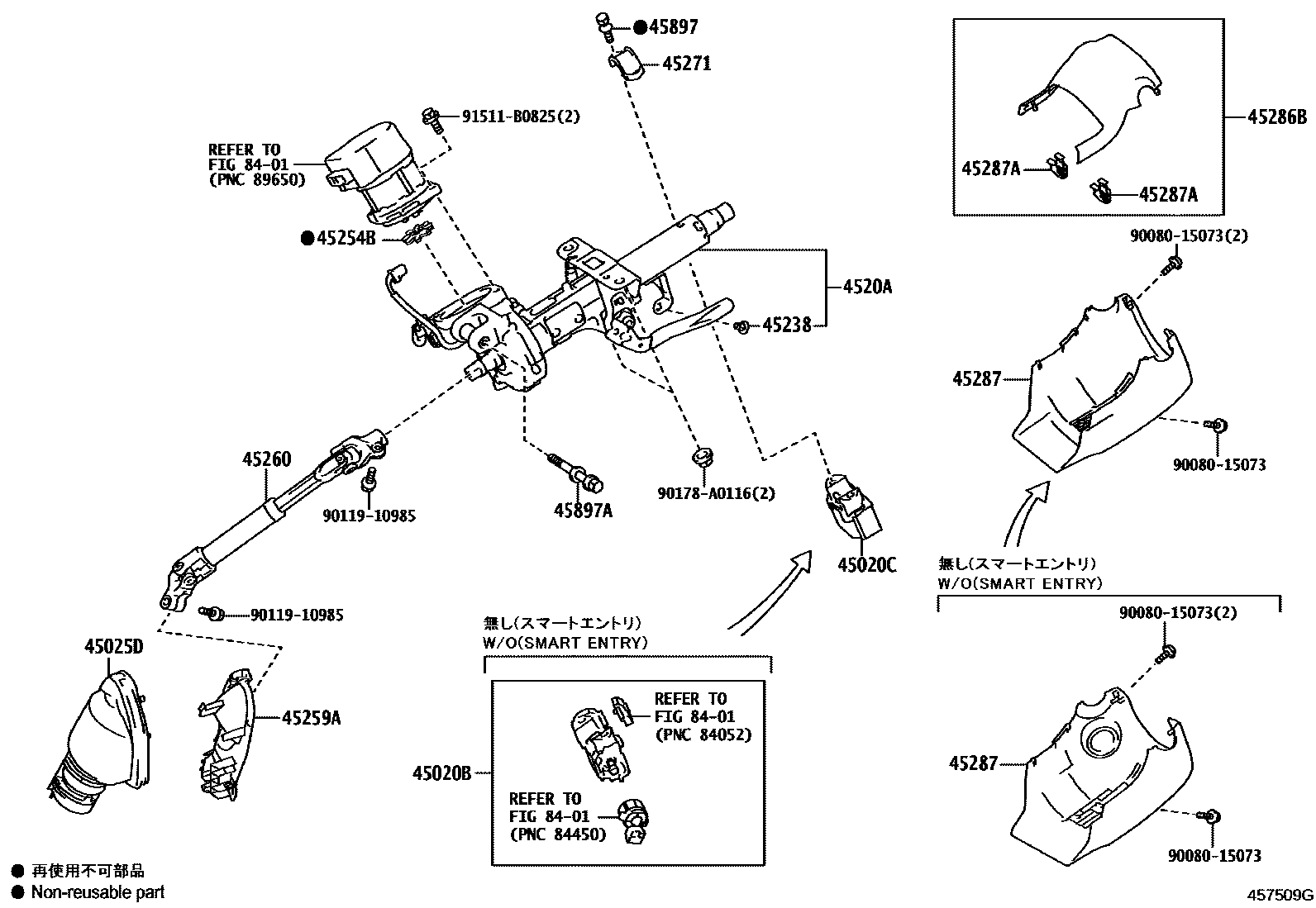

Toyota COROLLA SED (NAP) — STEERING COLUMN & SHAFT
45020BACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
WIRELESS DOOR LOCK-WITH
LE PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)
45020CACTUATOR ASSY, STEERING LOCK(W/ECU)
WIRELESS DOOR LOCK-WITH(SMART ENTRY)
LE PACKAGE2&WIRELESS DOOR LOCK-WITH(SMART ENTRY)
LE PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING
WIRELESS DOOR LOCK-WITH
WIRELESS DOOR LOCK-WITH(SMART ENTRY)
LE PACKAGE2&WIRELESS DOOR LOCK-WITH(SMART ENTRY)
LE PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)
LE PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY),*614
*614
*614
45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)
45254BDAMPER, ELECTRIC POWER STEERING MOTOR SHAFT
45259ASHEET, COLUMN HOLE COVER SILENCER
45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45271CLAMP, STEERING COLUMN, UPPER
LE PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)
45286BCOVER, STEERING COLUMN, UPR
WIRELESS DOOR LOCK-WITH,BLACK,TRIM1#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#
WIRELESS DOOR LOCK-WITH,BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
LE PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY),BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,2#
BLACK,TRIM1#,2#
WIRELESS DOOR LOCK-WITH(SMART ENTRY),BLACK,TRIM0#,1#,2#
WIRELESS DOOR LOCK-WITH(SMART ENTRY),BLACK,TRIM1#,2#
WIRELESS DOOR LOCK-WITH(SMART ENTRY),BLACK,TRIM2#
LE PACKAGE2&WIRELESS DOOR LOCK-WITH(SMART ENTRY),BLACK,TRIM0#,1#,2#
45287COVER, STEERING COLUMN, LWR
BLACK,TRIM2#
WIRELESS DOOR LOCK-WITH,BLACK,TRIM2#
BLACK,TRIM1#,2#
BLACK,TRIM0#,1#,2#
WIRELESS DOOR LOCK-WITH,BLACK,TRIM1#,2#
BLACK,TRIM2#
BLACK,TRIM1#,2#
WIRELESS DOOR LOCK-WITH(SMART ENTRY),BLACK,TRIM0#,1#,2#
WIRELESS DOOR LOCK-WITH(SMART ENTRY),BLACK,TRIM1#,2#
BLACK,TRIM0#,2#
WIRELESS DOOR LOCK-WITH(SMART ENTRY),BLACK,TRIM2#
LE PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY),BLACK,TRIM0#,1#,2#
LE PACKAGE2&WIRELESS DOOR LOCK-WITH(SMART ENTRY),BLACK,TRIM0#,1#,2#
45287ACLIP(FOR STEERING COLUMN COVER)
45897BOLT, STEERING LOCK SET
LE PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)
45897ABOLT, TILT STEERING PAWL SET
8401
9008015073
main90080-15073
9011910985
90178A0116
main90178-A0116
91511B0825
19 parts on this diagram · 2 diagrams in section
