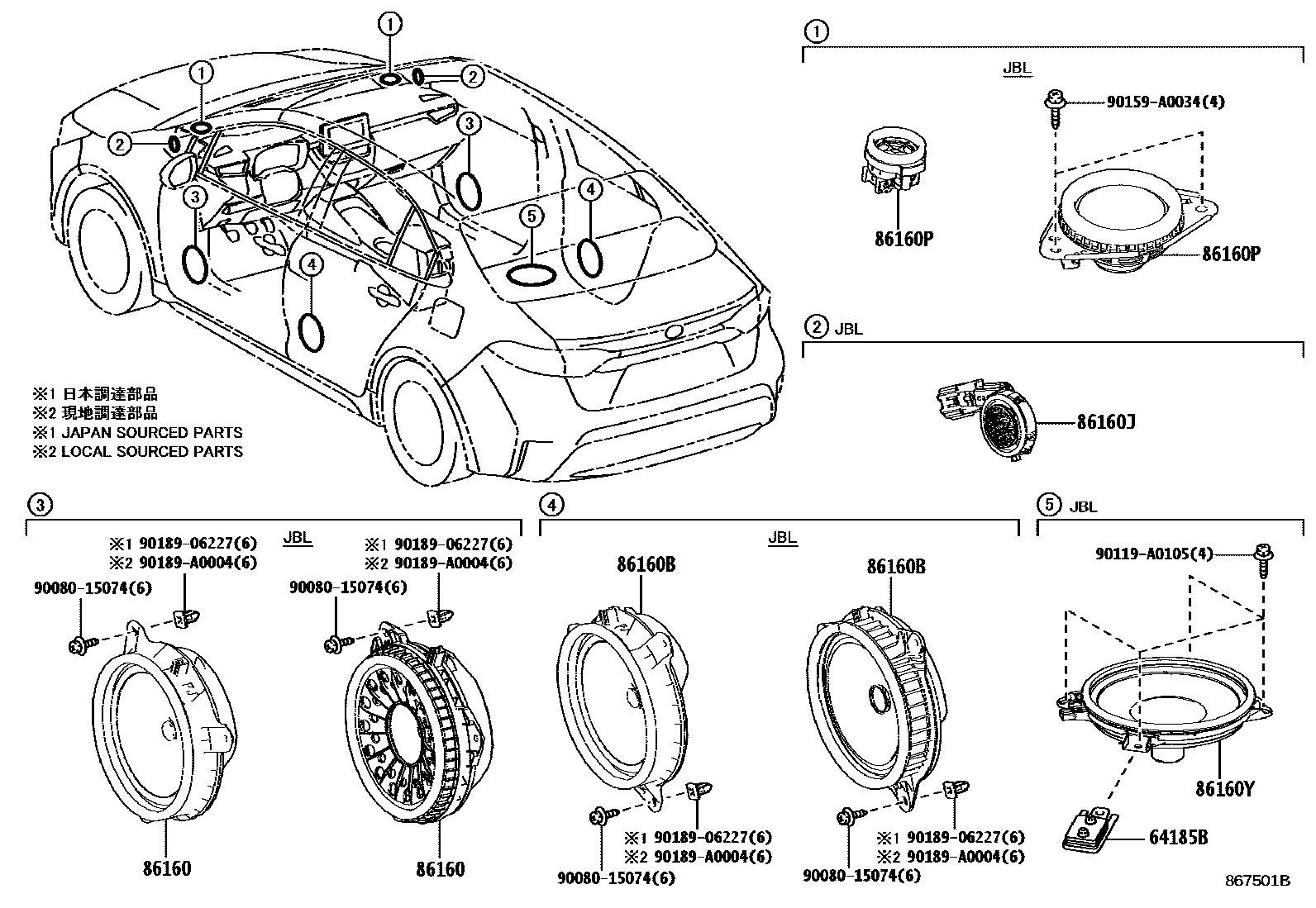

Toyota COROLLA SED (NAP) — SPEAKER

64185BDAMPER, UPPER BACK, NO.1

main64185-12011iMZEA12..S;MZEA12..Y..USA202410

AUDIO-ENTRY(10.5INCH) & JBL

86160SPEAKER ASSY, FRONT NO.1

main86160-02B40iMZEA18..D..USA202211

main86160-02B40iMZEA1#..L,S;MZEA12..Y..USA;MZEA18..D..CND202410

main86160-02B40iMZEA12,ZRE212201903-202007

main86160-02B40iMZEA12,ZRE212202007-202211

main86160-02B40iMZEA1#..L,S,Y;MZEA18..D..CND202211-202410

main86160-0WS00iMZEA12..Y..CND202410

AUDIO-ENTRY(10.5INCH) & JBL

86160BSPEAKER ASSY, REAR

main86160-02B40iMZEA18..D..USA202211

main86160-02B40iMZEA1#..L,S;MZEA12..Y..USA;MZEA18..D..CND202410

main86160-02B40iMZEA12,ZRE212202007-202211

main86160-02B40iMZEA1#..L,S,Y;MZEA18..D..CND202211-202410

main86160-02B40iMZEA12,ZRE212201903-202007

main86160-0WY50iMZEA12..S;MZEA12..Y..USA202410

AUDIO-ENTRY(10.5INCH) & JBL

86160JSPEAKER ASSY, FRONT NO.3

main86150-02090iMZEA12..Y..CND202410

RH

main86150-02090iMZEA12..Y..CND202410

AUDIO-ENTRY(10.5INCH) & JBL,RH

main86150-02150iMZEA12..Y..CND202410

LH

main86150-02150iMZEA12..Y..CND202410

AUDIO-ENTRY(10.5INCH) & JBL,LH

86160PSPEAKER ASSY, FRONT NO.2

main86150-0W670iMZEA12..Y..CND202410

AUDIO-ENTRY(10.5INCH) & JBL

main86160-0R010iMZEA1#..L,S;MZEA12..Y..USA;MZEA18..D..CND202410

main86160-0R010iMZEA12,ZRE212201903-202007

main86160-0R010iMZEA12,ZRE212202007-202211

main86160-0R010iMZEA1#..L,S,Y;MZEA18..D..CND202211-202410

main86160-0R010iMZEA18..D..USA202211

86160YSPEAKER ASSY, REAR NO.2

main86150-02101iMZEA12..Y..CND202410

AUDIO-ENTRY(10.5INCH) & JBL

9008015074

main90080-15074¥60

90119A0105

main90119-A0105

90159A0034

main90159-A0034¥90

9018906227

main90189-06227¥70

90189A0004

main90189-A0004¥70

11 parts on this diagram · 1 diagram in section
