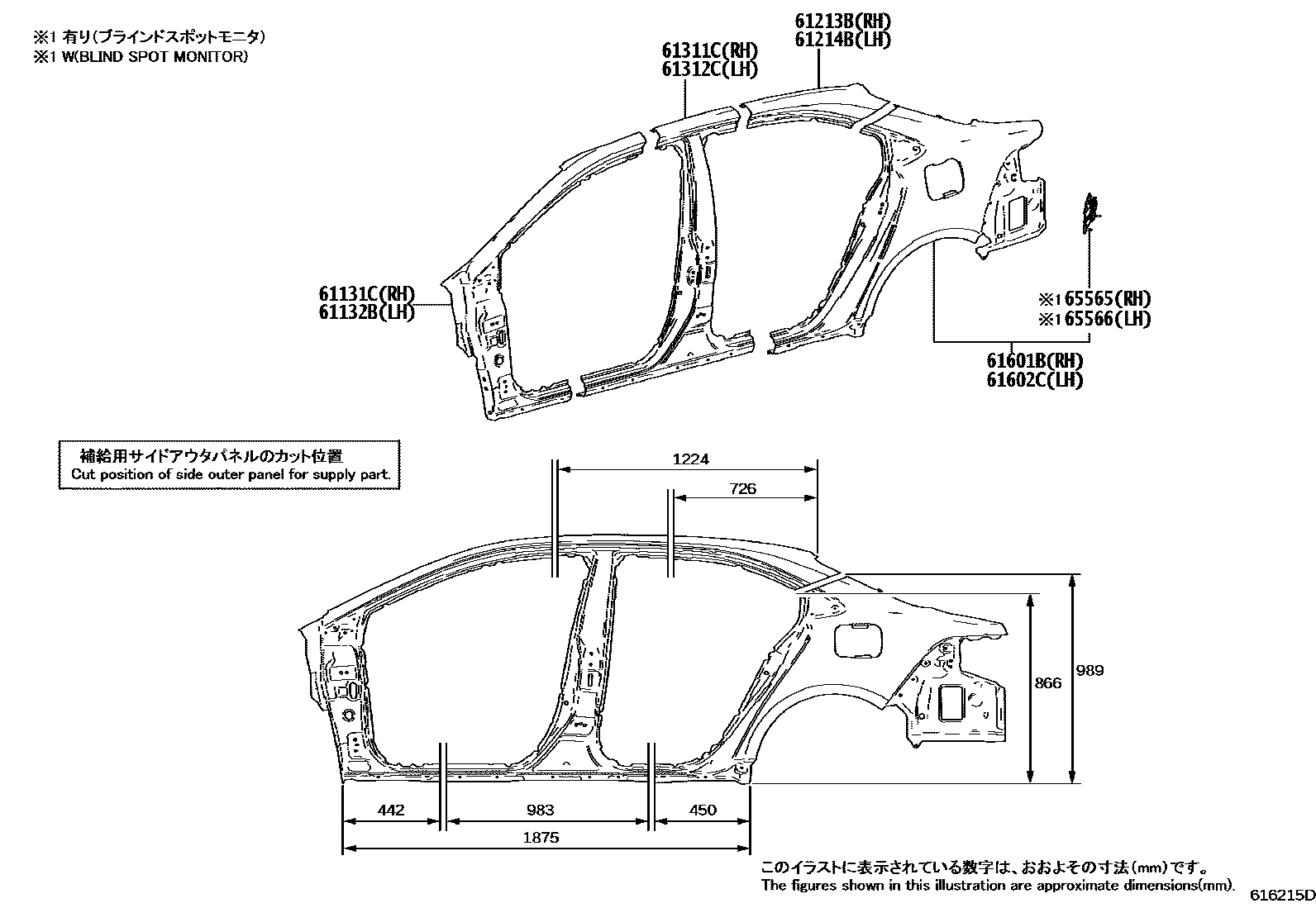

Toyota COROLLA SED (NAP) — SIDE MEMBER
61131CPILLAR, FRONT BODY, OUTER RH
61132BPILLAR, FRONT BODY, OUTER LH
61213BRAIL, ROOF SIDE, OUTER NO.2 RH
61214BRAIL, ROOF SIDE, OUTER NO.2 LH
61311CPANEL, REAR BODY FRONT OUTSIDE, RH
61312CPANEL, REAR BODY FRONT OUTSIDE, LH
61601BPANEL SUB-ASSY, QUARTER, RH
LE PACKAGE2&WIRELESS DOOR LOCK-WITH(SMART ENTRY)
LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR)
LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)
LE PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)
REAR & REAR SIDE MONITOR-WITH(SAFE EXIT ASSIST)
LE PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)
LE PACKAGE2&WIRELESS DOOR LOCK-WITH(SMART ENTRY)
REAR & REAR SIDE MONITOR-WITH(SAFE EXIT ASSIST)
LE PACKAGE&REMOTE SERVICE PACKAGE-REMOTE AIR CONDITIONER PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)
sub61601-02621
61602CPANEL SUB-ASSY, QUARTER, LH
LE PACKAGE2&WIRELESS DOOR LOCK-WITH(SMART ENTRY)
sub61602-02641
LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR)
sub61602-02641
LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)
sub61602-02641
LE PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)
sub61602-02641
REAR & REAR SIDE MONITOR-WITH(SAFE EXIT ASSIST)
sub61602-02641
LE PACKAGE&REMOTE SERVICE PACKAGE-REMOTE AIR CONDITIONER PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)
LE PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)
LE PACKAGE2&WIRELESS DOOR LOCK-WITH(SMART ENTRY)
REAR & REAR SIDE MONITOR-WITH(SAFE EXIT ASSIST)
sub61602-02651
65565PATCH, SIDE PANEL REAR END, RH
REAR & REAR SIDE MONITOR-WITH(SAFE EXIT ASSIST)
LE PACKAGE&REMOTE SERVICE PACKAGE-REMOTE AIR CONDITIONER PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)
LE PACKAGE2&WIRELESS DOOR LOCK-WITH(SMART ENTRY)
65566PATCH, SIDE PANEL REAR END, LH
REAR & REAR SIDE MONITOR-WITH(SAFE EXIT ASSIST)
LE PACKAGE&REMOTE SERVICE PACKAGE-REMOTE AIR CONDITIONER PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)
LE PACKAGE2&WIRELESS DOOR LOCK-WITH(SMART ENTRY)
10 parts on this diagram · 3 diagrams in section
