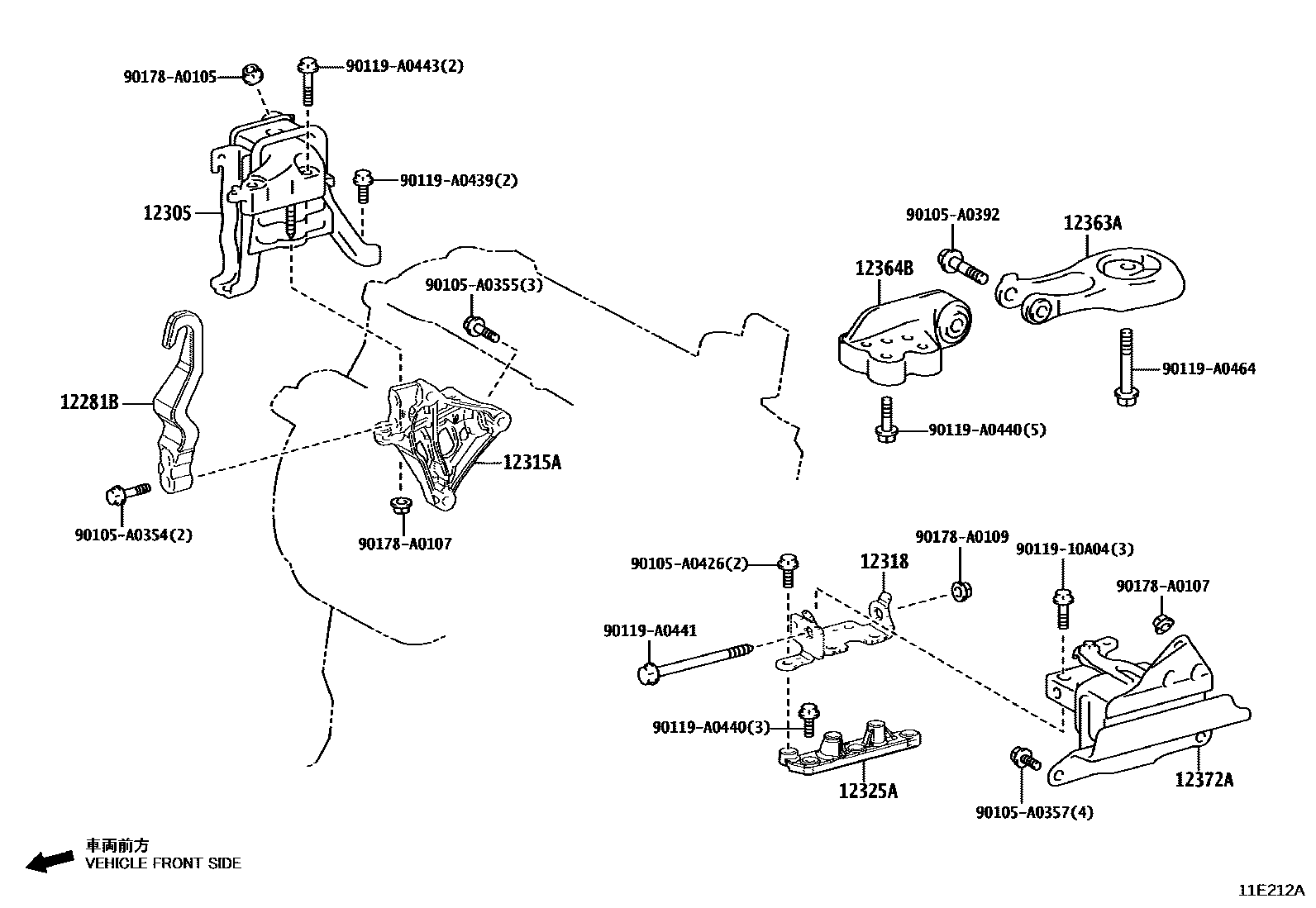

Toyota COROLLA SED (NAP) — MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

12281BHANGER, ENGINE, NO.1

main12281-25030iM20AFKS..MZEA12¥4,100202007-202211

main12281-25030iM20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND¥4,100202211-202410

main12281-25030iM20AFKS..MZEA12¥4,100201903-202007

main12281-25030iM20AFKS..MZEA18..D..USA¥4,100202211

main12281-25030iM20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND¥4,100202410

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-0T360i2ZRFAE..ZRE212202007-202210

sub12305-37390¥10,400

main12305-0T360i2ZRFAE..ZRE212201903-202007

sub12305-37390¥10,400

main12305-F2010iM20AFKS..MZEA12201903-202007

main12305-F2010iM20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND202410

main12305-F2010iM20AFKS..MZEA12202007-202211

main12305-F2010iM20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND202211-202410

main12305-F2010iM20AFKS..MZEA18..D..USA202211

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-37060i2ZRFAE..ZRE212¥3,720202007

main12315-37060i2ZRFAE..ZRE212¥3,720201903-202007

main12315-F2070iM20AFKS..MZEA12201903-202007

sub12315-F2071

main12315-F2070iM20AFKS..MZEA12202007-202010

sub12315-F2071

main12315-F2071iM20AFKS..MZEA18..D..USA202211

main12315-F2071iM20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND202410

main12315-F2071iM20AFKS..MZEA12202011-202211

main12315-F2071iM20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND202211-202410

12318STAY, ENGINE MOUNTING, LH

main12318-0T040i2ZRFAE..ZRE212..CVT202007

main12318-0T040i2ZRFAE..ZRE212..CVT201903-202007

main12318-24030iM20AFKS..MZEA12..6F202007-202107

main12318-24030iM20AFKS..MZEA12..6F201903-202007

main12318-24040iM20AFKS..MZEA12..6F202107-202211

main12318-F2010iM20AFKS..MZEA12..CVT202007-202107

main12318-F2010iM20AFKS..MZEA12..CVT201903-202007

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-0T520i2ZRFAE..ZRE212..CVT202007

main12325-0T520i2ZRFAE..ZRE212..CVT201903-202007

main12325-47150i2ZRFAE..ZRE212..6F202007

main12325-47150i2ZRFAE..ZRE212..6F201903-202007

main12325-F2010iM20AFKS..MZEA12..CVT201903-202007

main12325-F2010iM20AFKS..MZEA12..CVT202007-202107

main12325-F2090iM20AFKS..MZEA18..D..USA202211

main12325-F2090iM20AFKS..MZEA12..CVT202107-202211

main12325-F2090iM20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND202211-202410

main12325-F2090iM20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND202410

12363AROD, ENGINE MOVING CONTROL

main12363-0T040i2ZRFAE..ZRE212..CVT201903-202007

main12363-0T040i2ZRFAE..ZRE212..CVT202007

main12363-24010iM20AFKS..MZEA12..6F¥6,000201903-202007

main12363-24010iM20AFKS..MZEA12..6F¥6,000202007-202112

main12363-24010iM20AFKS..MZEA12..6F¥6,000202210-202211

main12363-24011iM20AFKS..MZEA12..6F202201-202210

sub12363-24010¥6,000

main12363-37040i2ZRFAE..ZRE212..6F201903-202007

main12363-37040i2ZRFAE..ZRE212..6F202007

main12363-F2010iM20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND202410

main12363-F2010iM20AFKS..MZEA12..CVT201903-202007

main12363-F2010iM20AFKS..MZEA12..CVT202007-202211

main12363-F2010iM20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND202211-202410

main12363-F2010iM20AFKS..MZEA18..D..USA202211

12364BROD, ENGINE MOVING CONTROL, NO.2

main12364-0T050i2ZRFAE..ZRE212..CVT202007

main12364-0T050i2ZRFAE..ZRE212..CVT201903-202007

main12364-24010iM20AFKS..MZEA12..6F¥4,370201903-202007

main12364-24010iM20AFKS..MZEA12..6F¥4,370202007-202211

main12364-37060i2ZRFAE..ZRE212..6F201903-202007

main12364-37060i2ZRFAE..ZRE212..6F202007

main12364-F2010iM20AFKS..MZEA12..CVT202007-202211

main12364-F2010iM20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND202410

main12364-F2010iM20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND202211-202410

main12364-F2010iM20AFKS..MZEA18..D..USA202211

main12364-F2010iM20AFKS..MZEA12..CVT201903-202007

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-0T600i2ZRFAE..ZRE212..CVT202007

main12372-0T600i2ZRFAE..ZRE212..CVT201903-202007

main12372-0T610i2ZRFAE..ZRE212..6F202007

main12372-0T610i2ZRFAE..ZRE212..6F201903-202007

main12372-24010iM20AFKS..MZEA12..6F¥9,800202007-202107

main12372-24010iM20AFKS..MZEA12..6F¥9,800201903-202007

main12372-24021iM20AFKS..MZEA12..CVT¥8,900202008-202107

main12372-24070iM20AFKS..MZEA12..6F202107-202211

main12372-F2010iM20AFKS..MZEA12..CVT202007-202008

sub12372-24021¥8,900

main12372-F2010iM20AFKS..MZEA12..CVT201903-202007

sub12372-24021¥8,900

main12372-F2110iM20AFKS..MZEA1#202211-202407

sub12372-F2111

main12372-F2110iM20AFKS..MZEA12..CVT202107-202211

sub12372-F2111

main12372-F2111iM20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND202410

main12372-F2111iM20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND202408-202410

main12372-F2111iM20AFKS..MZEA18..D..USA202408

90105A0354

main90105-A0354

90105A0355

main90105-A0355

90105A0357

main90105-A0357

90105A0392

main90105-A0392

90105A0426

main90105-A0426

9011910A04

main90119-10A04¥210

90119A0439

main90119-A0439

90119A0440

main90119-A0440

90119A0441

main90119-A0441

90119A0443

main90119-A0443

90119A0464

main90119-A0464

90178A0105

main90178-A0105

90178A0107

main90178-A0107

90178A0109

main90178-A0109

22 parts on this diagram · 6 diagrams in section
