Toyota COROLLA SED (NAP) — INTERIOR LAMP

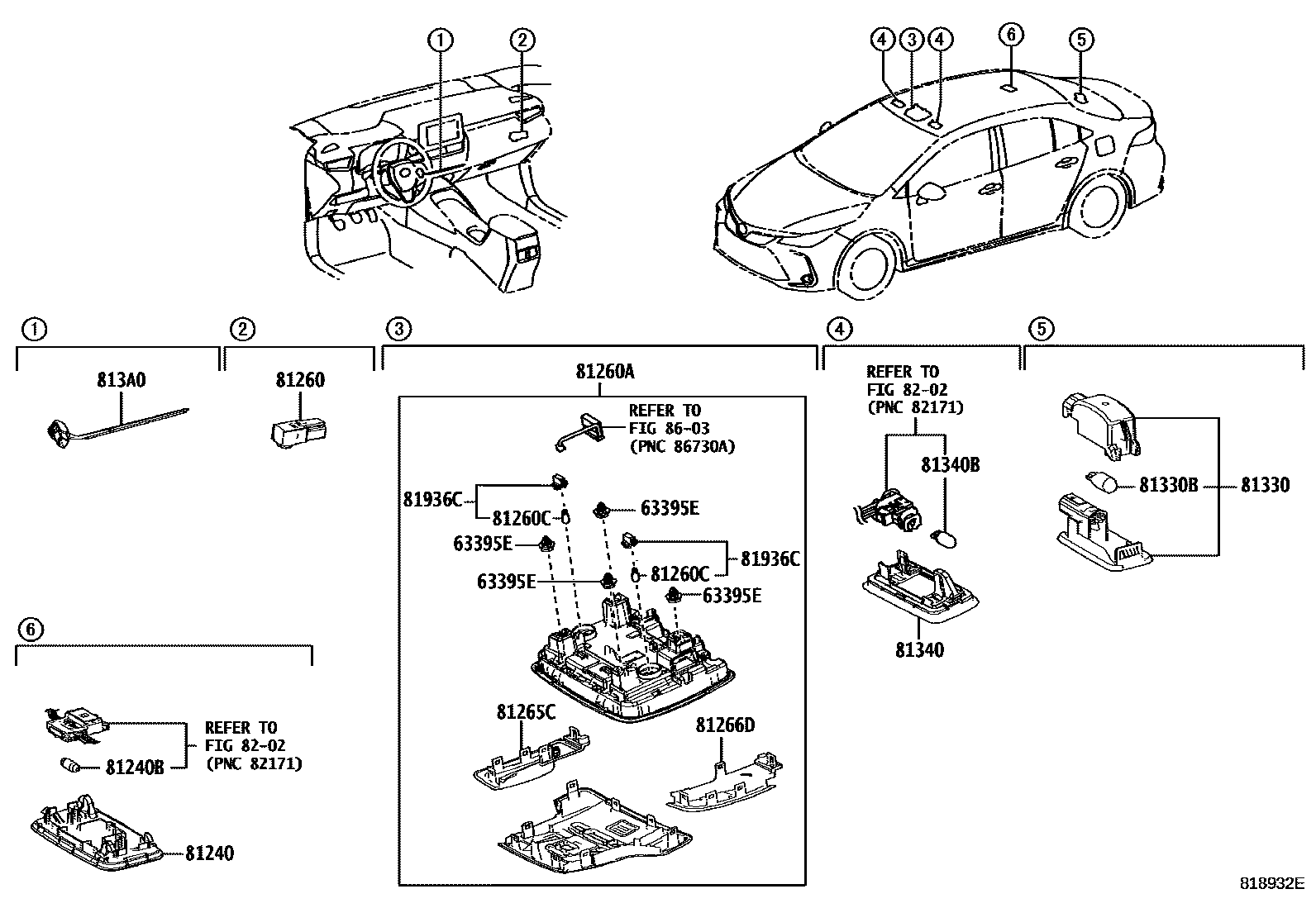

Parts diagram
63395ECLIP(FOR MAP LAMP)
main90467-09240i¥80201903-202007
MOON ROOF-WITH&AUDIO-8INCH 6SPEAKER
main90467-09240i¥80201903-202211
LE PACKAGE
main90467-09240i¥80201903-202007
LE PACKAGE&AUDIO-8INCH 6SPEAKER
main90467-09240i¥80201903-202211
MOON ROOF-WITH
main90467-09240i¥80202007-202211
PUERTO RICO SPEC&MOON ROOF-WITH&AUDIO-8INCH 6SPEAKER
main90467-09240i¥80202007-202211
LE PACKAGE&AUDIO-8INCH 6SPEAKER
main90467-09240i¥80202007-202211
MOON ROOF-WITH&AUDIO-8INCH 6SPEAKER
81240LAMP ASSY, ROOM, NO.1
main81240-12100-A9i201908-202211
FROMAGE,TRIM0#,1#,2#
main81240-12100-A9i201908-202211
FROMAGE,TRIM1#,2#
main81240-12100-A9i201908-202211
FROMAGE,TRIM0#,2#
main81240-12100-C0i201908-202211
BLACK,TRIM2#
main81240-48040-A0i202211-202410
FROMAGE,TRIM0#,1#,2#
main81240-48040-A0i202211-202410
FROMAGE,TRIM1#,2#
main81240-48040-C1i202211-202410
BLACK,TRIM2#
main81240-60060-A9i201903-201907
FROMAGE,TRIM1#,2#
sub81240-12100¥3,500
main81240-60060-A9i201903-201907
FROMAGE,TRIM0#,1#,2#
sub81240-12100¥3,500
main81240-60060-A9i201903-201907
FROMAGE,TRIM0#,2#
sub81240-12100¥3,500
main81240-60060-C1i201903-201907
BLACK,TRIM2#
sub81240-12100¥3,500
81240BBULB, ROOM LAMP, NO.1
main90981-14011i¥180201903-202211
12V 8W
81260LAMP ASSY, GLOVE BOX
main81080-33290i¥920201903-202410
81260ALAMP ASSY, MAP
main81260-02840-A0i201903-202007
FROMAGE,TRIM0#,1#,2#
main81260-02840-A0i201903-202007
FROMAGE,TRIM1#,2#
main81260-02840-C0i201903-202007
BLACK,TRIM2#
main81260-02841-A0i202007-202211
FROMAGE,TRIM1#,2#
main81260-02841-A0i202007-202211
FROMAGE,TRIM0#,1#,2#
main81260-02841-C0i202007-202211
PUERTO RICO SPEC&AUDIO-8INCH 6SPEAKER,BLACK,TRIM2#
main81260-02841-C0i202007-202211
BLACK,TRIM2#
main81260-02850-A0i201903-202007
FROMAGE,TRIM0#,1#,2#
main81260-02850-A0i201903-202007
FROMAGE,TRIM1#,2#
main81260-02850-A0i201903-202007
AUDIO-8INCH 6SPEAKER,FROMAGE,TRIM1#,2#
main81260-02850-A0i201903-202007
AUDIO-8INCH 6SPEAKER,FROMAGE,TRIM0#,1#,2#
main81260-02850-C0i201903-202007
BLACK,TRIM1#,2#
main81260-02850-C0i201903-202007
AUDIO-8INCH 6SPEAKER,BLACK,TRIM1#,2#
main81260-02851-A0i202007-202211
FROMAGE,TRIM1#,2#
main81260-02851-A0i202007-202211
AUDIO-8INCH 6SPEAKER,FROMAGE,TRIM1#,2#
main81260-02851-A0i202007-202211
AUDIO-8INCH 6SPEAKER,FROMAGE,TRIM0#,1#,2#
main81260-02851-A0i202007-202211
FROMAGE,TRIM0#,1#,2#
main81260-02851-C0i202007-202211
BLACK,TRIM2#
main81260-02851-C0i202007-202211
AUDIO-8INCH 6SPEAKER,BLACK,TRIM2#
main81260-02870-A0i201903-202007
LE PACKAGE,FROMAGE,TRIM0#,1#,2#
main81260-02870-A0i201903-202007
FROMAGE,TRIM0#,2#
main81260-02870-A0i201903-202007
LE PACKAGE&AUDIO-8INCH 6SPEAKER,FROMAGE,TRIM0#,1#,2#
main81260-02870-C0i201903-202007
MOON ROOF-WITH,BLACK,TRIM1#,2#
main81260-02870-C0i201903-202007
BLACK,TRIM2#
main81260-02870-C0i201903-202007
MOON ROOF-WITH&AUDIO-8INCH 6SPEAKER,BLACK,TRIM1#,2#
main81260-02871-A0i202007-202211
FROMAGE,TRIM0#,2#
main81260-02871-A0i202007-202211
LE PACKAGE,FROMAGE,TRIM0#,1#,2#
main81260-02871-A0i202007-202211
LE PACKAGE&AUDIO-8INCH 6SPEAKER,FROMAGE,TRIM0#,1#,2#
main81260-02871-C0i202007-202211
MOON ROOF-WITH&AUDIO-8INCH 6SPEAKER,BLACK,TRIM2#
main81260-02871-C0i202007-202211
MOON ROOF-WITH,BLACK,TRIM2#
main81260-02871-C0i202007-202211
BLACK,TRIM2#
main81260-02F60-A0i202211-202410
FROMAGE,TRIM0#,1#,2#
main81260-02F60-A0i202211-202410
FROMAGE,TRIM1#,2#
main81260-02F60-C0i202211-202410
BLACK,TRIM2#
main81260-02F80-C0i202211-202410
MOON ROOF-WITH,BLACK,TRIM2#
main81260-02F80-C0i202211-202410
BLACK,TRIM2#
81260CBULB(FOR MAP LAMP)
main99132-12050i¥110201903-202211
12V 5W
81265CLENS, MAP LAMP, NO.1
main81265-02840i201903-202211
main81265-02860i201903-202211
MOON ROOF-WITH
main81265-02860i201903-202211
LE PACKAGE
main81265-02860i201903-202007
LE PACKAGE&AUDIO-8INCH 6SPEAKER
main81265-02860i201903-202007
MOON ROOF-WITH&AUDIO-8INCH 6SPEAKER
main81265-02860i202007-202211
PUERTO RICO SPEC&MOON ROOF-WITH&AUDIO-8INCH 6SPEAKER
main81265-02860i202007-202211
LE PACKAGE&AUDIO-8INCH 6SPEAKER
main81265-02860i202007-202211
MOON ROOF-WITH&AUDIO-8INCH 6SPEAKER
81266DLENS, MAP LAMP, NO.2
main81266-02850i201903-202211
main81266-02870i201903-202007
LE PACKAGE&AUDIO-8INCH 6SPEAKER
main81266-02870i201903-202211
MOON ROOF-WITH
main81266-02870i201903-202007
MOON ROOF-WITH&AUDIO-8INCH 6SPEAKER
main81266-02870i201903-202211
LE PACKAGE
main81266-02870i202007-202211
PUERTO RICO SPEC&MOON ROOF-WITH&AUDIO-8INCH 6SPEAKER
main81266-02870i202007-202211
LE PACKAGE&AUDIO-8INCH 6SPEAKER
main81266-02870i202007-202211
MOON ROOF-WITH&AUDIO-8INCH 6SPEAKER
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
main81250-30210i¥1,250201903-202410
81330BBULB, LUGGAGE COMPARTMENT LAMP
main99132-12050i¥110201903-202410
12V 5W
81340LAMP ASSY, VANITY
main81340-06030i201903-202211
main81340-33170i¥990202211-202410
LE PACKAGE&MOON ROOF-WITH
81340BBULB (FOR VANITY LAMP)
main90981-11062i¥340201903-202211
12V 8W
813A0LAMP ASSY, INSTRUMENT PANEL
main813A0-12010
81936CBULB ASSY
main81936-12160i¥510201903-202211
8202
8603

16 parts on this diagram · 1 diagram in section
