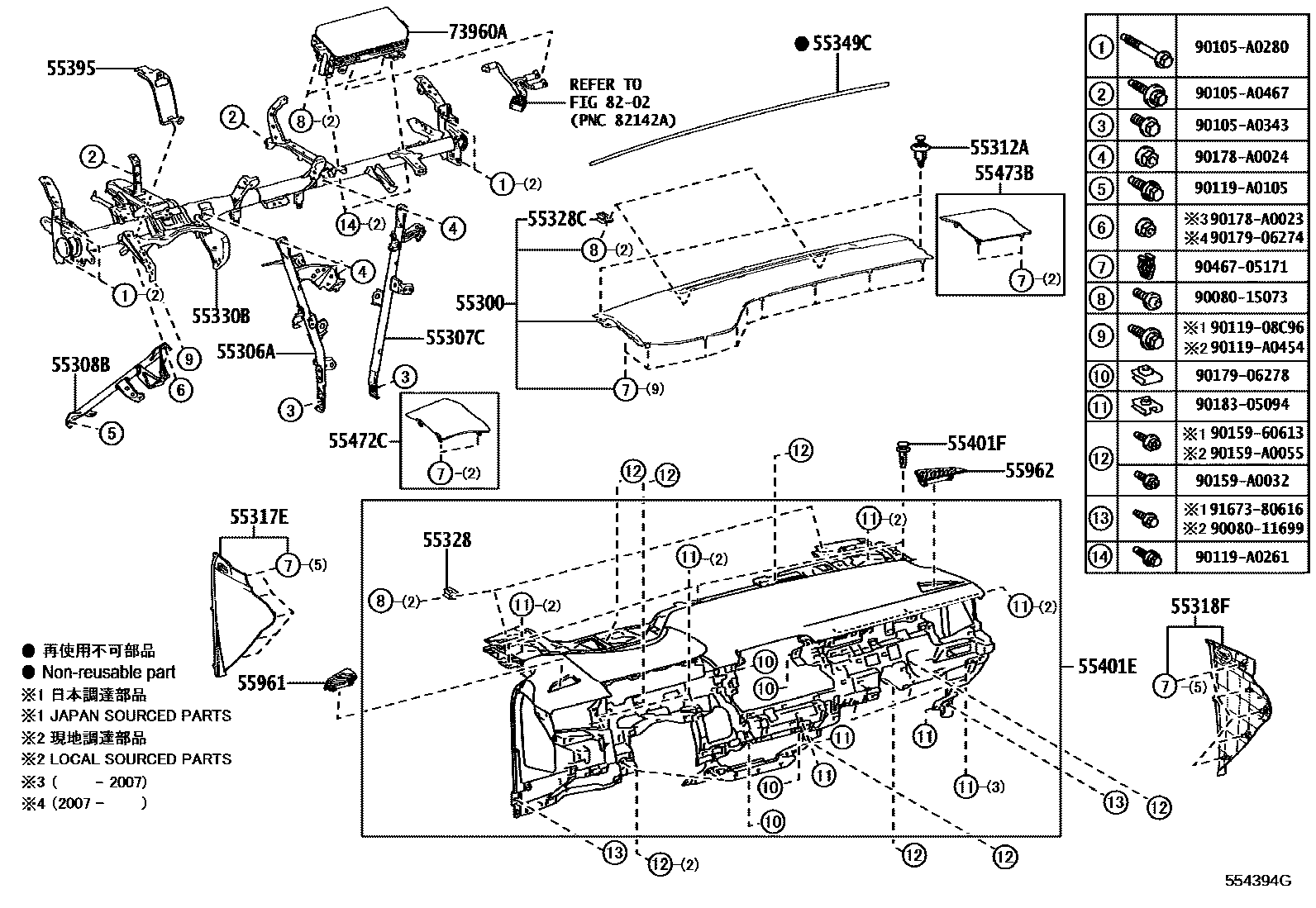

Toyota COROLLA SED (NAP) — INSTRUMENT PANEL & GLOVE COMPARTMENT
55300PANEL ASSY, INSTRUMENT, UPPER
BLACK,TRIM2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,2#
BLACK,TRIM1#,2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM1#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,2#
BLACK,TRIM2#
BLACK,TRIM1#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3
55312ACLIP, INSTRUMENT PANEL
55317EPANEL, INSTRUMENT SIDE, NO.1
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,2#
BLACK,TRIM1#,2#
BLACK,TRIM2#
BLACK,TRIM1#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,2#
BLACK,TRIM2#
BLACK,TRIM1#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#
55318FPANEL, INSTRUMENT SIDE, NO.2
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM2#
BLACK,TRIM0#,2#
BLACK,TRIM1#,2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM1#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,2#
BLACK,TRIM2#
BLACK,TRIM1#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#
55328PIN, INSTRUMENT PANEL, NO.1
COLOR:PINK
COLOR : YELLOW
COLOR : YELLOW
COLOR : YELLOW
COLOR : YELLOW
APEX
COLOR : YELLOW
55328CPIN, INSTRUMENT PANEL, NO.2
COLOR:PINK
COLOR : YELLOW
COLOR : YELLOW
COLOR : YELLOW
COLOR : YELLOW
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
55349CCUSHION, INSTRUMENT PANEL
55395BRACKET, INSTRUMENT PANEL TO PEDAL
55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY
BLACK,TRIM1#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM2#
BLACK,TRIM0#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#
BLACK,TRIM2#
SOFT BLACK,TRIM0#,1#,2#
SOFT BLACK,TRIM2#
SOFT BLACK,TRIM0#,1#,2#
SOFT BLACK,TRIM2#
SOFT BLACK,TRIM1#,2#
SOFT BLACK,TRIM1#,2#
SEAT COVER MATERIAL-SPORT LEATHER,BLACK/SHELL,TRIM0#,2#
BLACK/SHELL,TRIM0#,2#
BLACK/SHELL,TRIM0#,2#
BLACK/BLUE,TRIM2#
BLACK/BLUE,TRIM20,21
BLACK/BROWN,TRIM24
55401FCLIP(FOR SAFETY PAD)
(L)
(L)
(L)
(L)
55472CPANEL, INSTRUMENT PANEL SPEAKER, NO.1
BLACK,TRIM1#,2#
BLACK,TRIM2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM1#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,2#
BLACK,TRIM2#
BLACK,TRIM1#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#
BLACK,TRIM2#
AUDIO-ENTRY(10.5INCH) & JBL,BLACK,TRIM2#
55473BPANEL, INSTRUMENT PANEL SPEAKER, NO.2
BLACK,TRIM0#,1#,2#
BLACK,TRIM2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,2#
BLACK,TRIM1#,2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM1#,2#
BLACK,TRIM0#,2#
BLACK,TRIM2#
BLACK,TRIM1#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#
AUDIO-ENTRY(10.5INCH) & JBL,BLACK,TRIM2#
BLACK,TRIM2#
55961NOZZLE, SIDE DEFROSTER, NO.1
BLACK,TRIM1#,2#
BLACK,TRIM2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM1#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,2#
BLACK,TRIM2#
BLACK,TRIM1#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#
55962NOZZLE, SIDE DEFROSTER, NO.2
BLACK,TRIM0#,1#,2#
BLACK,TRIM2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,2#
BLACK,TRIM1#,2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM1#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,2#
BLACK,TRIM2#
BLACK,TRIM1#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
8202
9008011699
9008015073
main90080-15073
90105A0280
main90105-A0280
90105A0343
main90105-A0343
90105A0467
main90105-A0467
9011908C96
90119A0105
main90119-A0105
90119A0261
main90119-A0261
90119A0454
main90119-A0454
9015960613
90159A0032
main90159-A0032
90159A0055
main90159-A0055
90178A0023
main90178-A0023
90178A0024
main90178-A0024
9017906274
9017906278
9018305094
9046705171
9167380616
39 parts on this diagram · 6 diagrams in section
