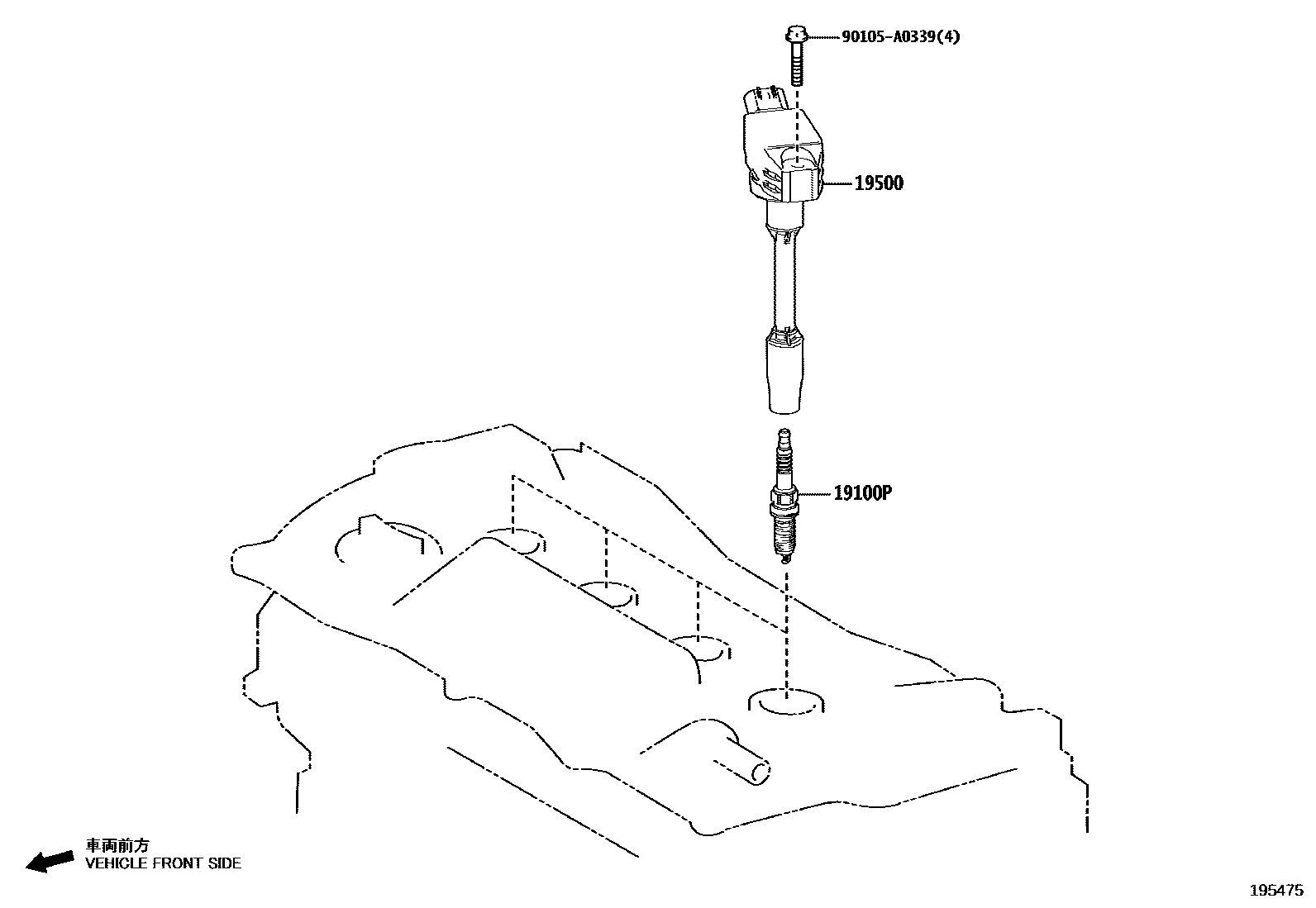

Toyota COROLLA SED (NAP) — IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1

19100PPLUG, SPARK

main90919-01289i2ZRFAE..ZRE212¥2,300201903-202007

FC16HR-Q8,(J)

main90919-01289i2ZRFAE..ZRE212¥2,300202007

FC16HR-Q8,(J)

main90919-01297iM20AFKS..MZEA12¥2,300201903-202007

FC20HR-Q8,(J)

main90919-01297iM20AFKS..MZEA18..D..USA¥2,300202211

FC20HR-Q8,(J)

main90919-01297iM20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND¥2,300202211-202410

FC20HR-Q8,(J)

main90919-01297iM20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND¥2,300202410

FC20HR-Q8,(J)

main90919-01297iM20AFKS..MZEA12¥2,300202007-202211

FC20HR-Q8,(J)

main90919-A1001i2ZRFAE..ZRE212¥2,300201903-202007

FC16HR-Q8,(L)

main90919-A1001i2ZRFAE..ZRE212¥2,300202007

FC16HR-Q8,(L)

main90919-A1005iM20AFKS..MZEA18..D..USA202211

FC20HR-Q8,(L)

main90919-A1005iM20AFKS..MZEA12201903-202007

FC20HR-Q8,(L)

main90919-A1005iM20AFKS..MZEA12202007-202211

FC20HR-Q8,(L)

main90919-A1005iM20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND202211-202410

FC20HR-Q8,(L)

main90919-A1005iM20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND202410

FC20HR-Q8,(L)

19500COIL ASSY, IGNITION

main90919-02276iM20AFKS..MZEA12¥7,500201903-202007

(J)

main90919-02276iM20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND¥7,500202410

(J)

main90919-02276iM20AFKS..MZEA12¥7,500202007-202211

(J)

main90919-02276i2ZRFAE..ZRE212¥7,500202007

(J)

main90919-02276iM20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND¥7,500202211-202410

(J)

main90919-02276iM20AFKS..MZEA18..D..USA¥7,500202211

(J)

main90919-A2009i2ZRFAE..ZRE212201903-202007

(L)

main90919-A2009iM20AFKS..MZEA18..D..USA202211

(L)

main90919-A2009iM20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND202410

(L)

main90919-A2009iM20AFKS..MZEA12202007-202211

(L)

main90919-A2009iM20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND202211-202410

(L)

main90919-A2009i2ZRFAE..ZRE212202007

(L)

90105A0339

main90105-A0339

3 parts on this diagram · 2 diagrams in section
