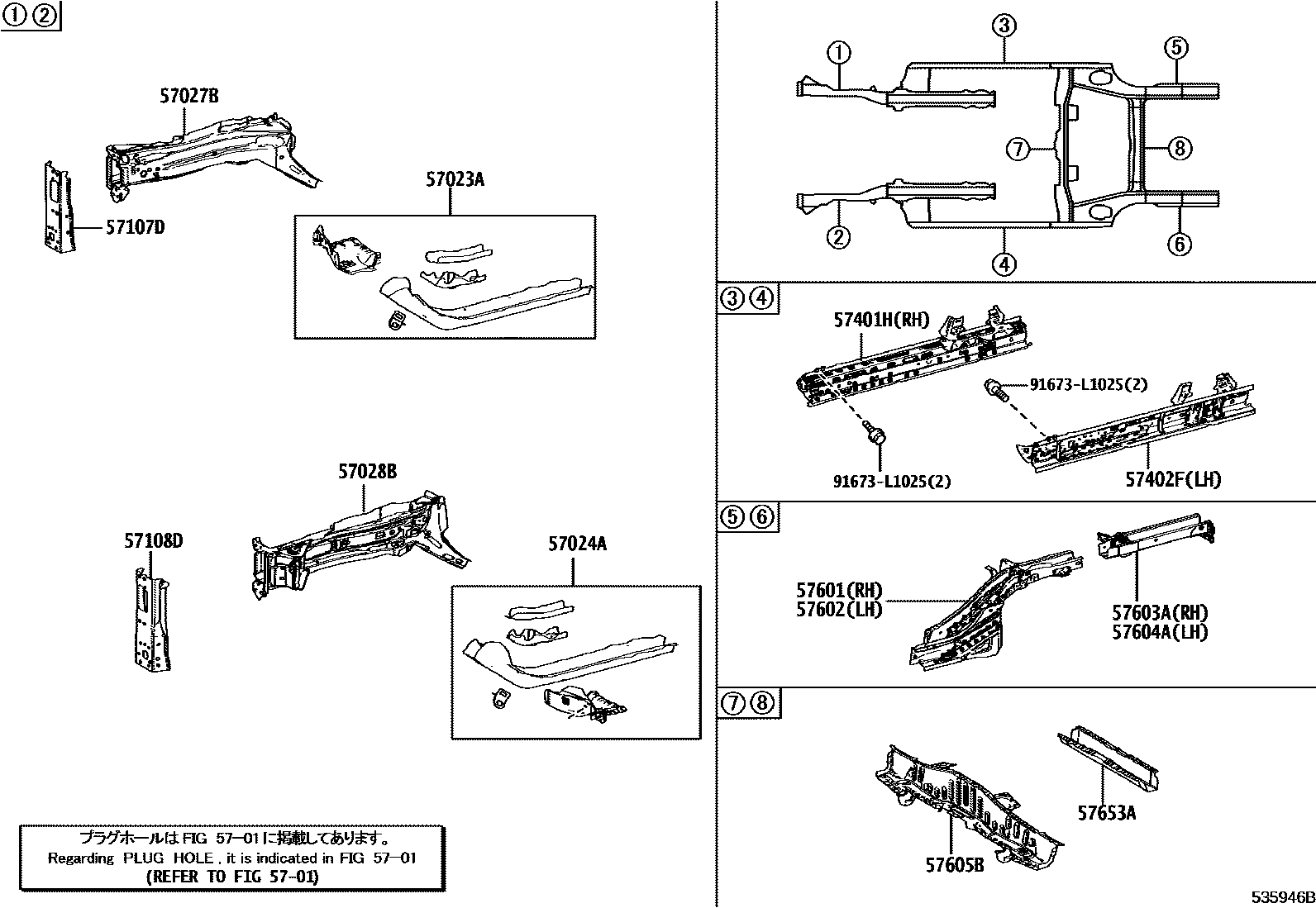

Toyota COROLLA SED (NAP) — FLOOR SIDE MEMBER
5701
57023AMEMBER SUB-ASSY, REAR SIDE, RH
57024AMEMBER SUB-ASSY, REAR SIDE, LH
57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH
57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH
57107DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH
57108DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH
57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH
57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH
57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH
57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH
57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57653AMEMBER, REAR FLOOR CROSS, NO.2
91673L1025
16 parts on this diagram · 2 diagrams in section
