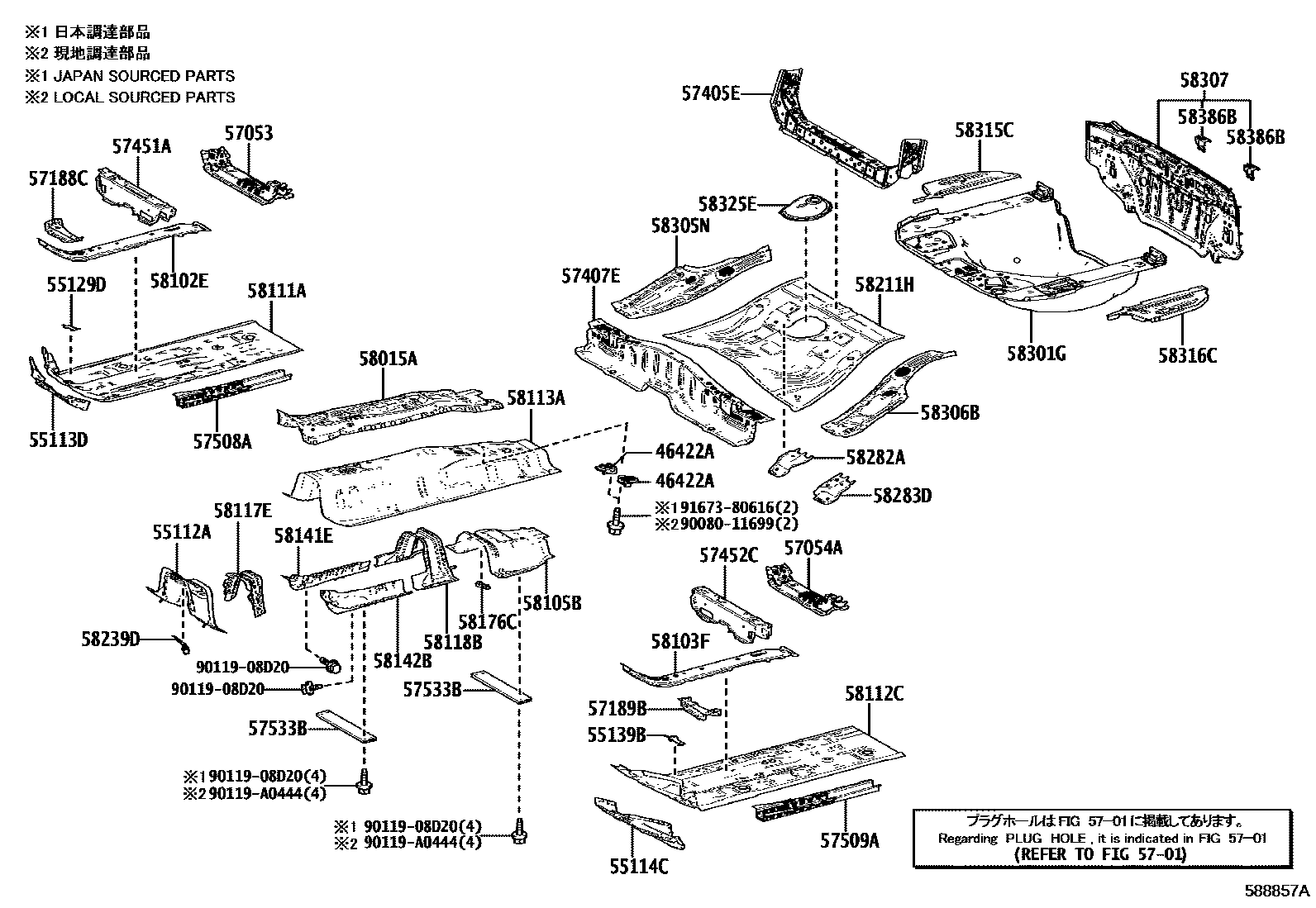

Toyota COROLLA SED (NAP) — FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1 0003 1 0004 1 0005 1

46422ACAP, PARKING BRAKE CABLE, CASING

main46422-02010iMZEA12,ZRE212..S,X,Y201903-202007

PARKING BRAKE-ELECTRIC PARKING BRAKE

main46422-02010iMZEA12;ZRE212..CVT202007-202211

55112APANEL, DASH, NO.2

main55112-02010iMZEA1#..L,S,Y;MZEA18..D..CND201903-202410

main55112-47040iMZEA12,ZRE212¥4,110202007-202211

55113DPANEL, DASH, LOWER RH

main55113-02020iMZEA1#..L,S,Y;MZEA18..D..CND201903-202410

55114CPANEL, DASH, LOWER LH

main55114-02060iMZEA1#..L,S,Y;MZEA18..D..CND201903-202410

55129DCOVER, DASH PANEL HOLE, RH

main55129-02080iMZEA1#..L,S,Y;MZEA18..D..CND201903-202410

55139BCOVER, DASH PANEL HOLE, LH

main55139-02070iMZEA1#..L,S,Y;MZEA18..D..CND201903-202410

5701

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-02080iMZEA1#..L,S,Y;MZEA18..D..CND201903-202410

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-02070iMZEA1#..L,S,Y;MZEA18..D..CND201903-202410

57188CREINFORCEMENT, FRONT SIDE MEMBER EXTENSION, RH

main57188-02060iMZEA1#..L,S,Y;MZEA18..D..CND201903-202410

57189BREINFORCEMENT, FRONT SIDE MEMBER EXTENSION, LH

main57189-02040iMZEA1#..L,S,Y;MZEA18..D..CND201903-202410

57405EMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2

main57405-02020iMZEA1#..L,S,Y;MZEA18..D..CND201903-202410

57407EMEMBER SUB-ASSY, CENTER FLOOR CROSS

main57407-02220iMZEA12,ZRE212201903-202401

main57407-02221iMZEA1#..L,S,Y;MZEA18..D..CND202401-202410

57451AMEMBER, FRONT FLOOR CROSS, RH

main57451-02100iMZEA1#..L,S,Y;MZEA18..D..CND201903-202410

57452CMEMBER, FRONT FLOOR CROSS, LH

main57452-02140iMZEA1#..L,S,Y;MZEA18..D..CND201903-202410

57508AREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH

main57508-02010iMZEA1#..L,S,Y;MZEA18..D..CND201903-202410

57509AREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH

main57508-02010iMZEA1#..L,S,Y;MZEA18..D..CND201903-202410

57533BBRACE, FRONT FLOOR, CENTER

main57533-02170iMZEA12,ZRE212201903-202103

sub57533-0A030

main57533-0A030iMZEA12,ZRE212202104-202410

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-02230iMZEA18..D..USA201903-202410

main58015-02330iMZEA1#..L,S,Y;MZEA18..D..CND202410

main58015-47050iMZEA12,ZRE212¥8,000202007-202211

58102EREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH

main58102-02160iMZEA1#..L,S,Y;MZEA18..D..CND201903-202410

58103FREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH

main58102-02160iMZEA12,ZRE212201903-202410

58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB

main58105-02060iMZEA1#..L,S,Y;MZEA18..D..CND201903-202410

main58105-12020iMZEA12,ZRE212¥5,600202007-202211

58111APAN, FRONT FLOOR, RH

main58111-02220iMZEA12,ZRE212201903-202001

sub58111-02221

main58111-02221iMZEA1#..L,S,Y;MZEA18..D..CND202002-202410

58112CPAN, FRONT FLOOR, LH

main58112-02100iMZEA12,ZRE212201903-202002

main58112-02102iMZEA12,ZRE212202002-202410

58113APANEL, FRONT FLOOR, CENTER

main58113-02140iMZEA12,ZRE212201903-202007

main58113-02280iMZEA1#..L,S,Y;MZEA18..D..CND202211-202410

main58113-12070iMZEA12,ZRE212202007-202211

58117EPANEL, FRONT FLOOR SUB COVER

main58117-02040iMZEA12,ZRE212201903-202410

main58117-47040iMZEA12,ZRE212¥1,400202007-202211

58118BREINFORCEMENT, FRONT FLOOR PANEL, NO.2

main58118-02080iMZEA18..D..USA201903-202410

main58118-47030iMZEA12,ZRE212¥4,110202007-202211

58141EREINFORCEMENT, FRONT SIDE MEMBER TO FLOOR PAN, RH

main58141-02060iMZEA12,ZRE212201903-202007

main58141-02061iMZEA1#..L,S,Y;MZEA18..D..CND202211-202410

main58141-47011iMZEA12,ZRE212¥2,470202007-202211

58142BREINFORCEMNET, FRONT SIDE MEMBER TO FLOOR PAN, LH

main58142-02070iMZEA12,ZRE212201903-202007

main58142-02071iMZEA1#..L,S,Y;MZEA18..D..CND202211-202410

main58142-47012iMZEA12,ZRE212¥2,470202007-202211

58176CREINFORCEMENT, PARKING BRAKE BASE, NO.2

main58176-02060iMZEA12,ZRE212201903-202007

main58176-12020iMZEA12,ZRE212¥270202007-202211

58211HPAN, CENTER FLOOR

main58211-02520iMZEA12201903-202410

main58211-02640iMZEA18..L;MZEA18..D..CND202211-202410

58239DBRACKET, CABLE CLAMP

main58239-02020iMZEA1#..L,S,Y;MZEA18..D..CND201903-202410

main58239-12030iMZEA12,ZRE212¥540202007-202211

58282ABASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH

main58282-02230iMZEA12,ZRE212201903-202410

main58282-0A030iMZEA18..L;MZEA18..D..CND202211-202410

58283DBASE, BELT ANCHOR TO FLOOR PAN, NO.3 LH

main58283-02180iMZEA12201903-202410

main58283-0A090iMZEA18..D..USA202211-202410

58301GPAN SUB-ASSY, REAR FLOOR

main58301-02908iMZEA12,ZRE212201903-202211

main58301-02910iMZEA18..D..USA202211-202410

58305NEXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, RH

main58305-02080iMZEA1#..L,S,Y;MZEA18..D..CND201903-202410

58306BEXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, LH

main58306-02090iMZEA1#..L,S,Y;MZEA18..D..CND201903-202410

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-02460iMZEA18..D..USA201903-202410

58315CEXTENSION, REAR FLOOR SIDE PANEL, RH

main58315-02070iMZEA1#..L,S,Y;MZEA18..D..CND201903-202410

58316CEXTENSION, REAR FLOOR SIDE PANEL, LH

main58316-02030iMZEA1#..L,S,Y;MZEA18..D..CND201903-202410

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-02210iMZEA12,ZRE212202001-202108

(L)

sub58325-10031¥1,450

main58325-02210iMZEA12,ZRE212201903-202001

sub58325-10031¥1,450

main58325-10031iMZEA12¥1,450202108-202410

main58325-10031iMZEA12,ZRE212¥1,450202001-202211

(J)

main58325-12180iMZEA18..L;MZEA18..D..CND¥1,940202211-202410

58386BBRACKET, REAR BUMPER COVER, NO.2

main58386-02100iMZEA1#..L,S,Y;MZEA18..D..CND201903-202410

9008011699

main90080-11699¥110

9011908D20

main90119-08D20¥80

90119A0444

main90119-A0444

9167380616

main91673-80616¥60

46 parts on this diagram · 5 diagrams in section
