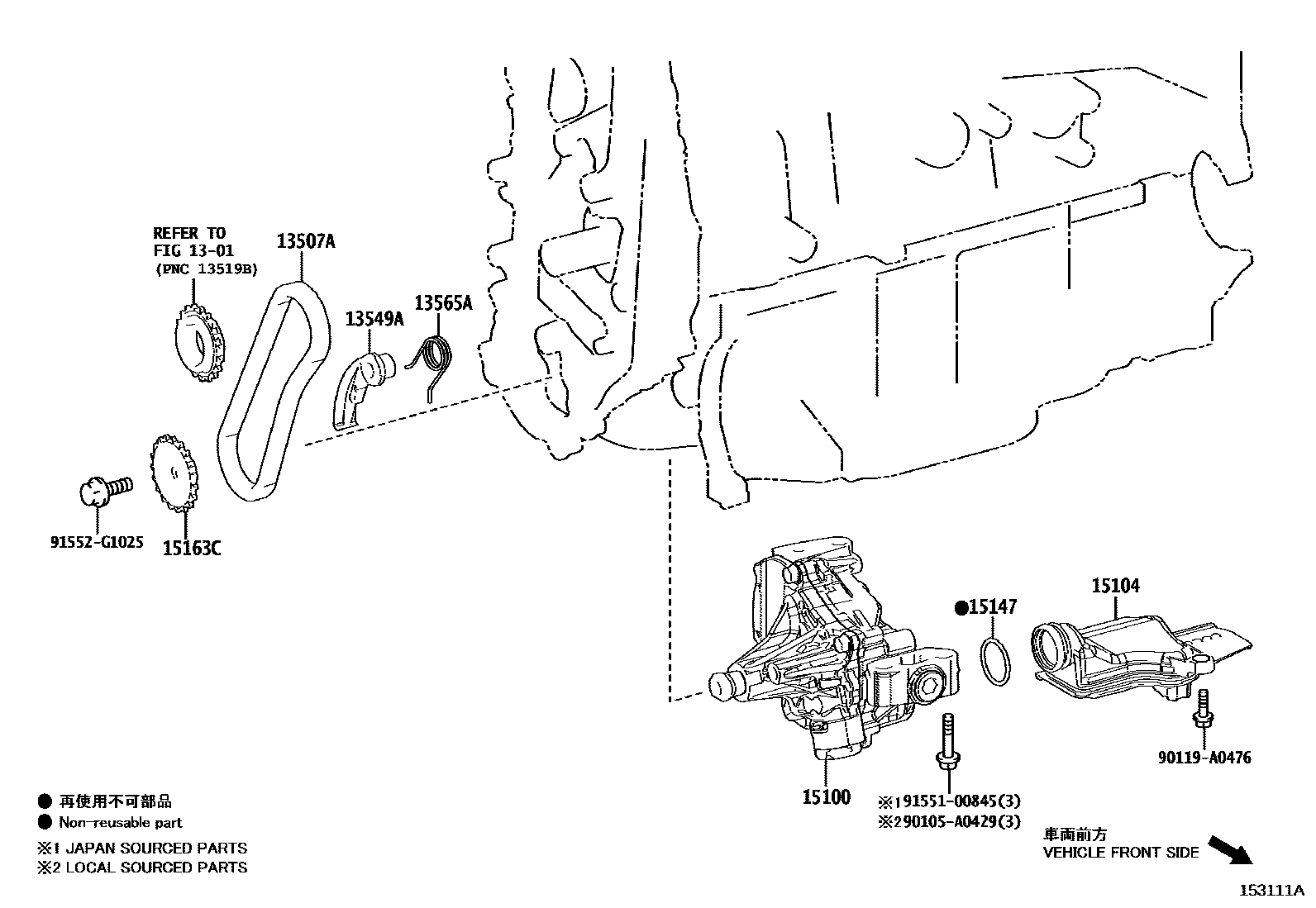

Toyota COROLLA SED (NAP) — ENGINE OIL PUMP

0001 1 0002 1

1301

13507ACHAIN SUB-ASSY, OIL PUMP DRIVE

main13507-F2010iM20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND201903-202410

13549APLATE, CHAIN TENSIONER

main13549-25020iM20AFKS..MZEA18..D..USA¥550201903-202410

(J)

main13549-F0010iM20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND201903-202410

(L)

13565ASPRING, CHAIN DAMPER

main13565-25010iM20AFKS..MZEA12¥220201903-202410

(J)

main13565-F0010iM20AFKS..MZEA12201903-202410

(L)

15100PUMP ASSY, OIL

main15100-0T090i2ZRFAE..ZRE212201903-202007

(L)

main15100-37021i2ZRFAE..ZRE212¥11,800201903-202007

(J)

main15100-F2010iM20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND201903-202410

15104STRAINER SUB-ASSY, OIL

main15104-24010iM20AFKS..MZEA12¥1,200201903-202410

(J)

main15104-F2010iM20AFKS..MZEA12201903-202410

(L)

15147GASKET, OIL STRAINER

main15147-25010iM20AFKS..MZEA12¥340201903-202410

15163GEAR, OIL PUMP DRIVE SHAFT

main15163-0H010i2ZRFAE..ZRE212201903-202007

(L)

main15163-28010i2ZRFAE..ZRE212¥390201903-202007

(J)

15163CSPROCKET, OIL PUMP DRIVE SHAFT

main15163-25010iM20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND¥660201903-202410

(J)

main15163-F0010iM20AFKS..MZEA18..D..USA201903-202410

(L)

90105A0429

main90105-A0429

90119A0476

main90119-A0476

9155100845

main91551-00845¥100

91552G1025

main91552-G1025¥170

13 parts on this diagram · 2 diagrams in section
