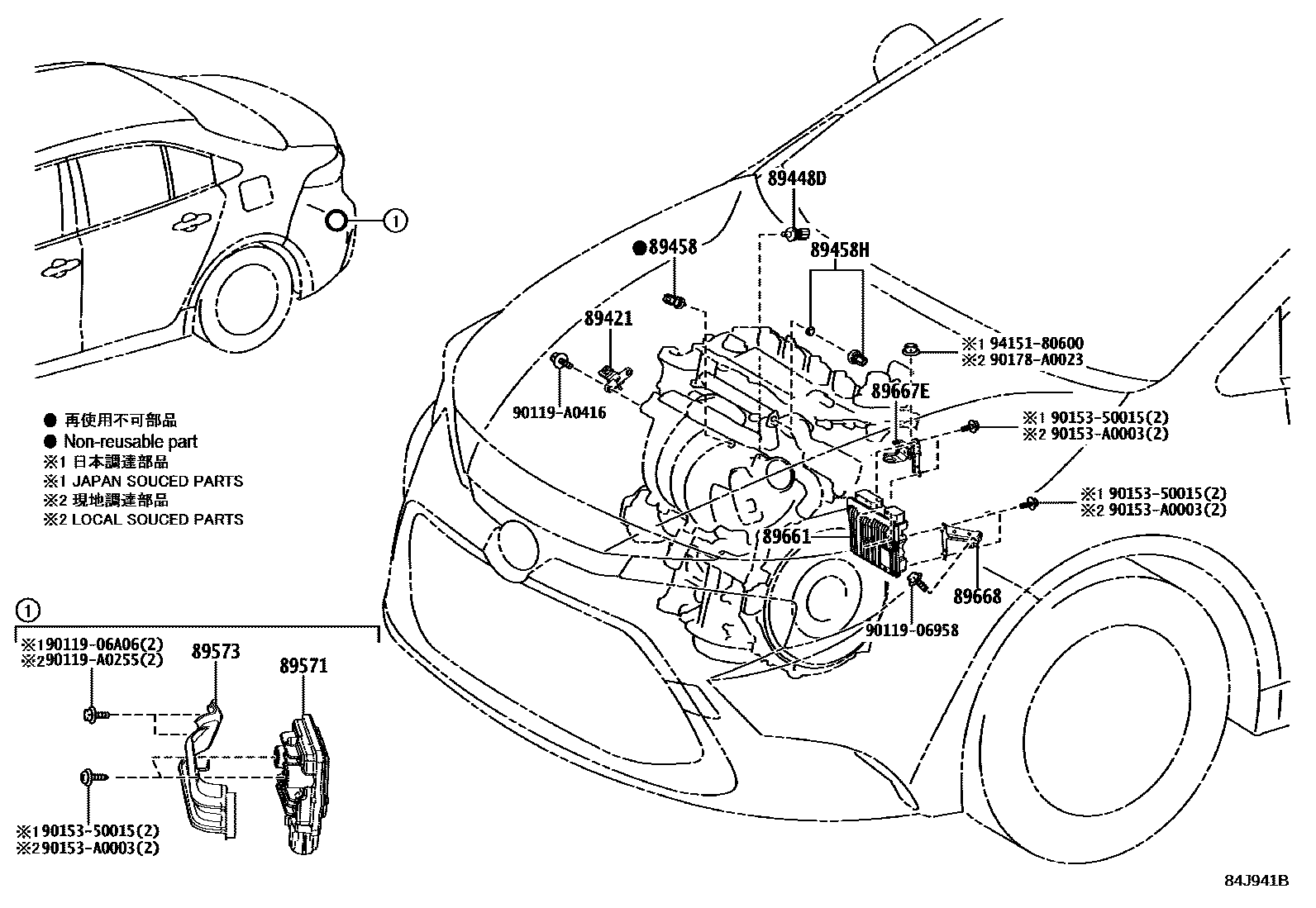

Toyota COROLLA SED (NAP) — ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-06020iMZEA12201903-202410

main89421-26030iZRE212¥5,900201903-202211

89448DSENSOR, OIL PRESSURE & TEMPERATURE

main89448-06010iMZEA1#..L,S,Y;MZEA18..D..CND201903-202410

89458SENSOR, FUEL PRESSURE

main89458-06010iMZEA12201903-202410

89458HSENSOR, FUEL PRESSURE, NO.2

main89458-06021iMZEA12201903-202306

main89458-06022iMZEA1#..L,S,Y;MZEA18..D..CND202307-202410

89571COMPUTER, FUEL PUMP CONTROL

main89571-06010iMZEA12201903-202211

(L)

main89571-0R010iMZEA1#..L,S,Y;MZEA18..D..CND202211-202410

(L)

main89571-33030iMZEA12¥10,900201903-202211

(J)

main89571-42010iMZEA1#..L,S,Y;MZEA18..D..CND¥9,900202211-202410

(J)

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-02010iMZEA12201903-202410

89661COMPUTER, ENGINE CONTROL

main89661-0ZV30iZRE212..CVT201903-201907

DENSO

sub89661-0ZV31

main89661-0ZV31iZRE212..CVT201908-202007

DENSO

sub89661-0ZV32

main89661-0ZV40iZRE212..6F201903-202007

DENSO

sub89661-0ZV41

main89661-0ZV90iMZEA12..6F201903-201911

DENSO

sub89661-0ZV91

main89661-0ZV91iMZEA12..6F201912-202007

DENSO

main89661-0ZW00iMZEA12..CVT201903-201906

DENSO

sub89661-0ZW01

main89661-0ZW01iMZEA12..CVT201907-201908

DENSO

sub89661-0ZW02

main89661-0ZW02iMZEA12..CVT201909-201911

DENSO

sub89661-0ZW03

main89661-0ZW03iMZEA12..CVT201912-202007

DENSO

main89666-02790iMZEA1#..L,S,Y;MZEA18..D..CND202410

DENSO,*614

main89666-02820iMZEA12..CVT202107-202211

DENSO

main89666-02B30iZRE212..CVT202007-202107

DENSO

main89666-02B40iZRE212..6F202007-202107

DENSO

main89666-02B70iMZEA12..CVT202007-202107

DENSO

main89666-02B80iMZEA12..6F202007-202107

DENSO

main89666-02C90iMZEA12..6F202107-202211

DENSO

main89666-02E00iMZEA12202211-202309

DENSO,*614

main89666-02E90iZRE212..CVT202107-202211

DENSO

main89666-02F00iZRE212..6F202107-202211

DENSO

main89666-02G30iMZEA18202211-202309

DENSO,*614

main89666-02J30iMZEA1#..L,S,Y;MZEA18..D..CND202309-202410

DENSO,*614

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-02420iMZEA1#..L,S,Y;MZEA18..D..CND201903-202410

main89667-02480iZRE212201903-202211

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-02400iMZEA12201903-202410

main89668-02480iZRE212201903-202211

9011906958

main90119-06958¥60

9011906A06

main90119-06A06¥60

90119A0255

main90119-A0255

90119A0416

main90119-A0416

9015350015

main90153-50015¥60

90153A0003

main90153-A0003

90178A0023

main90178-A0023

9415180600

main94151-80600¥60

17 parts on this diagram · 2 diagrams in section
