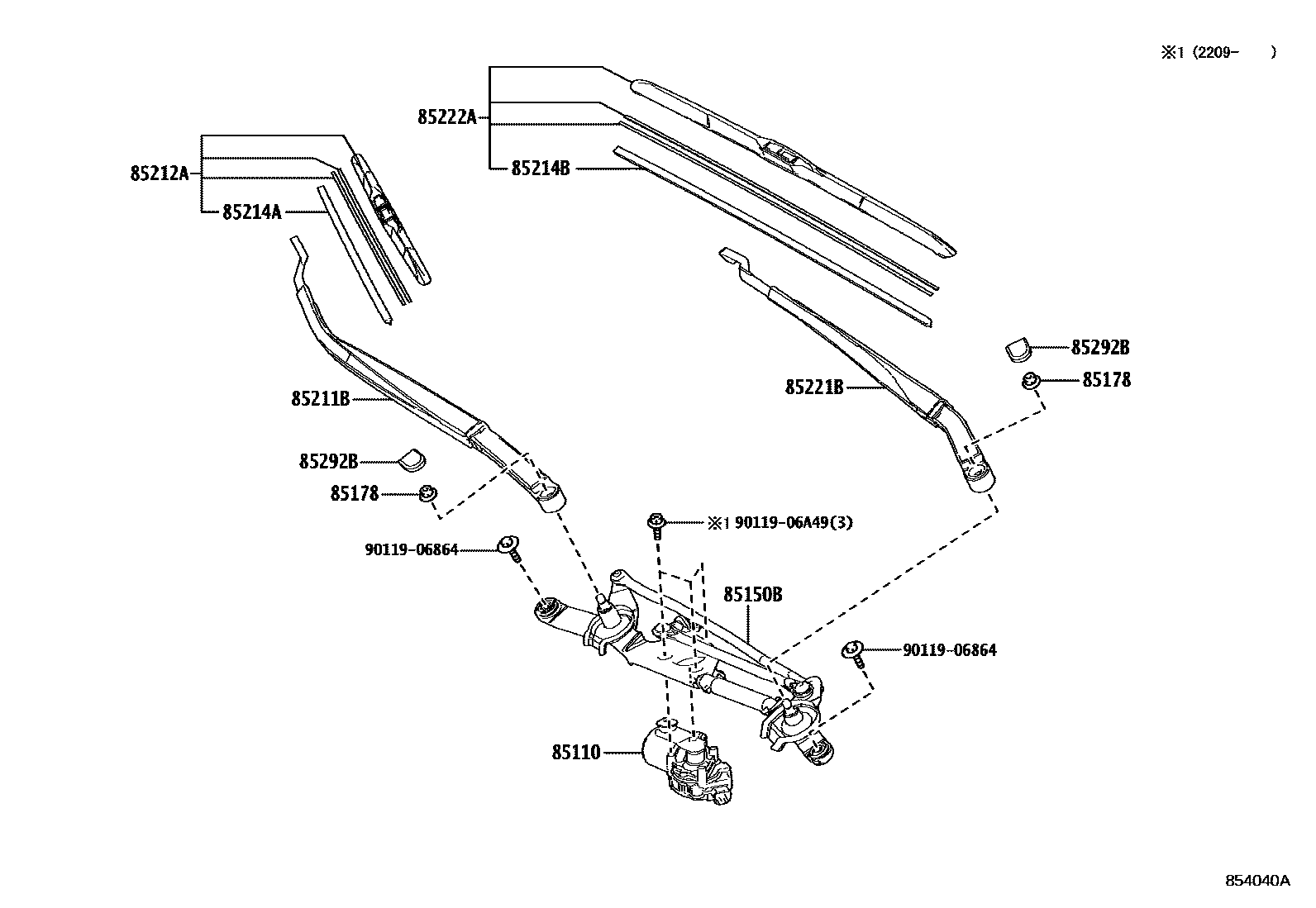

Toyota COROLLA SED (JPP) — WINDSHIELD WIPER

0001 1 0002 1 0003 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-12C30iZRE212,ZWE211..LHD201901-202004

main85110-12C30iMZEA18,ZWE219..LHD202409

main85110-12C30iZRE212,ZWE21#..LHD202004-202208

main85110-12C30iMZEA18,ZWE219..LHD202209-202409

main85110-12C70iMZEA12,ZWE219..L..ARL202409

main85110-12C70iMZEA12,ZWE219..ARL202209-202409

main85110-12C70iMZEA12,ZRE212,ZWE211..RHD202004-202208

main85110-12C70iMZEA18..RHD202209-202307

main85110-12C70iMZEA12..D202409-202507

main85110-12C70iMZEA12,ZRE212,ZWE211..RHD201909-202004

85150BLINK ASSY, WIPER

main85150-12B80iZRE212,ZWE21#..LHD202004-202208

main85150-12B80iZRE212,ZWE211..LHD201901-202004

main85150-12B81iMZEA18,ZWE219..LHD202209-202409

main85150-12B81iMZEA18,ZWE219..LHD202409

main85150-12B90iMZEA12..D¥6,300202409-202507

main85150-12B90iMZEA12,ZRE212,ZWE211..RHD¥6,300202004-202208

main85150-12B90iMZEA18..RHD¥6,300202209-202307

main85150-12B90iMZEA12,ZWE219..ARL¥6,300202209-202409

main85150-12B90iMZEA12,ZWE219..L..ARL¥6,300202409

main85150-12B90iMZEA12,ZRE212,ZWE211..RHD¥6,300201909-202004

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006iMZEA12..D¥80202409-202507

main90182-10006iMZEA18;MZEA12,ZWE219..L¥80202409

main90182-10006iMZEA12,ZRE212,ZWE211¥80201901-202004

main90182-10006iMZEA12,ZRE212,ZWE21#¥80202004-202208

main90182-10006iMZEA18..RHD¥80202209-202307

main90182-10006iMZEA18..LHD;MZEA12,ZWE219¥80202209-202409

85211BARM, FRONT WIPER, RH

main85211-12660iMZEA18,ZWE219..LHD¥4,160202209-202409

main85211-12660iMZEA18,ZWE219..LHD¥4,160202409

main85211-12660iZRE212,ZWE21#..LHD¥4,160202004-202208

main85211-12660iZRE212,ZWE211..LHD¥4,160201901-202004

main85211-12680iMZEA12,ZRE212,ZWE211..RHD202004-202208

main85211-12680iMZEA12..D202409-202507

main85211-12680iMZEA12,ZWE219..L..ARL202409

main85211-12680iMZEA12,ZRE212,ZWE211..RHD201909-202004

main85211-12680iMZEA18..RHD202209-202307

main85211-12680iMZEA12,ZWE219..ARL202209-202409

85212ABLADE, FR WIPER, RH

main85212-52220iZRE212,ZWE211..LHD¥1,480201901-202004

main85212-52220iMZEA18,ZWE219..LHD¥1,480202409

main85212-52220iMZEA18,ZWE219..LHD¥1,480202209-202409

main85212-52220iZRE212,ZWE21#..LHD¥1,480202004-202208

main85212-52240iMZEA18..RHD¥4,620202209-202307

main85212-52240iMZEA12,ZWE219..ARL¥4,620202209-202409

main85212-52240iMZEA12..D¥4,620202409-202507

main85212-52240iMZEA12,ZWE219..L..ARL¥4,620202409

main85212-52240iMZEA12,ZRE212,ZWE211..RHD¥4,620201909-202004

main85212-52240iMZEA12,ZRE212,ZWE211..RHD¥4,620202004-202208

85214ARUBBER, WIPER, RH

main85214-28080iMZEA12..D¥900202409-202507

main85214-28080iMZEA12,ZWE219..L..ARL¥900202409

main85214-28080iMZEA12,ZWE219..ARL¥900202209-202409

main85214-28080iMZEA18..RHD¥900202209-202307

main85214-28080iMZEA12,ZRE212,ZWE211..RHD¥900201909-202004

main85214-28080iMZEA12,ZRE212,ZWE211..RHD¥900202004-202208

main85214-68030iZRE212,ZWE21#..LHD¥750202004-202208

main85214-68030iMZEA18,ZWE219..LHD¥750202409

main85214-68030iZRE212,ZWE211..LHD¥750201901-202004

main85214-68030iMZEA18,ZWE219..LHD¥750202209-202409

85214BRUBBER, WIPER, LH

main85214-28080iZRE212,ZWE211..LHD¥900201901-202004

main85214-28080iMZEA18,ZWE219..LHD¥900202409

main85214-28080iMZEA18,ZWE219..LHD¥900202209-202409

main85214-28080iZRE212,ZWE21#..LHD¥900202004-202208

main85214-68030iMZEA18..RHD¥750202209-202307

main85214-68030iMZEA12,ZRE212,ZWE211..RHD¥750201909-202004

main85214-68030iMZEA12,ZRE212,ZWE211..RHD¥750202004-202208

main85214-68030iMZEA12,ZWE219..ARL¥750202209-202409

main85214-68030iMZEA12,ZWE219..L..ARL¥750202409

main85214-68030iMZEA12..D¥750202409-202507

85221BARM, FRONT WIPER, LH

main85221-12590iZRE212,ZWE211..LHD¥3,810201901-202004

main85221-12590iZRE212,ZWE21#..LHD¥3,810202004-202208

main85221-12591iMZEA18,ZWE219..LHD202209-202409

main85221-12591iMZEA18,ZWE219..LHD202409

main85221-12600iMZEA12,ZWE219..ARL¥4,160202209-202409

main85221-12600iMZEA12..D¥4,160202409-202507

main85221-12600iMZEA12,ZWE219..L..ARL¥4,160202409

main85221-12600iMZEA12,ZRE212,ZWE211..RHD¥4,160201909-202004

main85221-12600iMZEA12,ZRE212,ZWE211..RHD¥4,160202004-202208

main85221-12600iMZEA18..RHD¥4,160202209-202307

85222ABLADE, FR WIPER, LH

main85222-12A80iMZEA12,ZRE212,ZWE211..RHD¥1,480201909-202004

main85222-12A80iMZEA12..D¥1,480202409-202507

main85222-12A80iMZEA12,ZWE219..L..ARL¥1,480202409

main85222-12A80iMZEA12,ZRE212,ZWE211..RHD¥1,480202004-202208

main85222-12A80iMZEA18..RHD¥1,480202209-202307

main85222-12A80iMZEA12,ZWE219..ARL¥1,480202209-202409

main85222-12A90iMZEA18,ZWE219..LHD¥4,200202409

main85222-12A90iZRE212,ZWE21#..LHD¥4,200202004-202208

main85222-12A90iZRE212,ZWE211..LHD¥4,200201901-202004

main85222-12A90iMZEA18,ZWE219..LHD¥4,200202209-202409

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010iMZEA12..D¥250202409-202507

main85292-13010iMZEA18;MZEA12,ZWE219..L¥250202409

main85292-13010iMZEA12,ZRE212,ZWE211¥250201901-202004

main85292-13010iMZEA12,ZRE212,ZWE21#¥250202004-202208

main85292-13010iMZEA18..RHD¥250202209-202307

main85292-13010iMZEA18..LHD;MZEA12,ZWE219¥250202209-202409

9011906864

main90119-06864¥80

9011906A49

main90119-06A49

12 parts on this diagram · 3 diagrams in section
