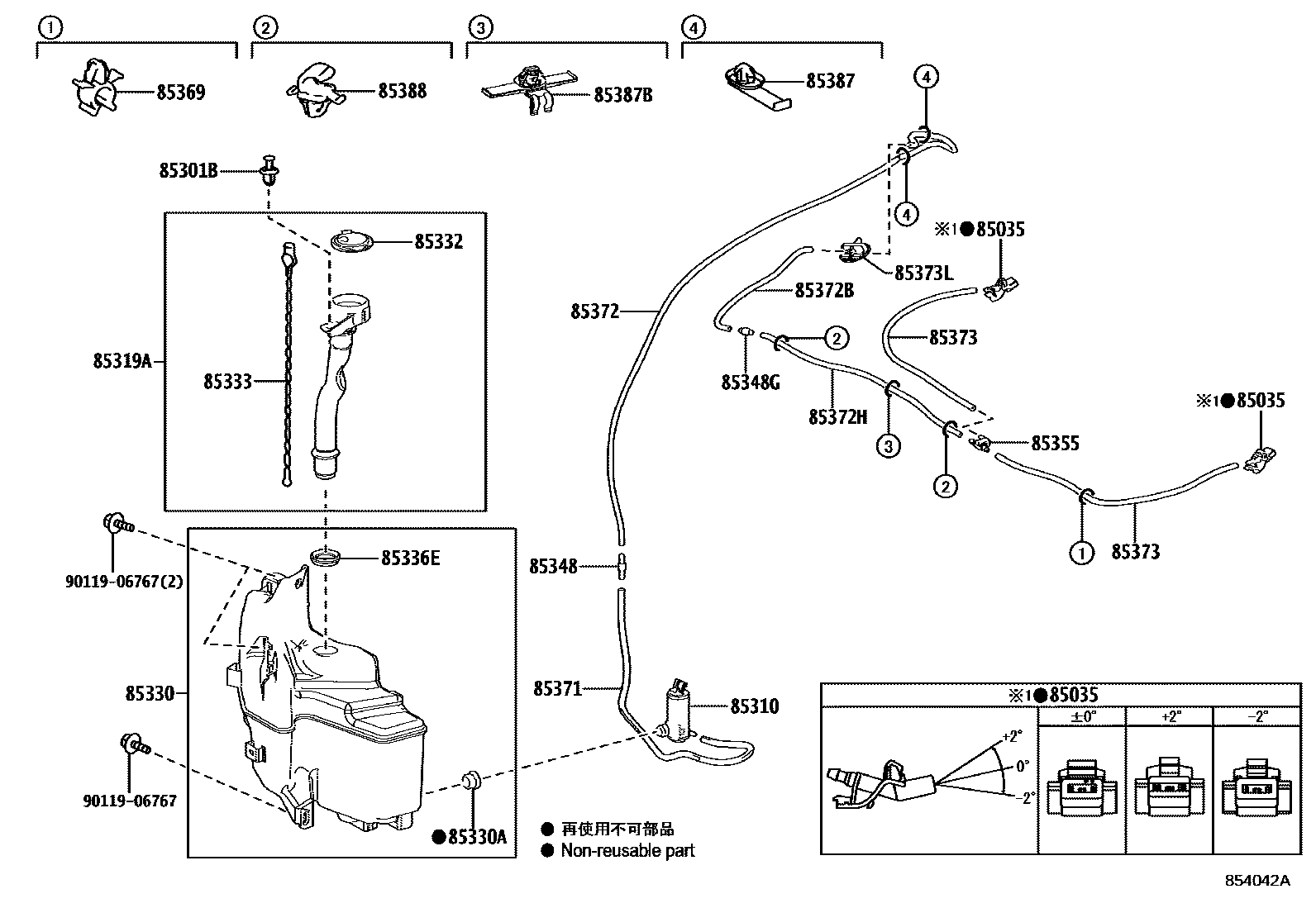

Toyota COROLLA SED (JPP) — WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
ANGLE 0
ANGLE 0
ANGLE 0
ANGLE 0
ANGLE 0
ANGLE 0
ANGLE +2
ANGLE +2
ANGLE +2
ANGLE +2
ANGLE +2
ANGLE +2
ANGLE -2
ANGLE -2
ANGLE -2
ANGLE -2
ANGLE -2
ANGLE -2
85301BCLIP, WASHER
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85319AHOSE, INLET
85330JAR ASSY, WINDSHIELD WASHER
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
85333FILTER, WINDSHIELD WASHER JAR
85336EPACKING, WINDSHIELD WASHER INLET HOSE
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85355VALVE, WINDSHIELD WASHER HOSE
85369CLAMP
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
L=1450(*H,L=500)
L=1450(*H,L=500)
L=1450(*H,L=500)
L=1450(*H,L=500)
L=1450(*H,L=500)
L=1450(*H,L=500)
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=1090
L=1090
L=1090
L=1090
L=1090
L=1090
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
L=1450(*H,L=280)
L=1450(*H,L=280)
L=1450(*H,L=280)
L=1450(*H,L=280)
L=1450(*H,L=280)
L=1450(*H,L=280)
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
L=1450(*H,L=510)
L=1450(*H,L=510)
L=1450(*H,L=490)
L=1450(*H,L=510)
L=1450(*H,L=510)
L=1450(*H,L=510)
L=1450(*H,L=510)
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=465
L=465
L=1450(*H,L=450)
L=465
L=465
L=465
L=465
85373LGROMMET, WASHER
85387CLAMP NO.1 (FOR WINDSEIELD WASHER)
85387BCLAMP, WASHER, NO.3
85388CLAMP NO.2 (FOR WINDSEIELD WASHER)
9011906767
23 parts on this diagram · 2 diagrams in section
