Toyota COROLLA SED (JPP) — TIRE PRESSURE WARNING SYSTEM

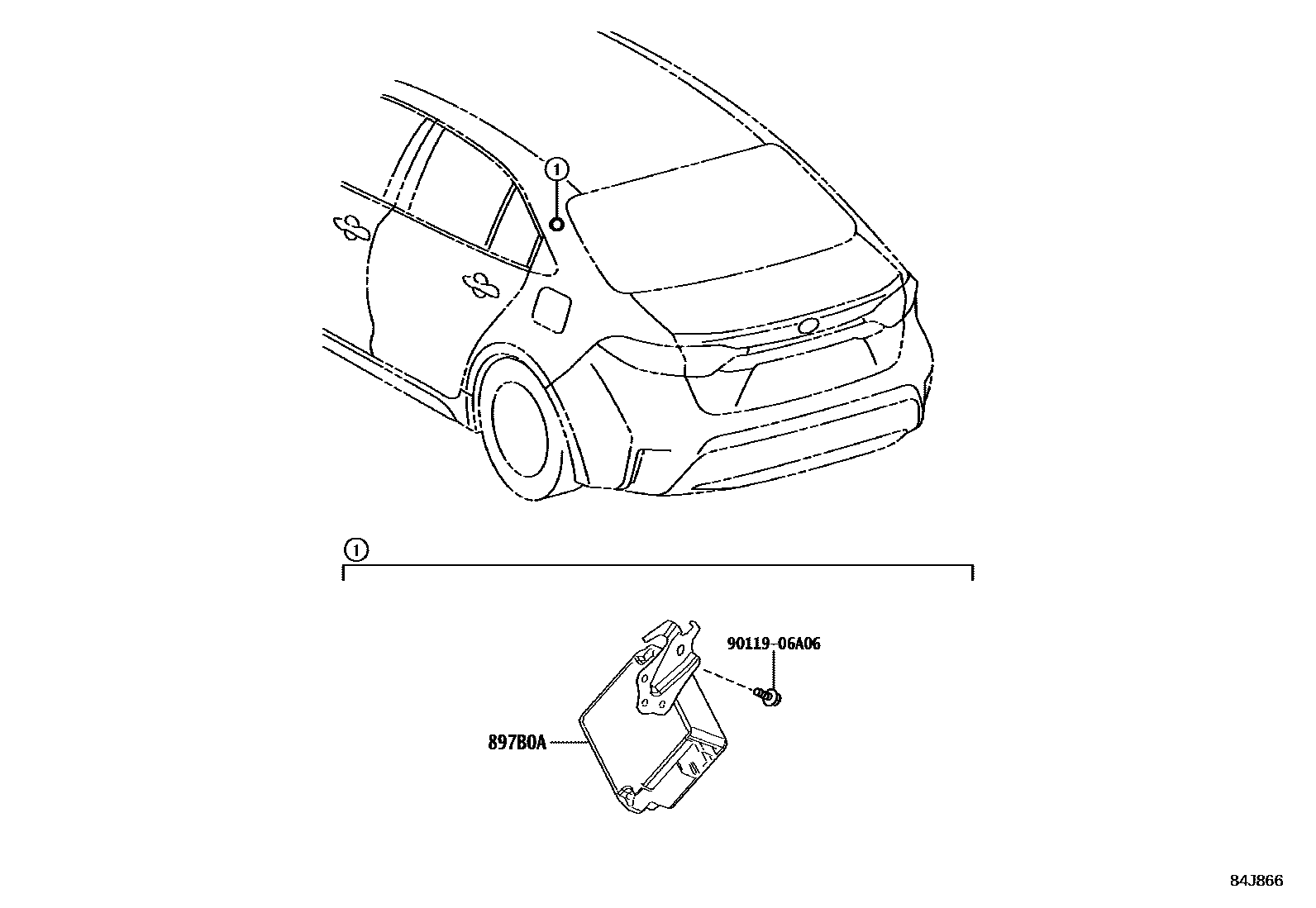

Parts diagram

897B0ARECEIVER ASSY, ELECTRICAL KEY & TPMS

main897B0-12040i201901-202106

main897B0-12170i202106-202208

main897B0-12180i202209-202409

9011906A06

main90119-06A06¥60

2 parts on this diagram · 1 diagram in section
