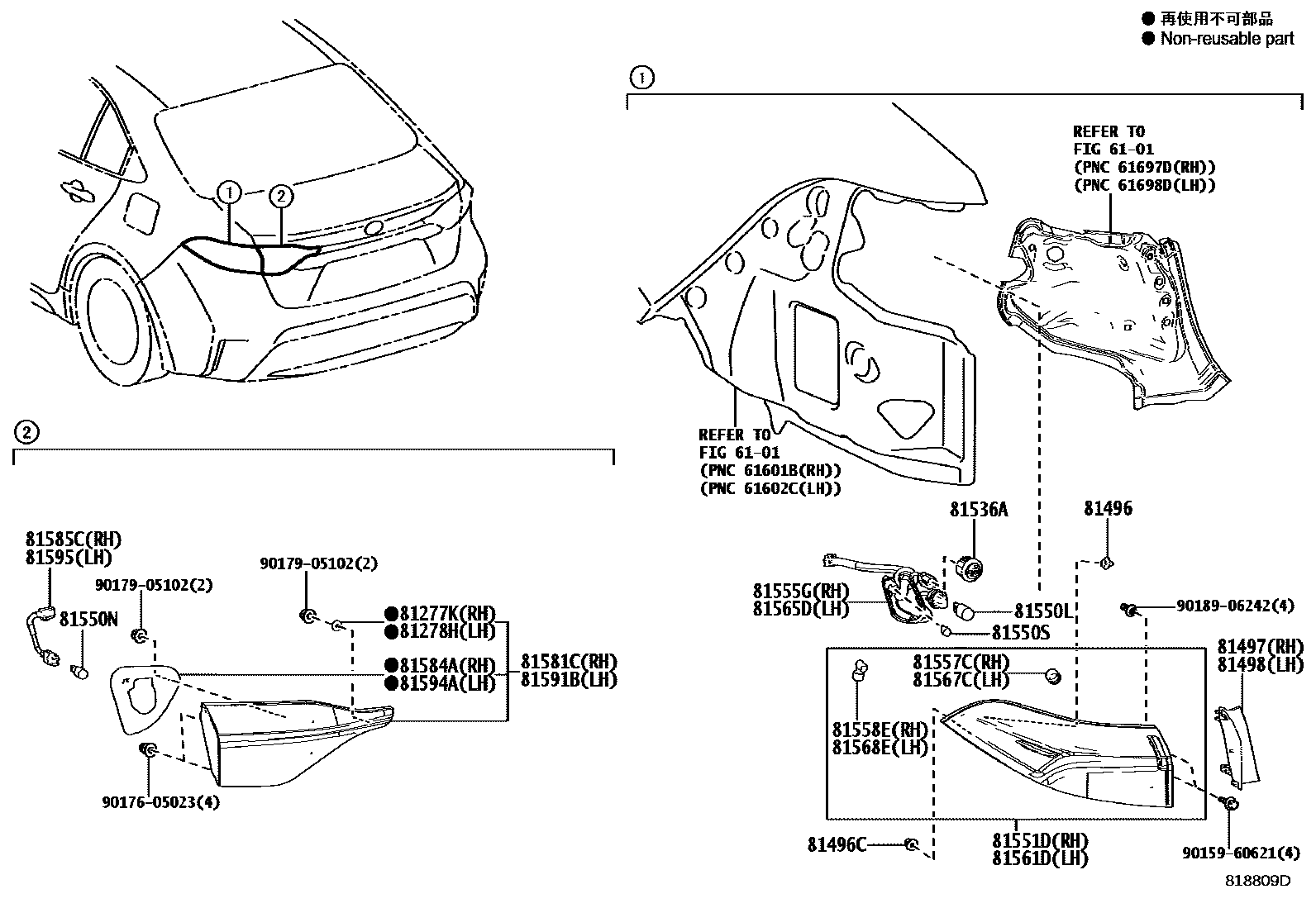

Toyota COROLLA SED (JPP) — REAR COMBINATION LAMP

0001 1 0002 1

6101

81277KSHADE, LICENSE PLATE LAMP, RH

main81277-20240iMZEA12,ZRE212,ZWE211¥100201901-202507

81278HSHADE, LICENSE PLATE LAMP, LH

main81277-20240iMZEA12..D¥100201901-202507

81496GUIDE, REAR COMBINATION LAMP

main81496-60010iMZEA12..D¥100201901-202507

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-52020iMZEA12..D¥70201901-202507

81497COVER, REAR COMBINATION LAMP, RH

main81497-12010iMZEA12..D201901-202507

81498COVER, REAR COMBINATION LAMP, LH

main81498-12010iMZEA12..D201901-202507

81536ALED, REAR COMBINATION LAMP

main81536-15120iMZEA12,ZRE212,ZWE211¥2,850201901-202208

main81536-15120iMZEA18..RHD¥2,850202209-202404

TYPE A

main81965-70010iMZEA1#,ZWE219¥3,210202402-202409

TYPE B

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15021iMZEA18..LHD;MZEA12,ZWE219¥300201901-202507

12V 21W,AMBER

81550NBULB, BACK UP LAMP

main90981-11059iMZEA12,ZRE212,ZWE211..RHD¥200201901-202507

12V 16W

81550SBULB, REAR SIDE MARKER LAMP

main90981-11069iMZEA18,ZWE219..LHD¥110201901-202409

12V 5W

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-12D10iZRE212,ZWE21#..LHD201901-202409

main81551-12D50iMZEA12,ZRE212,ZWE211..RHD201909-202507

81555GCORD, REAR COMBINATION LAMP, RH

main81555-12D10iMZEA18,ZWE219..LHD201901-202409

main81555-12D50iMZEA18..RHD201909-202507

81557CCOVER, REAR COMBINATION LAMP, RH

main90075-15512iMZEA18;MZEA12,ZWE219..L¥610201901-202507

81558ECOVER, REAR COMBINATION LAMP, RH

main90075-15513iMZEA18..LHD;MZEA12,ZWE219201901-202507

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-12D10iZRE212,ZWE211..LHD201901-202409

main81561-12D50iMZEA18..RHD201909-202507

81565DCORD, REAR COMBINATION LAMP, LH

main81565-12D10iZRE212,ZWE21#..LHD201901-202409

main81565-12D50iMZEA12..D201909-202507

81567CCOVER, REAR COMBINATION LAMP, LH

main90075-15512iMZEA12,ZRE212,ZWE21#¥610201901-202507

81568ECOVER, REAR COMBINATION LAMP, LH

main90075-15513iMZEA12..D201901-202507

81581CLENS AND BODY, REAR LAMP, RH

main81581-12250iZRE212,ZWE211..LHD201901-202409

main81581-12300iMZEA12,ZRE212,ZWE211..RHD201909-202507

81584AGASKET, REAR LAMP RH

main81584-12280iMZEA18..LHD;MZEA12,ZWE219201901-202507

81585CSOCKET & WIRE, REAR LAMP, RH

main81585-12250iZRE212,ZWE211..LHD201901-202409

main81585-12300iMZEA18..RHD201909-202507

81591BLENS AND BODY, REAR LAMP, LH

main81591-12220iMZEA12..D201901-202507

81594AGASKET, REAR LAMP LH

main81584-12280iMZEA12..D201901-202507

81595SOCKET & WIRE, REAR LAMP, LH

main81585-12250iMZEA12..D201901-202507

9015960621

main90159-60621¥60

9017605023

main90176-05023¥80

9017905102

main90179-05102¥90

9018906242

main90189-06242¥70

29 parts on this diagram · 2 diagrams in section
