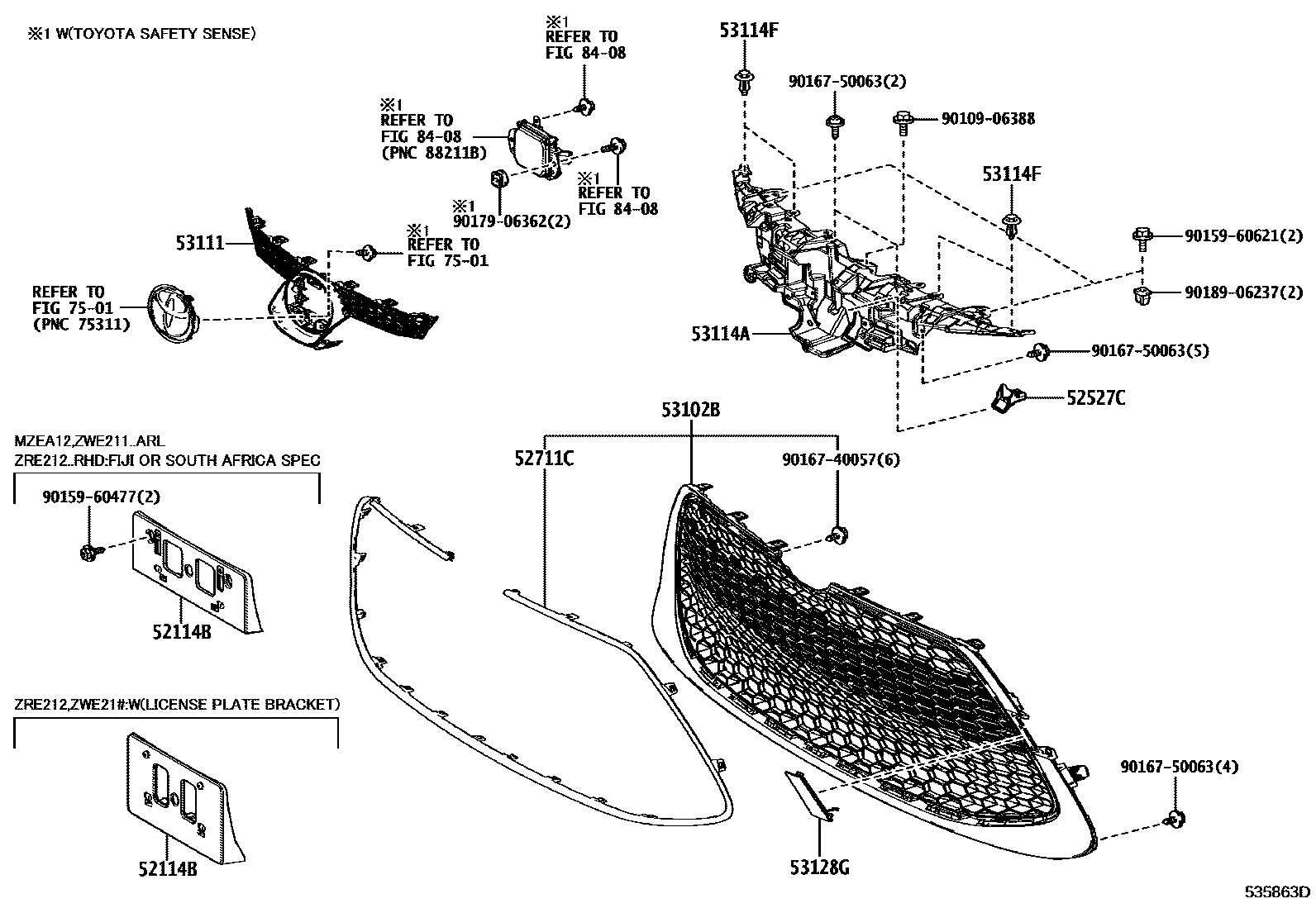

Toyota COROLLA SED (JPP) — RADIATOR GRILLE

0001 1 0002 1

52114BBRACKET, FRONT BUMPER EXTENSION MOUNTING

main52114-12290iZRE212..RHD201909-202208

FIJI SPEC

main52114-12290iZRE212..RHD202004-202208

SOUTH AFRICA SPEC

main52114-12400iMZEA18..RHD..L202209-202307

LICENSE PLATE BRACKET-WITH

main52114-12410iMZEA12..D202209-202507

52527CRETAINER, FRONT BUMPER, LOWER NO.2

main52527-12060iMZEA12,ZRE212,ZWE211¥510201901-202507

52711CMOULDING, FRONT BUMPER

main52711-12420iMZEA12,ZRE212,ZWE21#¥2,820201901-202208

main52711-12450iMZEA18..LHD;MZEA12,ZWE219¥3,540202209-202507

53102BGRILLE SUB-ASSY, RADIATOR, LOWER

main53102-12070iZRE212,ZWE21#..GEN,MXC202004-202208

CENTRAL AMERICA 1 SPEC

sub53102-02280

main53102-12070iZWE211..ARL202004-202208

CENTRAL AMERICA 2 SPEC

sub53102-02280

main53102-12070iZRE212,ZWE211..GEN,MXC201901-202004

sub53102-02280

main53102-12150iZRE212..RHD..L202004-202208

SOUTH AFRICA SPEC

main53102-12150iZRE212..RHD201909-202208

FIJI SPEC

main53102-12230iMZEA18..RHD202209-202409

main53102-12310iMZEA12..D202209-202507

53111GRILLE, RADIATOR

main53111-12E60iMZEA12..D¥6,300201901-202507

NO PAINT REQ.

53114AGRILLE, RADIATOR, INNER

main53114-12240iMZEA12..D¥4,570201901-202507

53114FCLIP, RADIATOR GRILLE

main90467-05063-C0iMZEA12..D201901-202507

BLACK

sub90467-05063¥70

53128GGRILLE, RADIATOR, LOWER SIDE LH

main53128-12050iMZEA12,ZRE212,ZWE211¥400201901-202208

main53128-12190iMZEA12..D¥360202209-202507

7501

8408

9010906388

main90109-06388¥70

9015960477

main90159-60477¥70

9015960621

main90159-60621¥60

9016740057

main90167-40057¥60

9016750063

main90167-50063¥60

9017906362

main90179-06362¥60

9018906237

main90189-06237¥100

17 parts on this diagram · 2 diagrams in section
