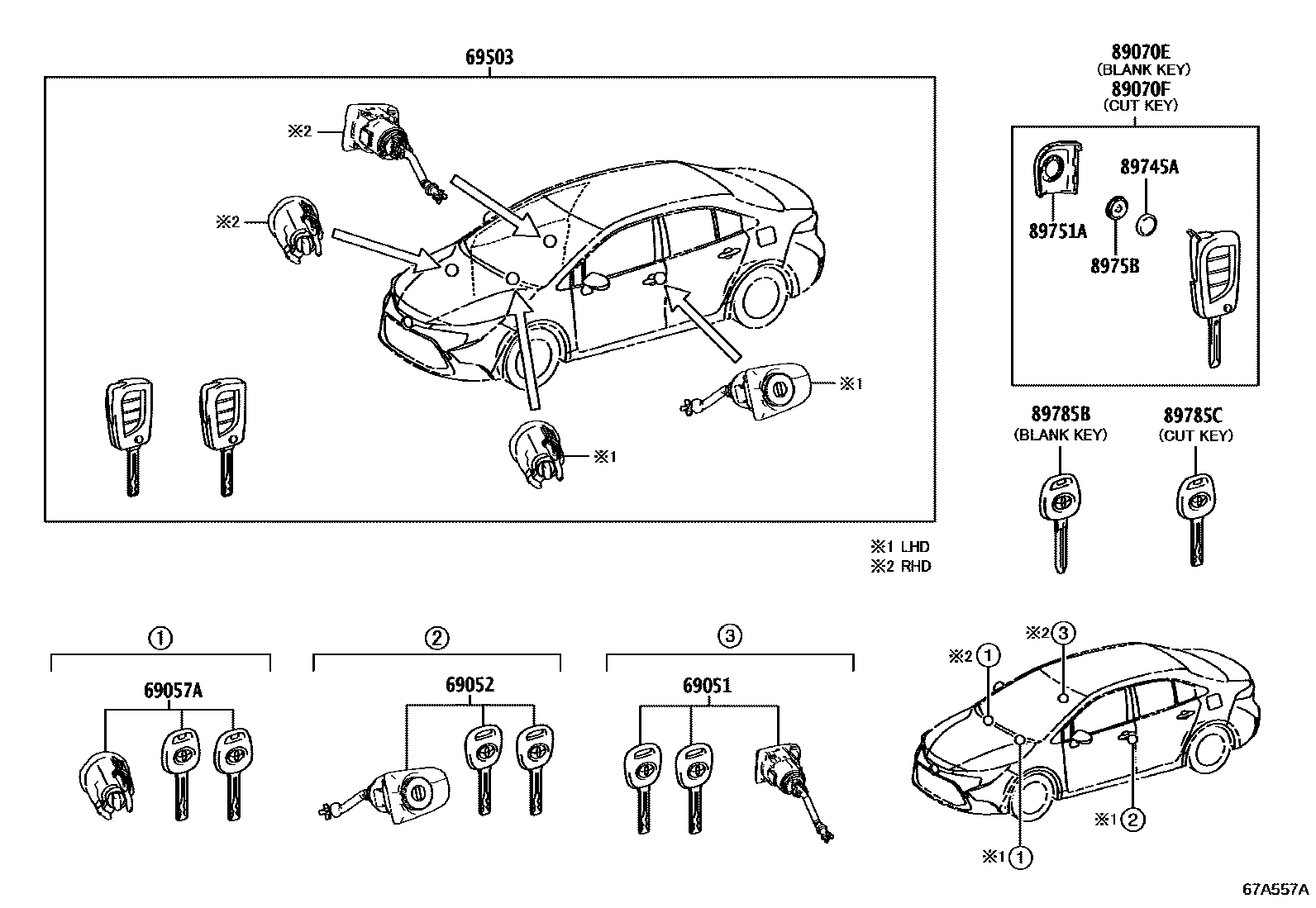

Toyota COROLLA SED (JPP) — LOCK CYLINDER SET

0001 1WITHOUT(SMART ENTRY) 0002 1WITH(SMART ENTRY) 0003 1WITH(SMART ENTRY)

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-12840iMZEA12,ZRE212..RHD..D201909-202208

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-12690iMZEA18..D201901-202409

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-33410iMZEA12,ZRE212..D201901-202001

main69057-K0020iMZEA18..D202001-202409

69503CYLINDER SET, LOCK

main69005-12J20iZRE212,ZWE21#..LHD..L201901-202208

main69005-12J21iMZEA18,ZWE219..LHD..L202209-202409

main69005-12J40iMZEA12,ZRE212,ZWE211..RHD..L202004-202208

SOUTH AFRICA SPEC&WITH(SMART ENTRY) & WITHOUT(PANIC ALARM)

main69005-12J40iMZEA12,ZRE212,ZWE211..RHD..L201909-202004

main69005-12J41iMZEA12..D202209-202507

main89704-12F70iMZEA18..D201901-202409

main89704-12G20iMZEA12..D201909-202204

SOUTH AFRICA SPEC&SPARE TIRE-T125/70D17&WITH(SMART ENTRY) & WITHOUT(PANIC ALARM)

sub89704-12G21

main89704-12G21iMZEA12..6F202205-202208

SOUTH AFRICA SPEC&SPARE TIRE-T125/70D17&WITH(SMART ENTRY) & WITHOUT(PANIC ALARM)

main89704-12G30iZRE212..RHD..D201909-202208

89070ETRANSMITTER ASSY, DOOR CONTROL

main89070-12B70iMZEA18..D201901-202409

main89070-12D40iMZEA12..6F201909-202208

SOUTH AFRICA SPEC&WITH(SMART ENTRY) & WITHOUT(PANIC ALARM)

89070FTRANSMITTER ASSY, DOOR CONTROL (CUT KEY)

main89070-12C00iMZEA18..LHD..D201901-202409

main89070-12D50iMZEA12..6F201909-202208

SOUTH AFRICA SPEC&WITH(SMART ENTRY) & WITHOUT(PANIC ALARM)

89745ABATTERY, TRANSMITTER

main89745-50020iMZEA18..LHD..D¥440201901-202409

CR2032

main89745-50020iMZEA12,ZRE212..D¥440202004-202208

CR2032,SOUTH AFRICA SPEC&SPARE TIRE-T125/70D17&WITH(SMART ENTRY) & WITHOUT(PANIC ALARM)

89751ACOVER, TRANSMITTER HOUSING

main89751-33200iMZEA12..6F¥270202004-202208

SOUTH AFRICA SPEC&SPARE TIRE-T125/70D17&WITH(SMART ENTRY) & WITHOUT(PANIC ALARM)

main89751-33200iMZEA18..LHD..D¥270201901-202409

8975BCOVER, TRANSMITTER BATTERY HOUSING

main8975B-33050iMZEA18..LHD..D¥170201901-202409

main8975B-33050iMZEA12..6F¥170202004-202208

SOUTH AFRICA SPEC&SPARE TIRE-T125/70D17&WITH(SMART ENTRY) & WITHOUT(PANIC ALARM)

89785BTRANSMITTER, TRANSPONDER KEY MASTER

main89785-28060iMZEA12,ZRE212..D201901-202409

main89785-28060iMZEA12..6F202004-202208

SOUTH AFRICA SPEC&WITH(SMART ENTRY) & WITHOUT(PANIC ALARM)

89785CTRANSMITTER, TRANSPONDER KEY MASTER

main89785-28070iMZEA18..LHD..D¥7,800201901-202409

main89785-28070iMZEA12..6F¥7,800202004-202208

SOUTH AFRICA SPEC&WITH(SMART ENTRY) & WITHOUT(PANIC ALARM)

11 parts on this diagram · 3 diagrams in section
