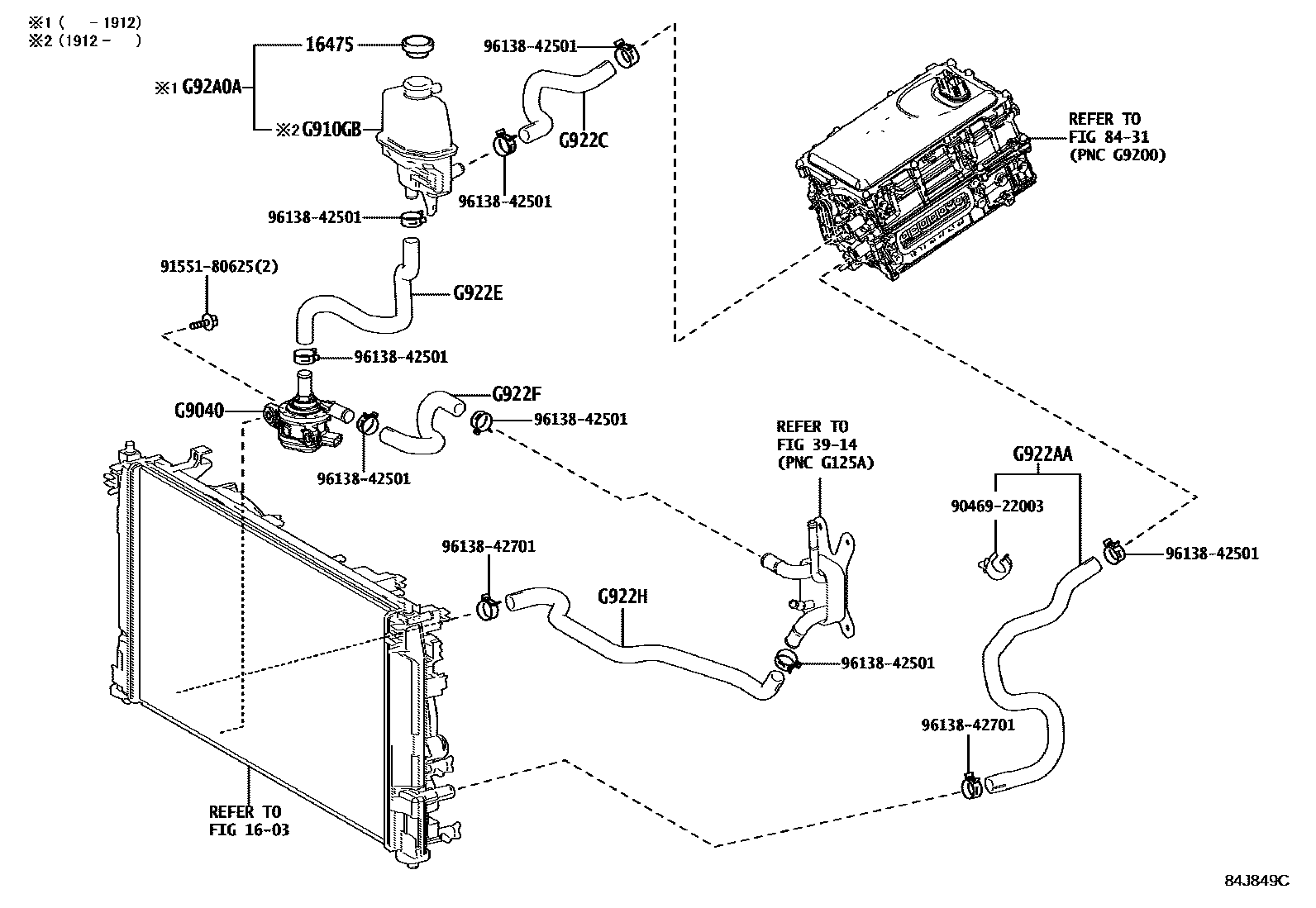

Toyota COROLLA SED (JPP) — INVERTER COOLING

0001 1 0002 1

1603

16475CAP, RESERVE TANK

main16475-28140i2ZRFXE..ZWE211¥1,200201901-202409

3914

8431

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904047020iZWE219202209-202409

mainG904047040iZWE21#201901-202208

G910GBTANK SUB-ASSY, INVERTER RESERVE W/O CAP

mainG910G12010iZWE211201912-202208

mainG910G16010iZWE219202209-202409

G922AAHOSE, INVERTER COOLING INLET, NO.1

mainG922A16020iZWE219202209-202409

mainG922A47010iZWE211201901-202208

G922CHOSE, INVERTER COOLING OUTLET, NO.1

mainG922C16010iZWE219202209-202409

mainG922C47010iZWE21#201901-202208

G922EHOSE, HYBRID WATER PUMP INLET

mainG922E16030iZWE219202209-202409

mainG922E47010iZWE211201901-202208

G922FHOSE, HYBRID WATER PUMP OUTLET, NO.1

mainG922F47010iZWE211201901-202208

G922HHOSE, HYBRID RADIATOR INLET

mainG922H16010iZWE219202209-202409

mainG922H47010iZWE211201901-202208

G92A0ATANK ASSY, INVERTER RESERVE

mainG91H047011iZWE211201901-201912

9046922003

main90469-22003¥110

9155180625

main91551-80625¥60

9613842501

main96138-42501¥180

9613842701

main96138-42701¥200

16 parts on this diagram · 2 diagrams in section
