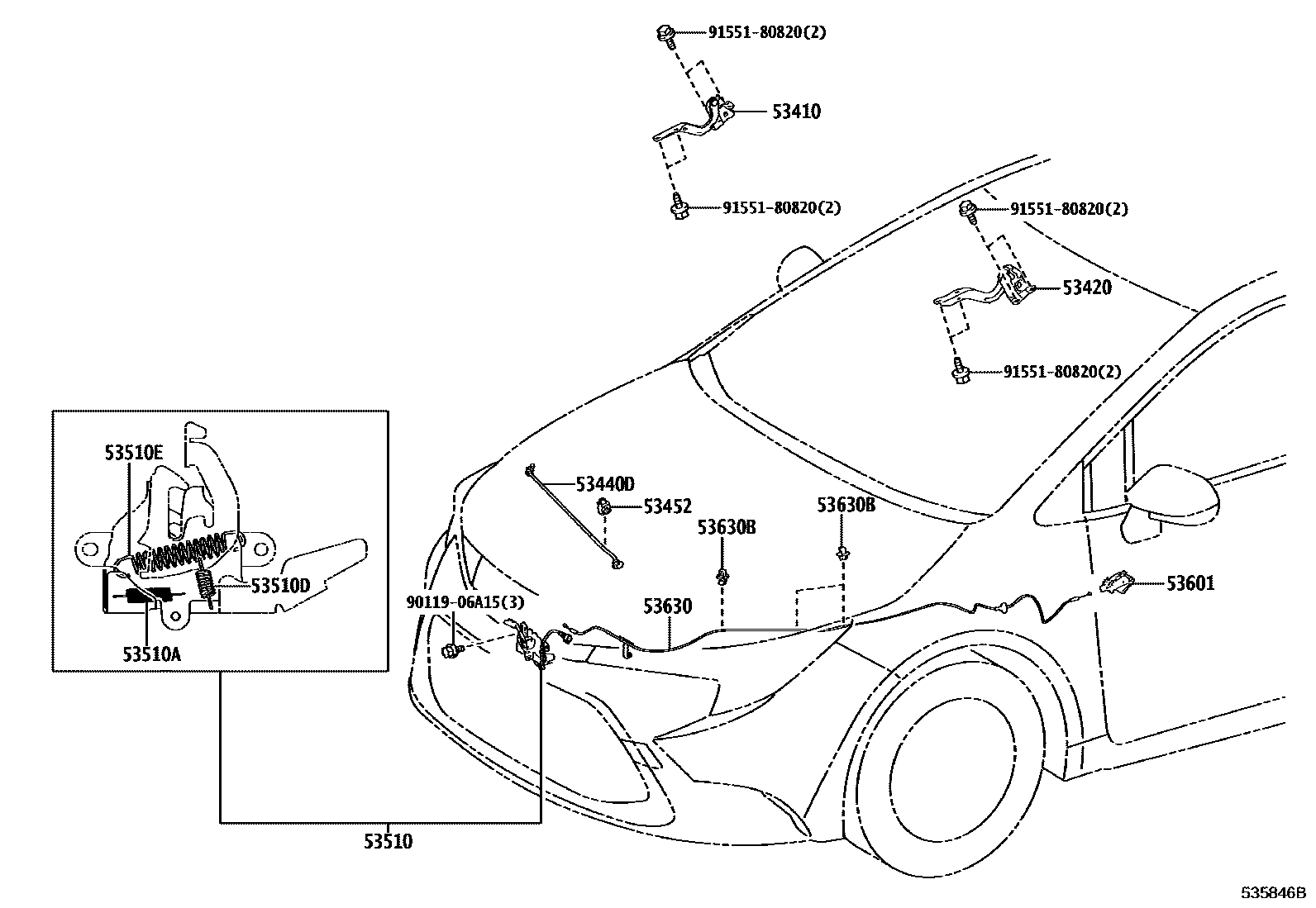

Toyota COROLLA SED (JPP) — HOOD LOCK & HINGE
53410HINGE ASSY, HOOD, RH
53420HINGE ASSY, HOOD, LH
53440DSUPPORT ASSY, HOOD
53452HOLDER, HOOD STAY
53510LOCK ASSY, HOOD
SOUTH AFRICA SPEC
53510ASPRING, TENSION(FOR HOOD LOCK)
WD=0.9,CW=21
WD=0.9,CW=21
WD=0.9,CW=21
WD=0.9,CW=21
WD=0.9,CW=21
WD=0.9,CW=21
53510DSPRING, TENSION(FOR HOOD LOCK)
WD=1.2,CW=8.5
WD=1.2,CW=8.5
WD=1.2,CW=8.5
WD=1.2,CW=8.5
WD=1.2,CW=8.5
WD=1.2,CW=8.5
53510ESPRING, TENSION(FOR HOOD LOCK)
WD=1.6,CW=12
WD=1.8,CW=13
WD=1.8,CW=13
WD=1.8,CW=13
WD=1.8,CW=13
WD=1.8,CW=13
WD=1.8,CW=13
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#
BLACK,TRIM0#,2#
BLACK,TRIM2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM2#
BLACK,TRIM0#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#
53630CABLE ASSY, HOOD LOCK CONTROL
53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)
9011906A15
9155180820
13 parts on this diagram · 2 diagrams in section
