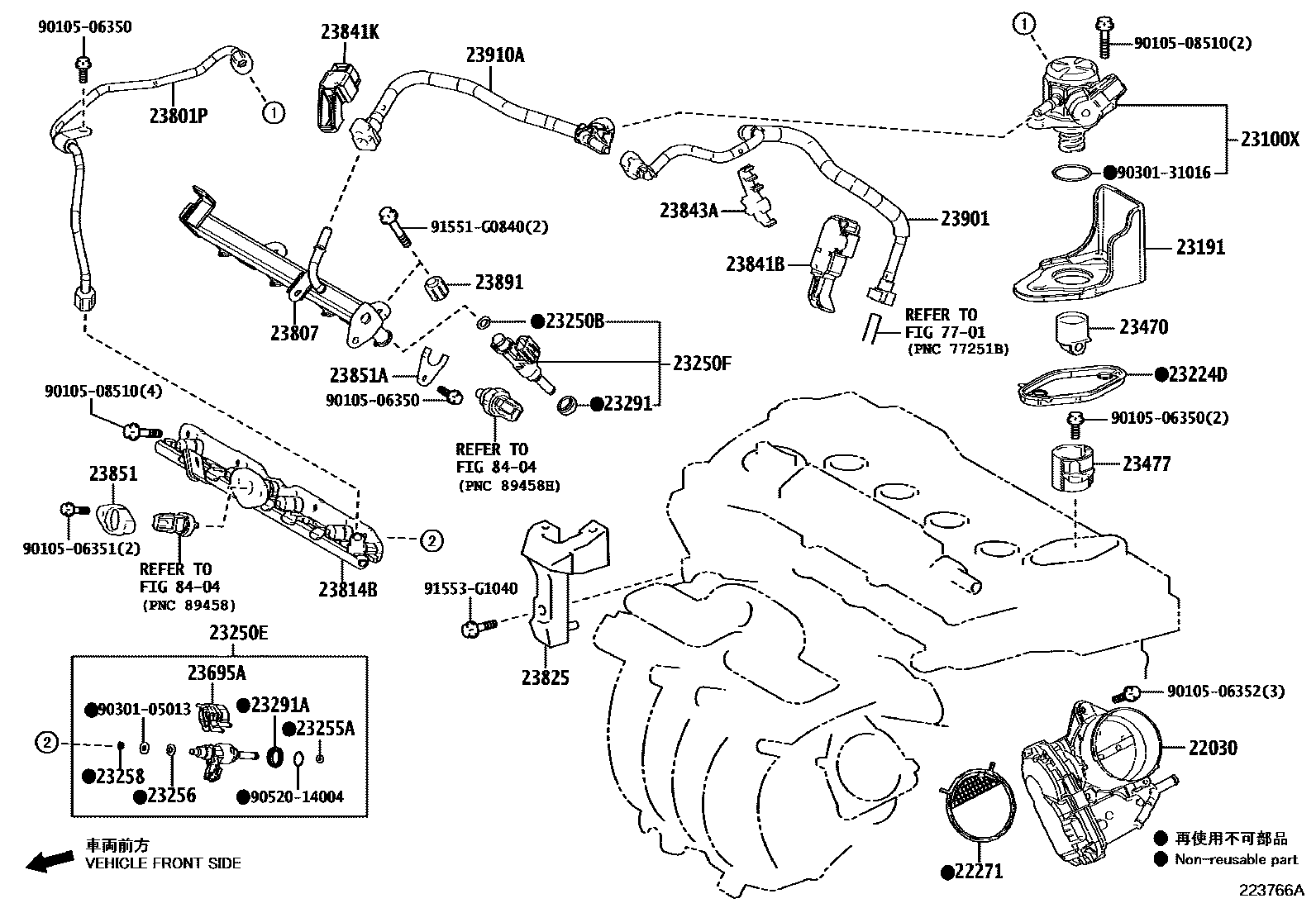

Toyota COROLLA SED (JPP) — FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-24010iM20AFKS..MZEA18;M20AFKS..MZEA12..L¥52,700201909-202507

22271GASKET, THROTTLE BODY

main22271-24010iM20AFKS..MZEA12¥510201909-202507

main22271-37020i2ZRFXE..ZWE219¥260201901-202409

main22271-75031i2ZRFAE..ZRE212¥250201901-202208

23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)

main23101-25040iM20AFKS..MZEA12..D¥55,100201909-202507

23191FLANGE, FUEL PUMP

main23191-25050iM20AFKS..MZEA12¥2,560201909-202507

23224DGASKET, FUEL PUMP SPACER

main23224-25010iM20AFKS..MZEA12¥570201909-202106

sub23224-25011¥510

main23224-25011iM20AFKS..MZEA12¥510202107-202507

23250INJECTOR ASSY, FUEL

main23209-39235i2ZRFAE..ZRE212¥13,900201901-202208

main23209-39295i2ZRFXE..ZWE219¥12,600201901-202409

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037i2ZRFXE..ZWE219¥140201901-202507

main90301-07037iM20AFKS..MZEA12¥140202004-202208

(J)

main90301-C0072iM20AFKS..MZEA12202004-202208

(L)

23250EINJECTOR ASSY, FUEL(FOR DIRECT)

main23209-24010-01iM20AFKS..MZEA12..D201909-202507

MARK 1,REFER REPAIR MANUAL

main23209-24010-02iM20AFKS..MZEA12201909-202507

MARK 2,REFER REPAIR MANUAL

main23209-24010-03iM20AFKS..MZEA12;M20AFKS..MZEA18..LHD201909-202507

MARK 3,REFER REPAIR MANUAL

main23209-24010-04iM20AFKS..MZEA12..D201909-202507

MARK 4,REFER REPAIR MANUAL

main23209-24010-05iM20AFKS..MZEA12..D201909-202507

MARK 5,REFER REPAIR MANUAL

main23209-24010-06iM20AFKS..MZEA12201909-202507

MARK 6,REFER REPAIR MANUAL

main23209-24010-07iM20AFKS..MZEA18..RHD201909-202507

MARK 7,REFER REPAIR MANUAL

main23209-24010-08iM20AFKS..MZEA12;M20AFKS..MZEA18..LHD201909-202507

MARK 8,REFER REPAIR MANUAL

main23209-24010-09iM20AFKS..MZEA12201909-202507

MARK 9,REFER REPAIR MANUAL

23250FINJECTOR ASSY, FUEL(FOR PORT)

main23209-29115iM20AFKS..MZEA12..D¥12,600202303-202507

main23209-29165iM20AFKS..MZEA12¥12,600201909-202303

23255ASEAL, FUEL INJECTOR

main23255-25010iM20AFKS..MZEA12..D¥0201909-202507

23256RING, FUEL INJECTOR BACK-UP, NO.1

main23256-25010iM20AFKS..MZEA12..D¥0201909-202507

23258RING, FUEL INJECTOR BACK-UP, NO.3

main23258-47010iM20AFKS..MZEA12;M20AFKS..MZEA18..LHD¥0201909-202507

23291INSULATOR, INJECTOR VIBRATION

main23291-23010i2ZR#..ZRE212,ZWE21#¥240201901-202208

TYPE A:REFER ILLUST.

main23291-28020i2ZRFXE..ZWE219¥310201909-202507

main23291-28020i2ZR#..ZRE212,ZWE211¥310201901-202208

TYPE B:REFER ILLUST.

23291AINSULATOR, INJECTOR VIBRATION

main23291-31020iM20AFKS..MZEA12..D¥430201909-202507

23470LIFTER ASSY, FUEL PUMP

main23470-25010iM20AFKS..MZEA12..D¥1,480201909-202507

23477GUIDE, FUEL PUMP LIFTER

main23477-25010iM20AFKS..MZEA12;M20AFKS..MZEA18..LHD¥990201909-202507

23695ACLAMP, NOZZLE HOLDER

main23695-24010iM20AFKS..MZEA18;M20AFKS..MZEA12..L¥0201909-202507

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-24070iM20AFKS..MZEA12..D¥4,170201909-202507

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-24020iM20AFKS..MZEA12¥8,600201909-202507

main23814-37051i2ZRFAE..ZRE212¥8,900201901-202208

main23814-37100i2ZRFXE..ZWE21#¥8,600201901-202409

23814BPIPE, FUEL DELIVERY

main23814-24010iM20AFKS..MZEA12¥20,500201909-202210

sub23814-24011¥18,500

main23814-24011iM20AFKS..MZEA12..D¥18,500202211-202507

23825GUARD, FUEL DELIVERY

main23825-24010iM20AFKS..MZEA18;M20AFKS..MZEA12..L¥2,900201909-202507

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-24040iM20AFKS..MZEA18;M20AFKS..MZEA12..L¥1,120201909-202507

main23841-37081i2ZR#..ZRE212,ZWE211¥310201901-202208

main23841-37160i2ZRFXE..ZWE219¥1,150202209-202409

23841KCLAMP, FUEL PIPE

main23841-25040iM20AFKS..MZEA12;M20AFKS..MZEA18..LHD¥460201909-202507

main23841-47020i2ZRFAE..ZRE212¥180201901-202208

23843ACLAMP,FUEL PIPE, NO.3(FOR EFI)

main23847-24010iM20AFKS..MZEA12;M20AFKS..MZEA18..LHD¥380201909-202507

23851HOLDER, FUEL PRESSURE SENSOR, NO.1

main23851-25020iM20AFKS..MZEA18..RHD¥1,310201909-202507

23851AHOLDER, FUEL PRESSURE SENSOR, NO.2

main23851-25030iM20AFKS..MZEA12..D¥660201909-202507

23891SPACER, FUEL DELIVERY

main23891-24010iM20AFKS..MZEA12;M20AFKS..MZEA18..LHD¥240201909-202507

23901TUBE SUB-ASSY, FUEL

main23901-24011iM20AFKS..MZEA12..D¥4,810201909-202507

main23901-37260i2ZRFXE..ZWE211..MXC¥3,650201901-202208

main23901-37270i2ZRFXE..ZWE211..ARL¥4,020201909-202208

main23901-37300i2ZRFAE..ZRE212¥3,950201901-202208

main23901-37350i2ZRFXE..ZWE219¥3,650202209-202409

23910ATUBE SUB-ASSY, FUEL

main23901-24071iM20AFKS..MZEA12..D¥2,780201909-202507

7701

8404

9010506350

main90105-06350¥60

9010506351

main90105-06351¥60

9010506352

main90105-06352¥60

9010508510

main90105-08510¥80

9030105013

main90301-05013¥0

9030131016

main90301-31016¥0

9052014004

main90520-14004¥0

91551G0840

main91551-G0840¥80

91553G1040

main91553-G1040¥290

40 parts on this diagram · 4 diagrams in section
