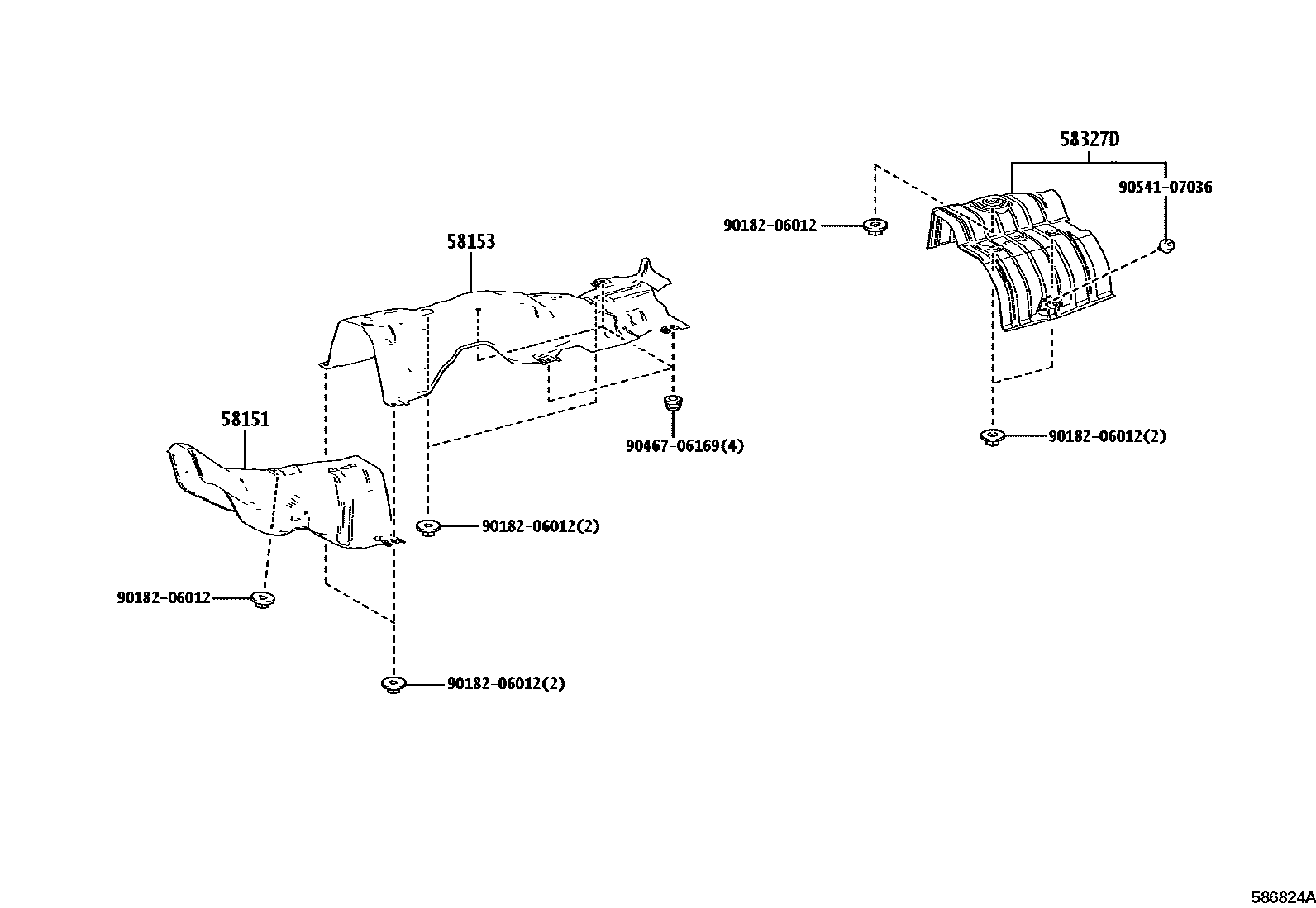

Toyota COROLLA SED (JPP) — FLOOR INSULATOR

0001 1 0002 1 0003 1

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-12380iZRE212¥4,330201901-202208

main58151-12390iMZEA12..D201909-202507

main58151-12420iZWE211¥4,330201901-202208

main58151-16060iZWE219¥3,640202209-202409

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-12200iMZEA12..D201901-202507

58327DINSULATOR, MAIN MUFFLER HEAT, UPPER

main58327-12240iMZEA12..D201901-202507

9018206012

main90182-06012¥60

9046706169

main90467-06169¥80

9054107036

main90541-07036¥110

6 parts on this diagram · 3 diagrams in section
