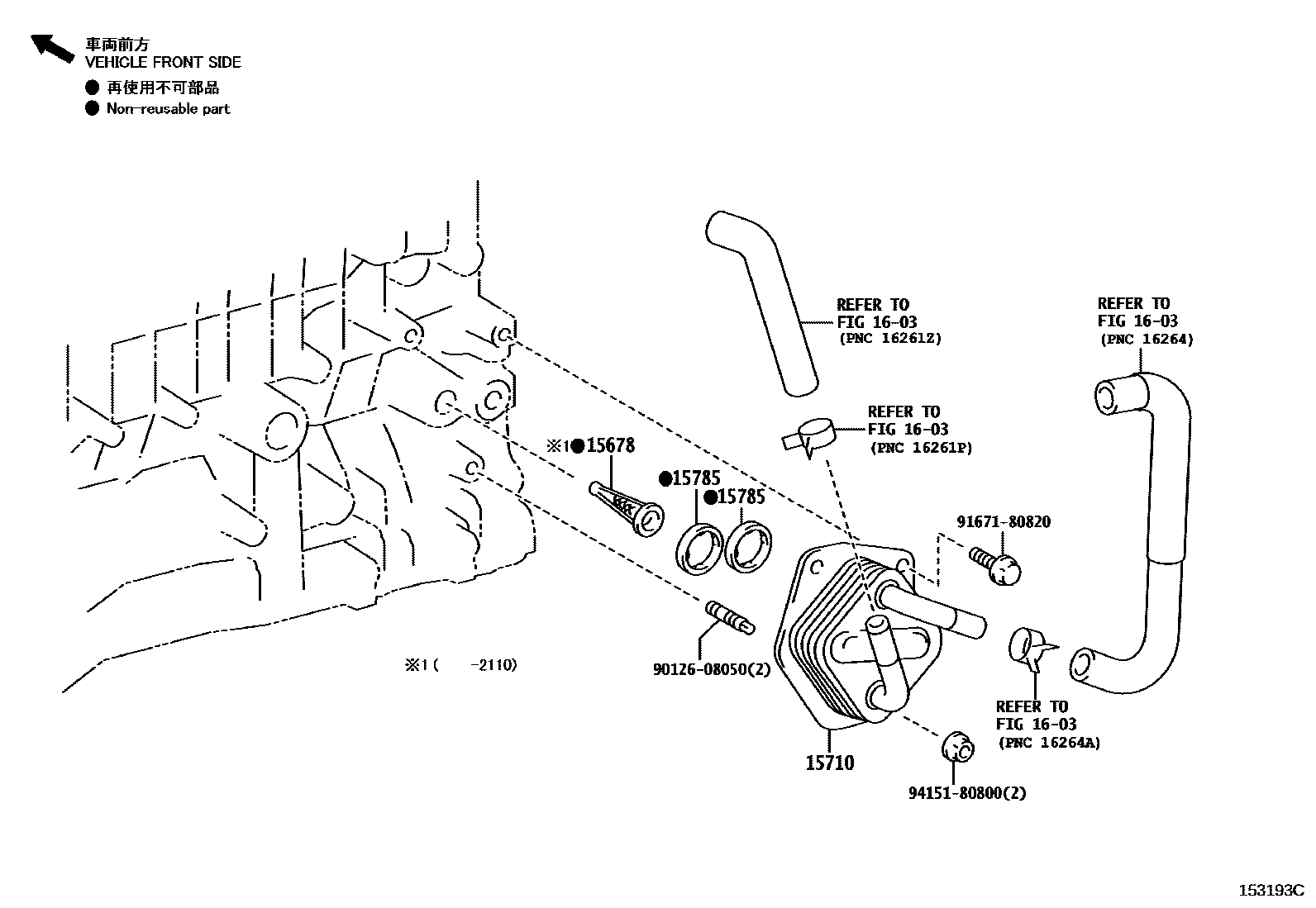

Toyota COROLLA SED (JPP) — ENGINE OIL COOLER

15678FILTER, OIL CONTROL VALVE

main15678-25010iM20AFKS..MZEA12¥600201909-202110

15710COOLER ASSY, OIL

main15710-24010iM20AFKS..MZEA12..D¥26,900201909-202507

15785GASKET, OIL COOLER

main15785-25010iM20AFKS..MZEA12..D¥340201909-202507

1603

9012608050

main90126-08050¥80

9167180820

main91671-80820¥80

9415180800

main94151-80800¥80

7 parts on this diagram · 1 diagram in section
