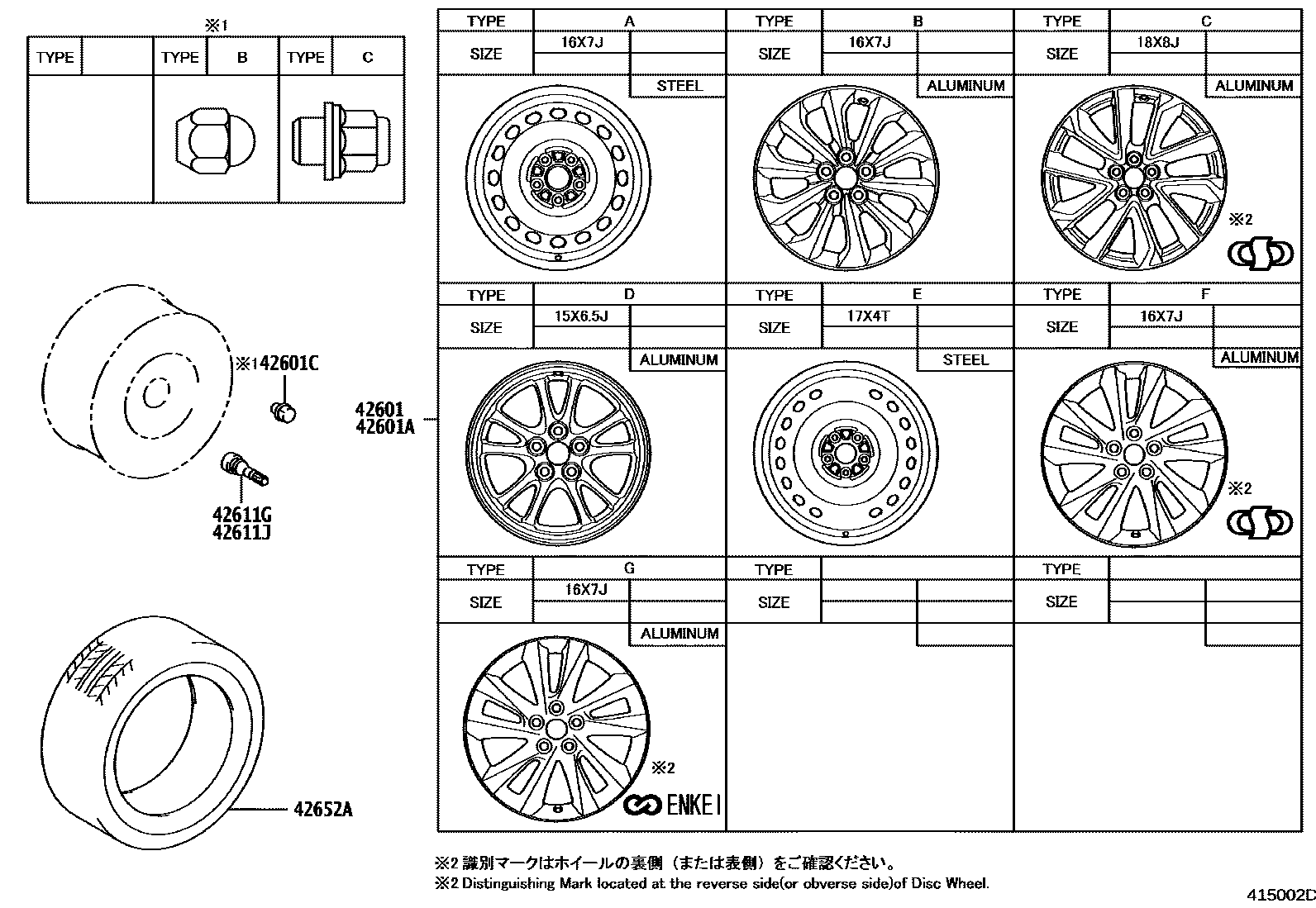

Toyota COROLLA SED (JPP) — DISC WHEEL & WHEEL CAP
42601WHEEL, DISC
16X7J,#,TYPE A:REFER ILLUST.
16X7J,#,TIRE&DISK WHEEL-205/55R16 ALMINUM WHEEL ROUGH ROAD,TYPE B:REFER ILLUST.
16X7J,#,TYPE B:REFER ILLUST.
16X7J,#,TYPE F:REFER ILLUST.
16X7J,#,CENTRAL AMERICA 1 SPEC&TIRE&DISK WHEEL-205/55R16 ALMINUM WHEEL ROUGH ROAD,TYPE F:REFER ILLUST.
16X7J,#,CENTRAL AMERICA 2 SPEC&TIRE&DISK WHEEL-205/55R16 ALMINUM WHEEL ROUGH ROAD,TYPE F:REFER ILLUST.
16X7J,#,TIRE&DISK WHEEL-205/55R16 ALMINUM WHEEL ROUGH ROAD,TYPE F:REFER ILLUST.
16X7J,#,TYPE G:REFER ILLUST.
16X7J,#,CENTRAL AMERICA 1 SPEC&TIRE&DISK WHEEL-205/55R16 ALMINUM WHEEL ROUGH ROAD,TYPE G:REFER ILLUST.
16X7J,#,CENTRAL AMERICA 2 SPEC&TIRE&DISK WHEEL-205/55R16 ALMINUM WHEEL ROUGH ROAD,TYPE G:REFER ILLUST.
16X7J,#,TIRE&DISK WHEEL-205/55R16 ALMINUM WHEEL ROUGH ROAD,TYPE G:REFER ILLUST.
15X6.5J, #,TYPE D:REFER ILLUST.
15X6.5J, #,MAURITIUS SPEC&TIRE&DISK WHEEL-195/65R15 ALMINUM WHEEL ROUGH ROAD&SPARETIRE-GROUND TIRE(ALUMINUM),TYPE D:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
16X7J,#,TYPE A:REFER ILLUST.
16X7J,#,TYPE B:REFER ILLUST.
16X7J,#,SOUTH AFRICA SPEC&SPARE TIRE-GROUND TIRE(ALUMINUM),TYPE F:REFER ILLUST.
16X7J,#,TYPE F:REFER ILLUST.
16X7J,#,TYPE G:REFER ILLUST.
16X7J,#,SOUTH AFRICA SPEC&SPARE TIRE-GROUND TIRE(ALUMINUM),TYPE G:REFER ILLUST.
17X4T,SPARE TIRE-T125/70D17,TYPE E:REFER ILLUST.
17X4T,TYPE E:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
TYPE B:REFER ILLUST.
TIRE&DISK WHEEL-205/55R16 ALMINUM WHEEL ROUGH ROAD,TYPE C:REFER ILLUST.
TYPE C:REFER ILLUST.
42611GVALVE (FOR TUBELESS TIRE)
CENTRAL AMERICA 1 SPEC
CENTRAL AMERICA 2 SPEC
CENTRAL AMERICA 1 SPEC&TIRE&DISK WHEEL-205/55R16 ALMINUM WHEEL ROUGH ROAD
CENTRAL AMERICA 2 SPEC&TIRE&DISK WHEEL-205/55R16 ALMINUM WHEEL ROUGH ROAD
42611JVALVE (FOR TUBELESS TIRE SPARE)
SOUTH AFRICA SPEC&SPARE TIRE-GROUND TIRE(ALUMINUM)
SPARE TIRE-T125/70D17
MAURITIUS SPEC&TIRE&DISK WHEEL-195/65R15 ALMINUM WHEEL ROUGH ROAD&SPARE TIRE-GROUND TIRE(ALUMINUM)
42652ATIRE (FOR SPARE)
T125/70D17 *Y/H
6 parts on this diagram · 3 diagrams in section
