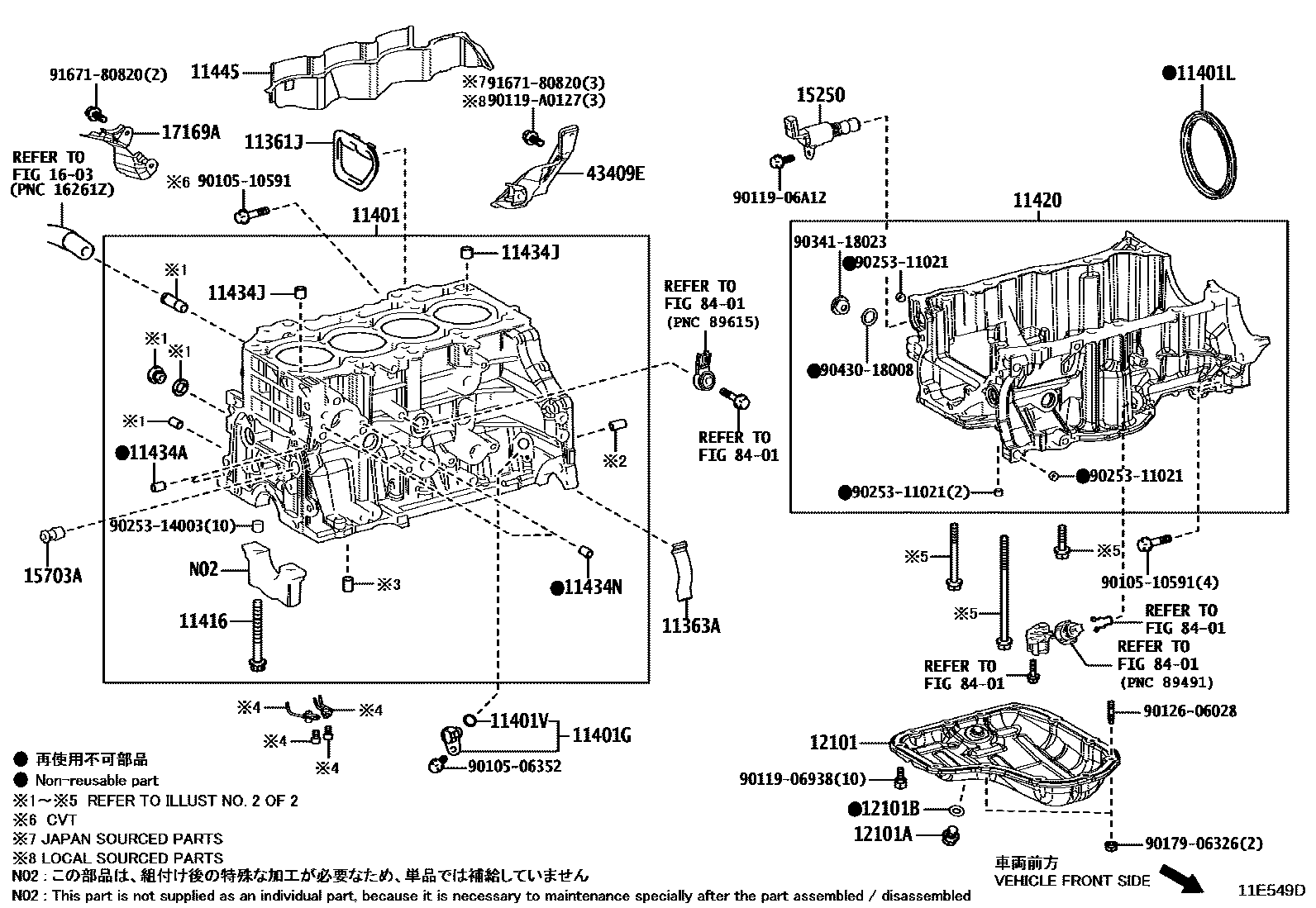

Toyota COROLLA SED (JPP) — CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1 0005 1

11361JCOVER, FLYWHEEL HOUSING UNDER

main11361-21011i2ZRFXE..ZWE21#¥490201901-202208

main11361-25010iM20AFKS..MZEA18;M20AFKS..MZEA12..L¥700201909-202507

11363ACOVER, FLYWHEEL HOUSING SIDE

main11363-33010iM20AFKS..MZEA12¥200201901-202507

11401BLOCK SUB-ASSY, CYLINDER

main11410-09456i2ZRFAE..ZRE212202004-202208

(L)

main11410-29495iM20AFKS..MZEA12201909-202004

sub11410-29496

main11410-29665iM20AFKS..MZEA18..LHD¥139,000202209-202409

main11410-29675iM20AFKS..MZEA12¥139,000202004-202507

main11410-39226i2ZRFXE..ZWE211¥142,000201901-202110

sub11410-39295¥142,000

sub16278-37021¥2,300

sub16281-37071¥600

sub16281-37190¥880

sub16295-37021¥390

sub25601-37050¥14,900

sub25601-37060

main11410-39245i2ZRFAE..ZRE212¥142,000202004-202208

(J)

sub11410-39246¥129,000

main11410-39245i2ZRFAE..ZRE212¥142,000201901-202004

sub11410-39246¥129,000

main11410-39295i2ZRFXE..ZWE219¥142,000202110-202303

sub11410-39296¥129,000

main11410-39296i2ZRFXE..ZWE219¥129,000202303-202409

11401GSENSOR, CRANK POSITION

main90919-05070i2ZR#..ZRE212,ZWE211¥3,870201901-202208

main90919-05091i2ZRFXE..ZWE219¥4,130202209-202409

main90919-05094iM20AFKS..MZEA18..RHD¥4,130202209-202507

main90919-05095iM20AFKS..MZEA12¥4,130201909-202208

11401LSEAL, ENGINE REAR OIL

main90311-78008i2ZR#..ZRE212,ZWE211¥1,510201901-202409

main90311-90010iM20AFKS..MZEA12¥1,390201909-202507

11401VO-RING, CRANK POSITION SENSOR

main90301-11039iM20AFKS..MZEA12..D¥0201909-202507

main90301-14016i2ZR#..ZRE212,ZWE211¥0201901-202208

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02163i2ZR#..ZRE212,ZWE21#¥190201901-202409

main90910-02197iM20AFKS..MZEA12¥240201909-202507

11420CRANKCASE ASSY, STIFFENING

main11420-24010iM20AFKS..MZEA12¥33,400201909-202507

main11420-37010i2ZRFAE..ZRE212¥28,000201901-202208

main11420-37030i2ZRFXE..ZWE21#¥30,800201901-202111

sub11420-37040¥28,000

main11420-37040i2ZRFXE..ZWE21#¥28,000202003-202409

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-04097i2ZRFXE..ZWE219¥50201901-202409

L=12,OD=4.0

main90250-06003iM20AFKS..MZEA18;M20AFKS..MZEA12..L¥90201909-202507

L=14,OD=6

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90253-13001i2ZRFXE..ZWE219¥90201901-202409

main90253-13017iM20AFKS..MZEA12¥140201909-202507

11434NPIN, STRAIGHT(FOR WATER INLET HOUSING)

main90250-06003iM20AFKS..MZEA18;M20AFKS..MZEA12..L¥90201909-202507

11445SPACER, CYLINDER BLOCK WATER JACKET

main11445-24010iM20AFKS..MZEA18..RHD¥2,690201909-202507

main11445-37010i2ZRFXE..ZWE219¥1,830201901-202409

12101PAN SUB-ASSY, OIL

main12102-24010iM20AFKS..MZEA12..D¥6,200201909-202507

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012iM20AFKS..MZEA12;M20AFKS..MZEA18..LHD¥160201901-202507

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i2ZRFXE..ZWE219¥90201901-202507

15250VALVE ASSY, OIL PRESSURE CONTROL

main15250-25010iM20AFKS..MZEA12..D¥3,980201909-202507

15703AVALVE SUB-ASSY, OIL NOZZLE

main15703-25011iM20AFKS..MZEA12¥780201909-202507

1603

17169AINSULATOR, EXHAUST MANIFOLD HEAT, NO.3

main17169-24010iM20AFKS..MZEA18;M20AFKS..MZEA12..L¥1,390201909-202507

43409EINSULATOR SUB-ASSY, DRIVE SHAFT HEAT

main43409-12101iMZEA12¥2,980201909-202001

main43498-12120iMZEA12¥1,670202002-202203

sub43498-12121¥1,510

main43498-12121iMZEA12;MZEA18..LHD¥1,510202204-202507

8401

9010506352

main90105-06352¥60

9010510591

main90105-10591¥120

9011906938

main90119-06938¥60

9011906A12

main90119-06A12¥60

90119A0127

main90119-A0127

9012606028

main90126-06028¥60

9017906326

main90179-06326¥60

9025311021

main90253-11021¥120

9025314003

main90253-14003¥140

9034118023

main90341-18023¥190

9043018008

main90430-18008¥110

9167180820

main91671-80820¥80

33 parts on this diagram · 5 diagrams in section
